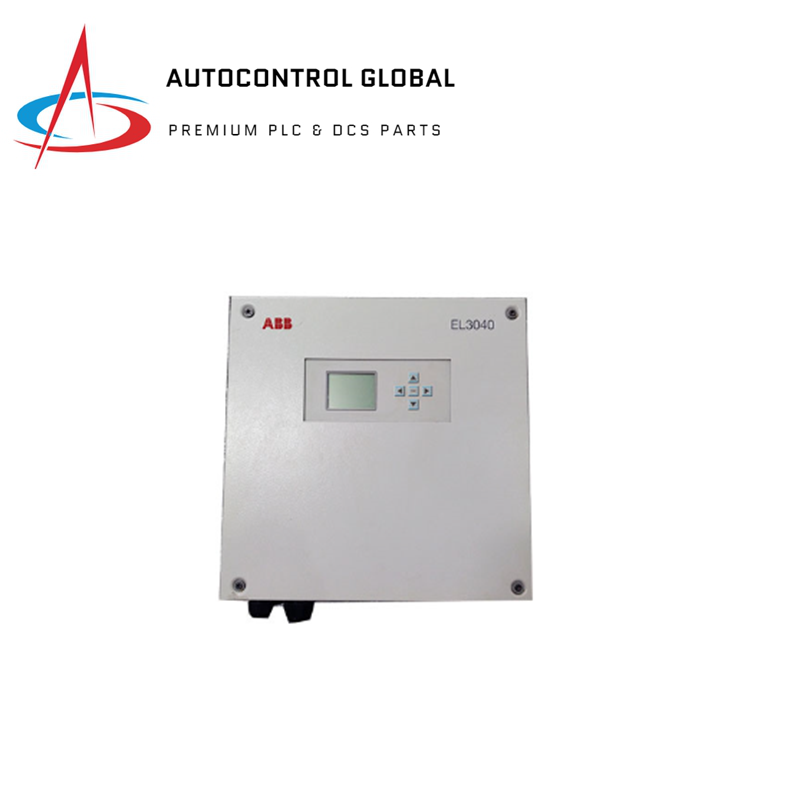

ABB EL3040 EasyLine Continuous Gas Analyzers Models

Description

The EL3040 is engineered for continuous gas analysis across various process and emission monitoring applications. It supports multiple measurement principles and can analyze up to five different gas components simultaneously.

Features

• Measurement Principles: Supports various detectors including:
  • Infrared photometers (e.g., Uras26)
  • Ultraviolet photometers (e.g., Limas23)
  • Oxygen analyzers (e.g., Magnos206)
  • Trace oxygen analyzers (e.g., ZO23)
  • Thermal conductivity analyzers (e.g., Caldos27)
• Customizable Outputs: Provides flexible options for analog outputs, digital inputs, and digital outputs.
• Interfaces: Equipped with Modbus and Profibus interfaces for seamless integration.
• Calibration: Includes automatic calibration with pump and valve control, and simplified calibration with air or integral calibration cells.
• User Interface: Features a simple, menu-driven operator interface with clear-text status messages.
• Self-Monitoring: Contains a self-monitoring function to alert when maintenance is needed.
• Housing: Available in a wall-mountable version.

Specifications

• Measurement Components: Capable of measuring up to five components per gas analyzer.
• Protection Type: Version with protection type II 3G for non-flammable gases.
• Compliance: Performance-tested for emission monitoring per Directive 2001/80/EC and QAL3 monitoring according to EN 14181 (optional).
• Physical Measurement Range: Each analyzer provides one physical measurement range per sample component, configurable on-site for output mapping.
