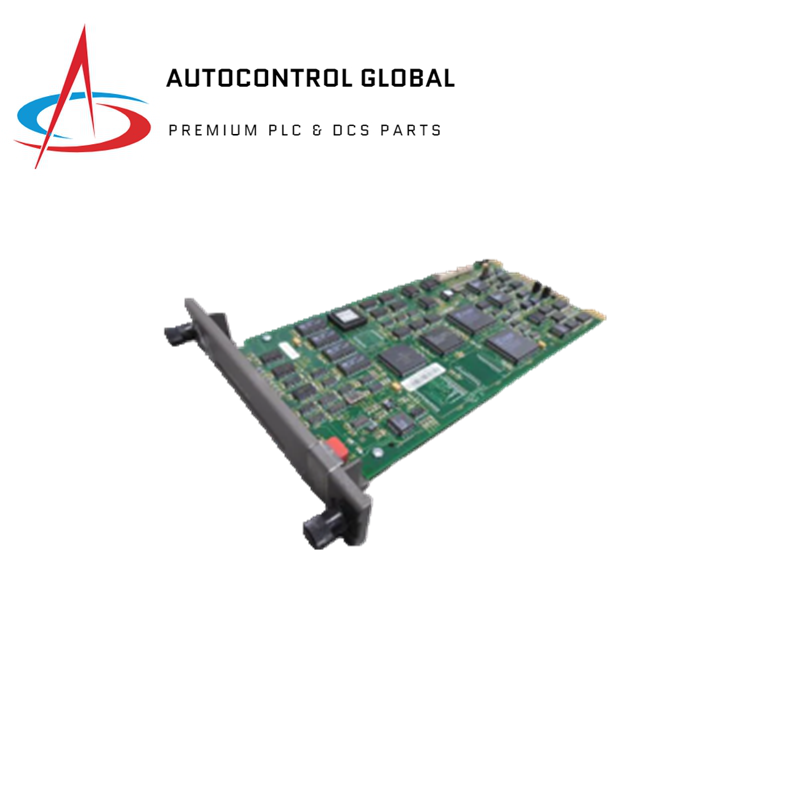

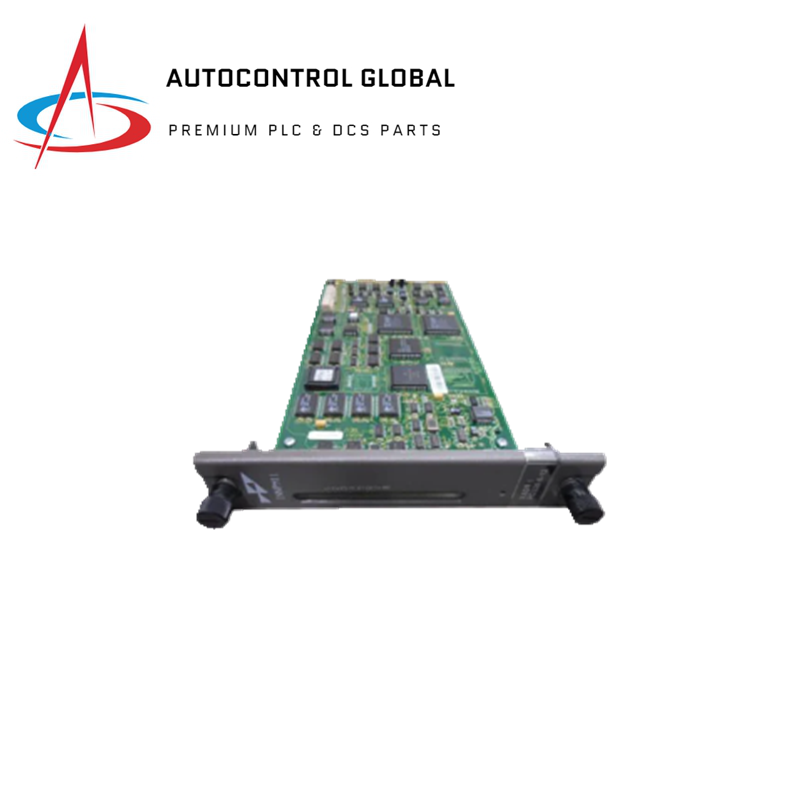

ABB INNPM11 Network Processor Module

Description

The ABB Bailey INNPM11 is a Network Processing Module within the Symphony Enterprise Management and Control System. It provides crucial communication and processing capabilities for control modules in a process control unit.

Key Features and Specifications

• Memory:

  • ROM: 256 kilobytes
  • RAM: 512 kilobytes

• Power Requirements:

  • Operating Voltage: +5 VDC
  • Current: 2 A
  • Power Consumption: 10 W

• Communication Rates:

  • Controlway Communication Rate: 1 Mbaud
  • Module Bus Communication Rate: 83.3 kbaud

• Module Integrity:

  • Designed to ensure reliable operation and maintain module integrity.

• Network Interface:

  • Works with the INNIS01 Network Interface Slave Module
  • Provides access to the INFI-NET® communication system
