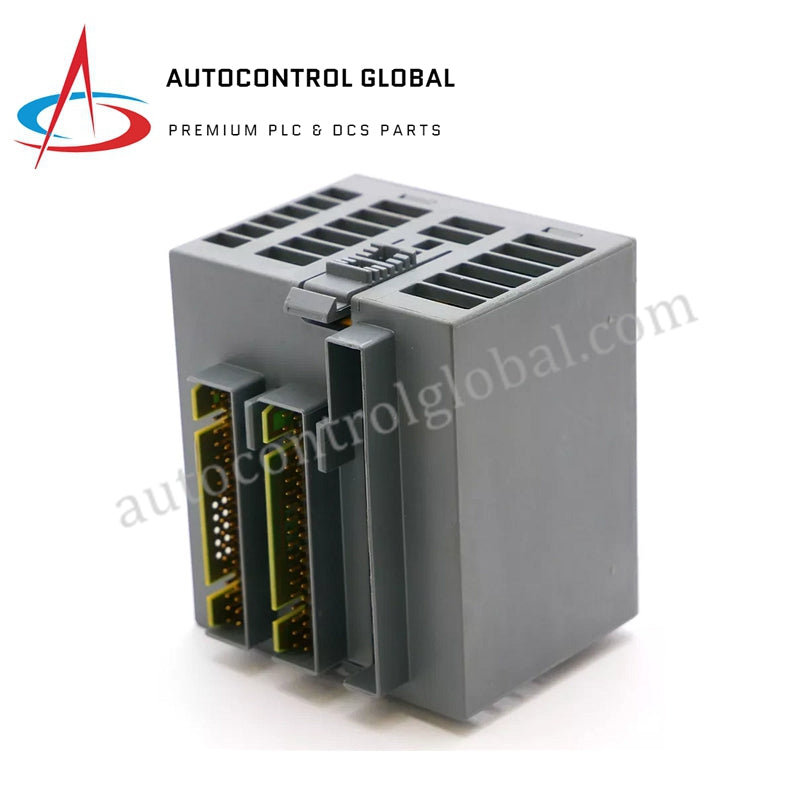

ABB PM583-ETH | AC500 Prog.Log.Controller 1MB

Overview

• Product ID: 1SAP140300R0271
• ABB Type Designation: PM583-ETH

Specifications

• Memory Size (User Data): 1024 kB
• Memory Size (User Program): 1024 kB
• Memory Type (User Data): Flash EPROM
• Memory Type (User Program): Flash EPROM, non-volatile RAM, SD Card
• Maximum Number of Analog I/Os: 160 AI, 160 AO (Local, max. 10 expansion modules)
• Maximum Number of Digital I/Os: 320 DI, 240 DO/DC (Local, max. 10 expansion modules)
• Maximum Operating Altitude: 2000 m
• Degree of Protection: IP20
• Display Type: LCD
• Number of Display Lines: 1
• Number of Function Keys: 8
• Number of LEDs: 3
• Mounting Position: Horizontal, Vertical (with derating)
• Mounting: On DIN Rail TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

Environmental Conditions

• Operation Temperature: 0 ... +60 °C
• Storage Temperature: -40 ... +70 °C

Dimensions

• Product Depth: 72 mm
• Product Height: 76 mm
• Product Length: 62 mm
• Product Width: 67.5 mm
• Product Weight: 0.15 kg

Additional Information

• Programming Software: Automation Builder
• Made To Order: No
• Minimum Order Quantity: 1 piece
• Order Multiple: 1 piece
