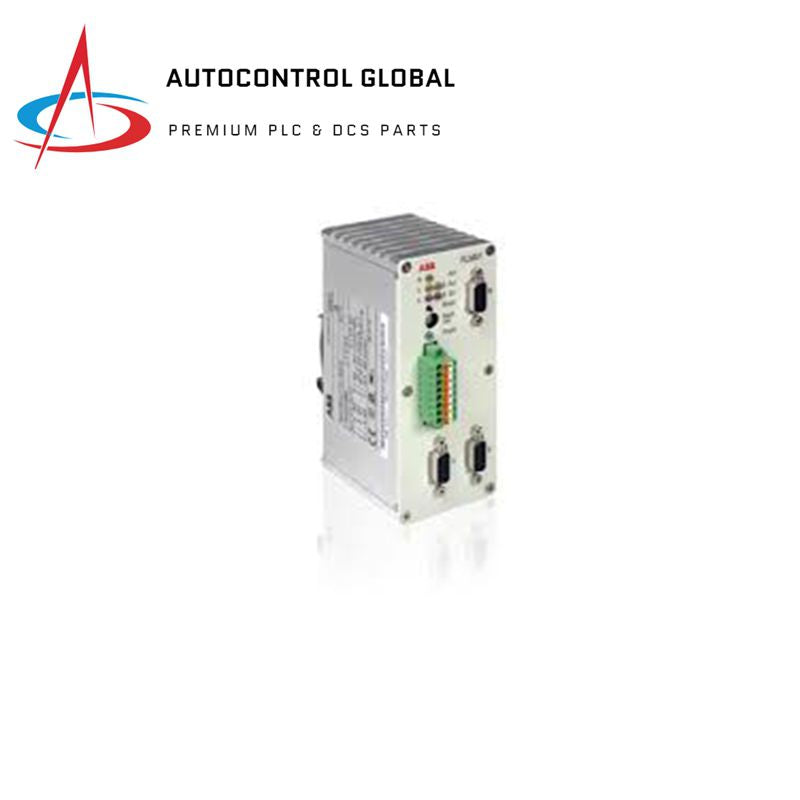

ABB RLM01 PROFIBUS DP/FMS Redundancy Link Module

Description

The ABB RLM01 is a PROFIBUS Redundancy Link Module designed to convert a non-redundant PROFIBUS line into two redundant lines or vice versa.

Features

• Converts non-redundant PROFIBUS lines to redundant lines and vice versa
• Three PROFIBUS ports
• Transparent for PROFIBUS configuration, no slave address required
• Supports transmission rates from 9.6 Kbps to 12 Mbps
• Serves up to 31 PROFIBUS clients, extendable with repeaters (optical-electrical)
• Error signaling via LED on the front plate and a signaling contact
• Diagnostic messages readable at the 8-pin terminal strip
• CE, UL, and CSA certified

Technical Specifications

• Transmission Rates: 9.6 Kbps to 12 Mbps
• PROFIBUS Ports: 3
• Client Capacity: Up to 31 PROFIBUS clients, extendable with repeaters
