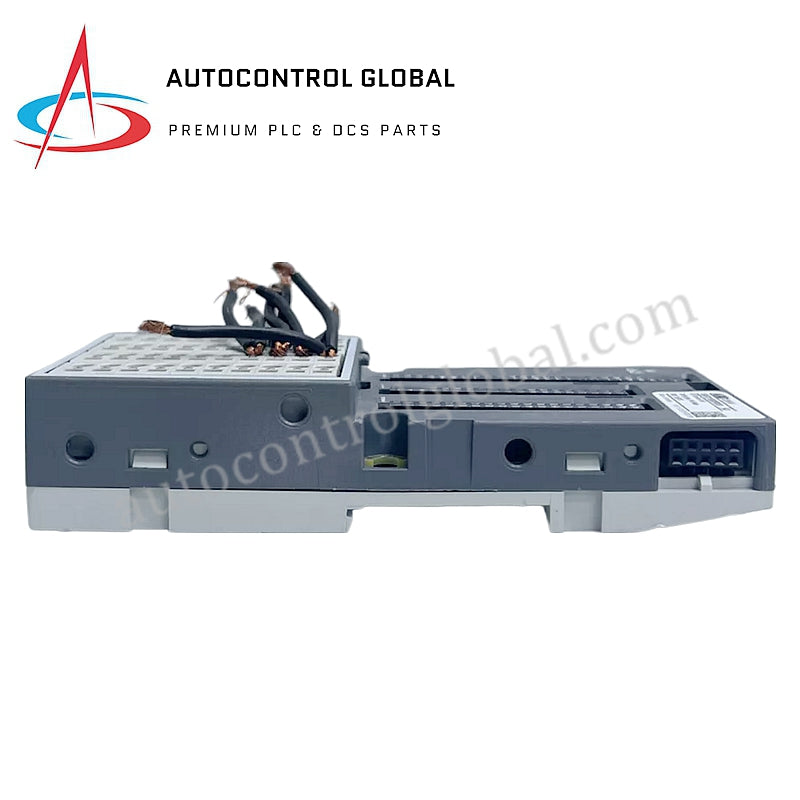

ABB | TU516-H | I/O Terminal Unit

Ordering Data

• Model: TU516-H
• Type: I/O terminal unit, hot swap
• Voltage: 24 VDC
• Terminals: Spring terminals
• Status: Active

Technical Data

• Number of Channels per Module: Max. 32
• Channel Distribution: 4 groups of 8 channels each (1.0...1.7, 2.0...2.7, 3.0...3.7, 4.0...4.7)
• Rated Voltage: 24 VDC
• Max. Permitted Total Current: 10 A (per separated process voltage terminal or internal connection of process voltages)
• Earthing: Direct connection to the earthed DIN rail or via screws with wall mounting
• Screw Terminals: Front terminal, conductor connection vertically with respect to the printed circuit board
• Spring Terminals: Front terminal, conductor connection vertically with respect to the printed circuit board
• Weight: 200 g
• Mounting Position: Horizontal or vertical
