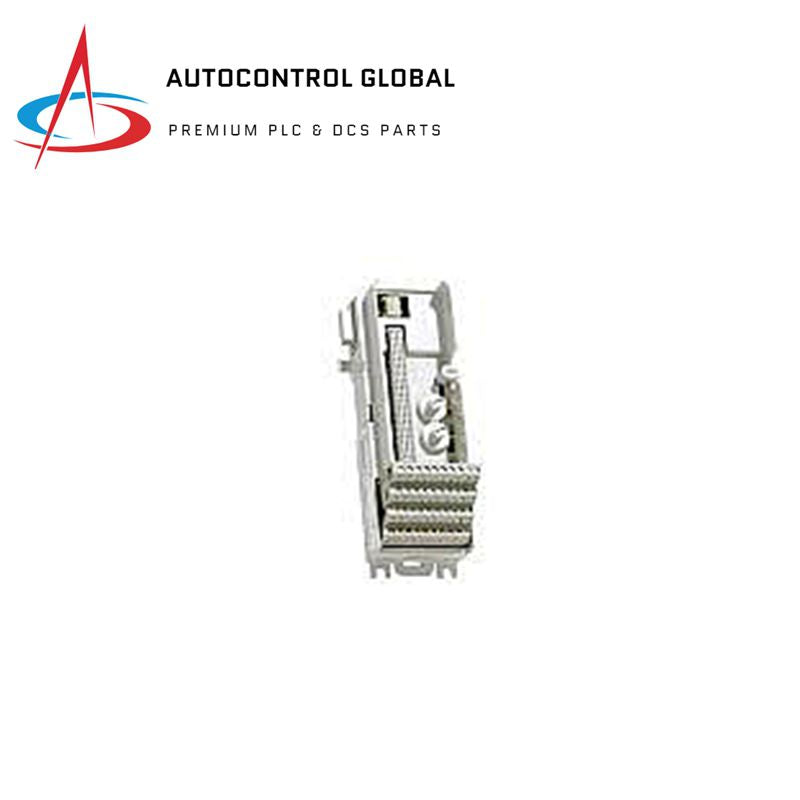

ABB TU818V1 3BSE013232R1 Compact Module Termination Unit

Description

The ABB TU818V1 is a compact module termination unit (MTU) designed for the S800 I/O series. It is a passive unit used for the connection of field wiring to the I/O modules. The MTU also contains a part of the ModuleBus, distributing it to the I/O module and the next MTU. It generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU.

Features

• Compact installation of I/O modules
• Supports one-wire or two-wire connections (depending on I/O module type)
• Up to 32 channels of field signals and process power connections
• Connections to ModuleBus and I/O modules
• Mechanical keying to prevent incorrect I/O module insertion
• Latching device for grounding on DIN rail
• DIN rail mounting

Technical Specifications

• Product Type: Compact Module Termination Unit
• Supply Voltage: 50 V
• Number of Channels: 32
• Mounting: Both horizontal and vertical
• Mounting Detail: Horizontal 55 ºC (131 °F), Vertical 40 ºC (104 °F)
• Use with I/O Modules: AI810, AI815, AI835A, AI843, AI845, AI880A, DI810, DI811, DI818, DI830, DI831, DI840, DI880, DI885, DO818, DP840
• Process Connections: 40 pole screw terminal
• Single/Redundant I/O: Single
