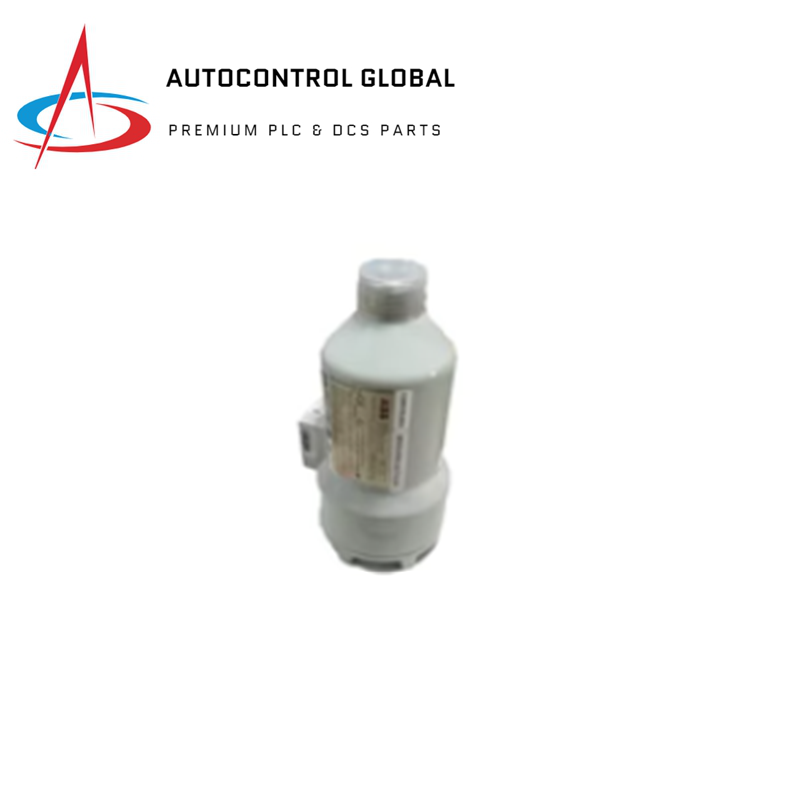

ABB UR600IR Flame Scanner

Key Features and Specifications

• Sensor: PbS (Lead Sulphide)
• Spectrum Sensitivity: 0.6 ÷ 3 μm
• Power Consumption: 300 mW DC supplied by Uvisor series control units
• Ambient Temperature Operating: -10 ÷ 80°C (14 ÷ 176 °F)
• T6 Classified Area: Max. 60°C (140 °F)
• Storage Temperature: -40 ÷ 100°C (-40 ÷ 212 °F)
• Enclosure: IP66 (NEMA 4X)
• Classification: EEx-d IIC T6, ATEX category G-D CE type examination Certificate CESI 03 ATEX 151
• Dimensions: 94 x 94 x 172 mm
• Weight: 1 kg (2.2 lbs)
• Air for Lens Cleaning: From clean ambient
• Minimum Cleaning Air Pressure:
  • Direct view: 20 mm H2O (1" W.C.) above the max wind box pressure measured at the “y” connection inlet
  • Extended probe: 300 mm H2O (12" W.C.) above the max wind box pressure measured at the “y” connection inlet
• Maximum Fiber Optic Continuous Operating Temperature: 350°C (662°F)
• Mounting Connection: 1" NPT male thread
• Cable Entry for Electrical Connection: 1/2" NPT female thread
• Electrical Connections: Standard 4 x 0.55 sq.mm (20 AWG) shielded cable. Recommended max. 300 meters (1000 feet) length. Screw type termination.
• Compatible Amplifier Unit: Uvisor series amplifier
