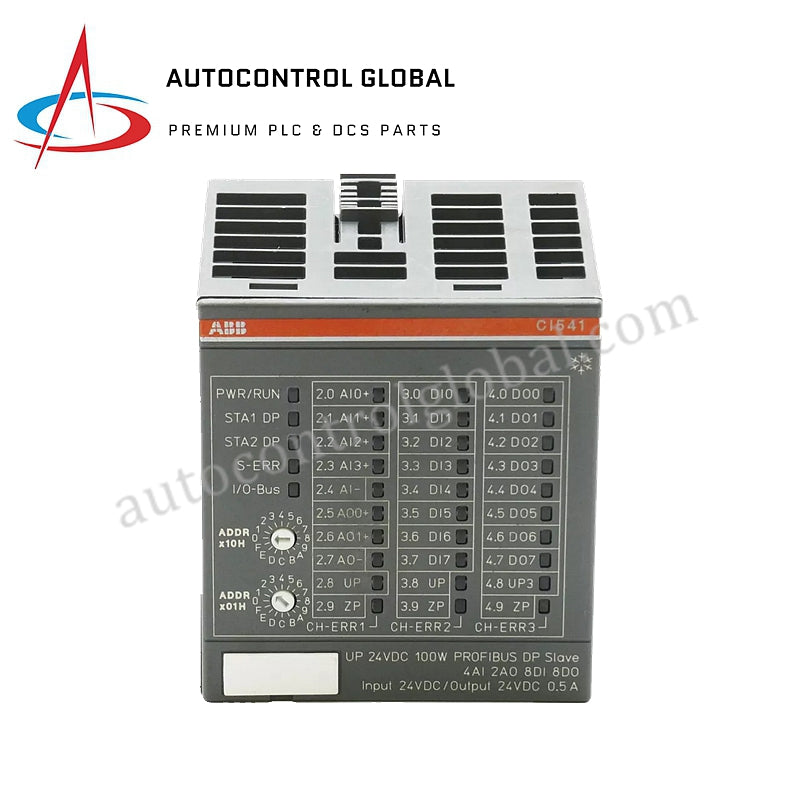

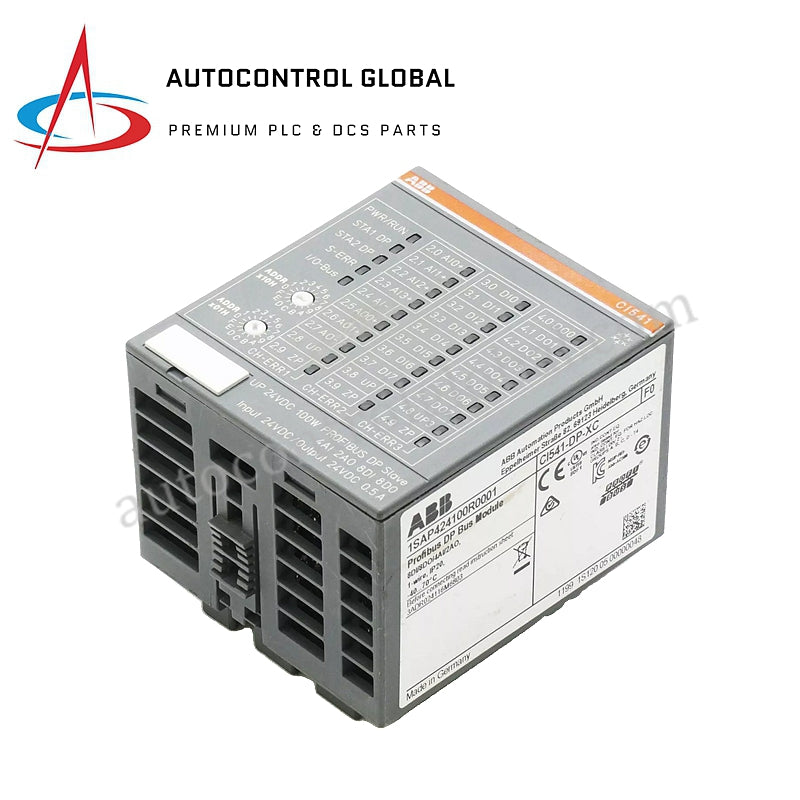

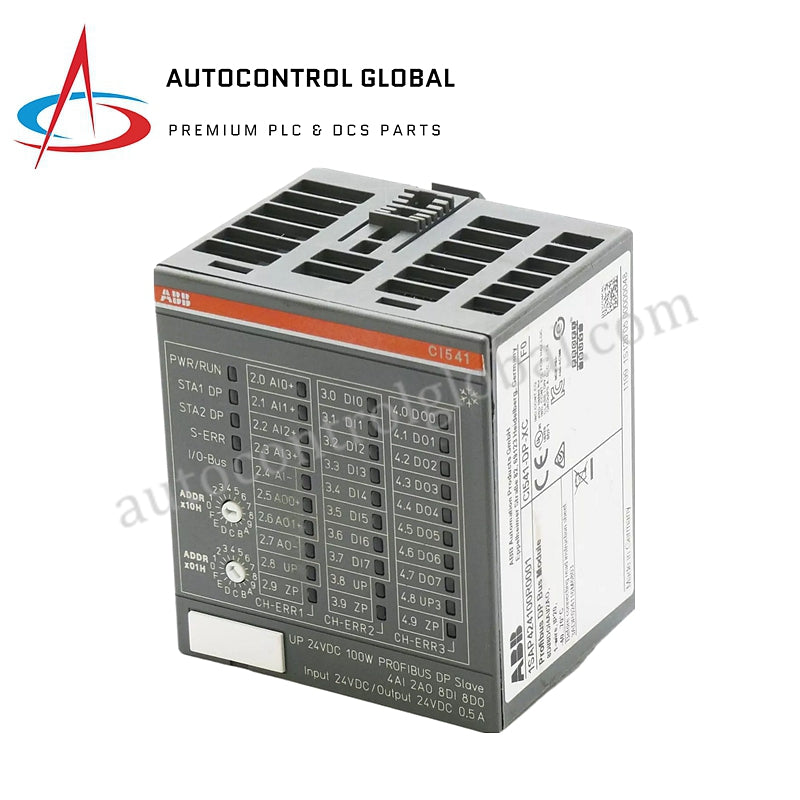

AC500 CI541-DP | ABB PROFIBUS DP Communication Interface Module

Overview

• Product Type: PROFIBUS DP Communication Interface Module
• I/O Channels: 8 Digital Inputs (DI), 8 Digital Outputs (DO), 4 Analog Inputs (AI), 2 Analog Outputs (AO)
• Supply Voltage: 24 V DC (for inputs and outputs)

Electrical & Operational Parameters

• Current Consumption:
  • Via UP (normal operation): 0.2 A
  • Via UP3: 0.06 A + 0.5 A per output (max.)
• Power Dissipation: Max. 10 A (rated protection fuse)
• Max. Load for Terminals: 10 A

Communication & Isolation

• Interface: PROFIBUS DP
• Galvanic Isolation: Between PROFIBUS interface and the rest of the module

Wiring & Connections

• Power Connections:
  • Terminals 2.8 & 3.8 for +24 V (UP)
  • Terminal 4.8 for +24 V (UP3)
  • Terminals 2.9, 3.9, 4.9 for 0 V (ZP)
