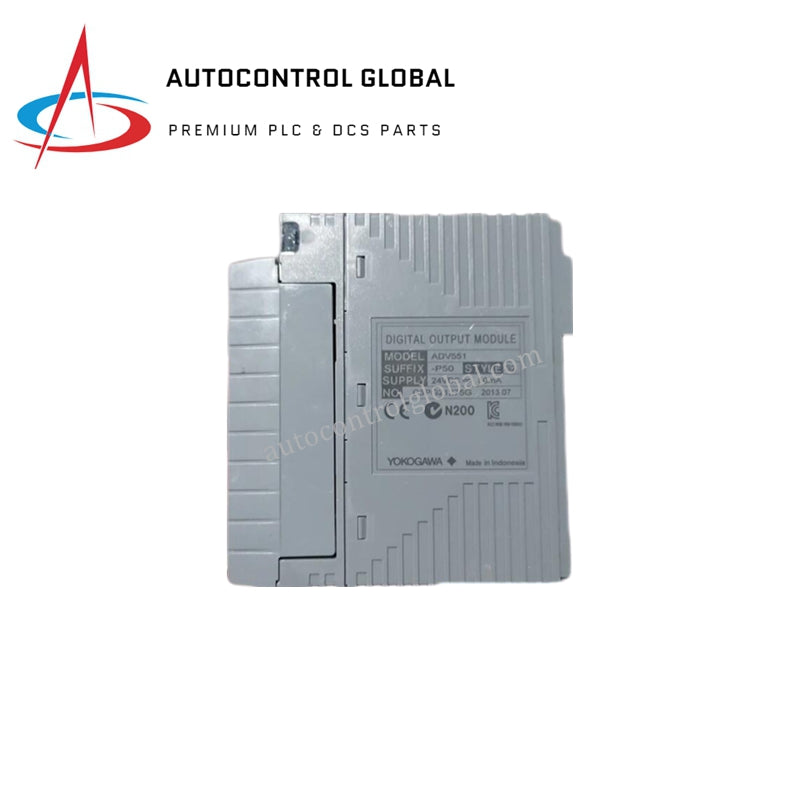

Product Review: Yokogawa ADV551-P50 S2 Digital Output Module

The Yokogawa ADV551-P50 S2 Digital Output Module is a robust and versatile solution for industrial automation applications. This module offers 32-channel output capability for transistor contact signals, compatible with 24 V DC systems and featuring isolation. Users appreciate its reliability and flexibility in managing multiple outputs simultaneously, making it ideal for complex control systems.

Specification:

• Model: ADV551
• Description: Digital Output Module
• Number of Output Channels: 32
• Rated Applied Voltage: 24 V DC
• Load Voltage: 24 V DC, 50 mA
• External Power Supply Voltage Range: 20.4 to 26.4 V DC
• Maximum Load Current: 100 mA per channel, 26.4 V
• Output ON Voltage Maximum Value: 2 V DC
• Leak Current Maximum Value When Output OFF: 0.1 mA
• Output Format: Current sink
• Withstanding Voltage:
  • Between output signal and system: 2 kV AC for 1 minute
  • Between commons: 500 V AC for 1 minute, common minus (-) side every 16-channel
• Output Response Time:
  • ≤ 3 ms for status output
  • ≤ 10 ms for mixed status and pulse outputs
• Pulse Width: 8 ms to 7200 s
• Pulse Width Resolution: 8 ms, with a maximum ON/OFF delay of 1 ms added
• Maximum Current Consumption: 700 mA (5 V DC), 60 mA (external power supply)
• Weight: 0.2 kg
• Suffix Code: ADV551-P50 S2
  • -P50: With pulse width output function/time-proportional output function
  • S2: Specific option code, not detailed in the provided specifications
• Options:
  • /D5A00: With KS Cable Interface Adapter for 32-channel Digital
• External Connection: Supports pressure clamp terminal, dedicated cable (AKB331), and MIL connector cable

Features:

• High Channel Capacity: The module supports up to 32 channels, making it suitable for applications requiring multiple discrete outputs.
• Isolation: Provides electrical isolation between the output signals and the system, enhancing safety and reducing interference.
