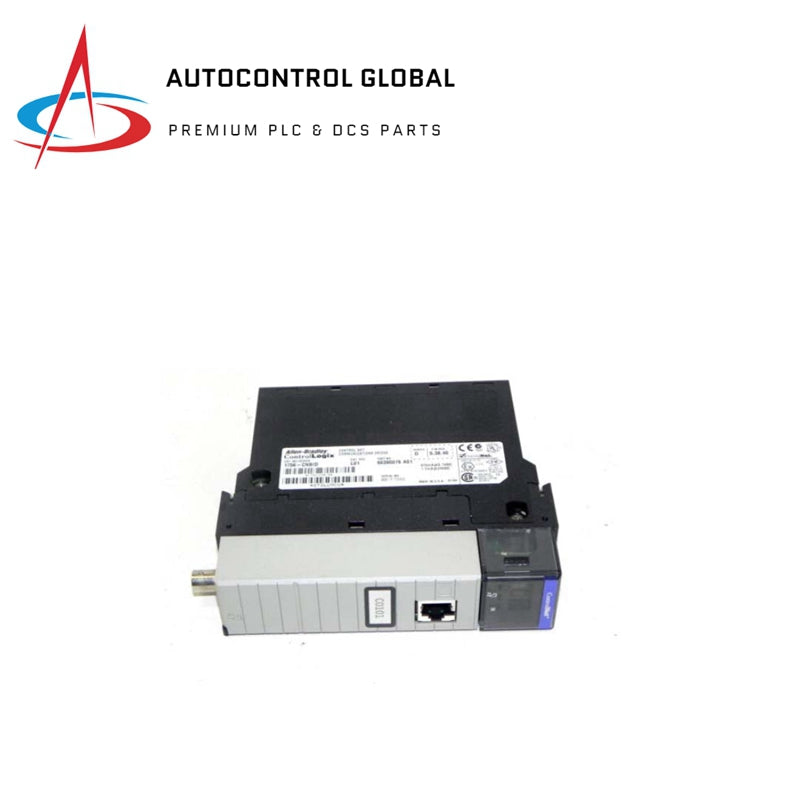

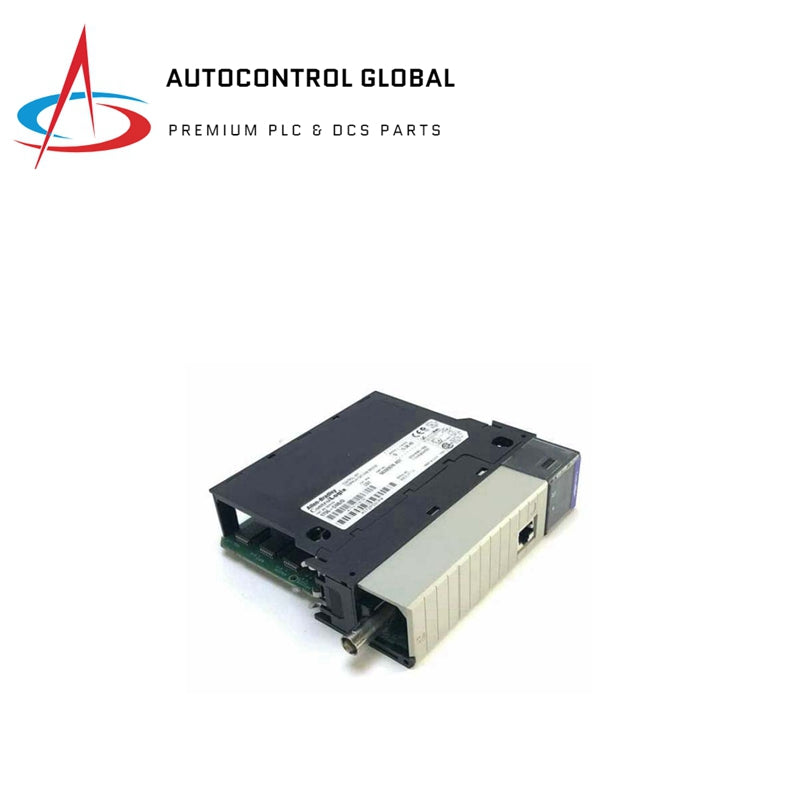

Allen Bradley 1756-CNB ControlLogix ControlNet Bridge Module

Key Features

• Communication Module Type: ControlNet
• Maximum Nodes: Supports up to 99 nodes
• Maximum Connections: Supports a maximum of 64 bidirectional connections with other ControlNet devices
• Unconnected Message Buffers: Up to 20 buffers for unconnected messages
• Data Bridging: Bridges unscheduled data (messaging and programming information)
• Current Draw: 970 mA at 5.1V DC, 1.7 mA at 24V DC
• Power Dissipation: 5.1 W
• Thermal Dissipation: 17.4 BTU/h
• ControlNet Port: 1 ControlNet BNC
• Enclosure Type: None (open-style)
• Operating Temperature: 0 to 60 °C
• Storage Temperature: -40 to 85 °C
