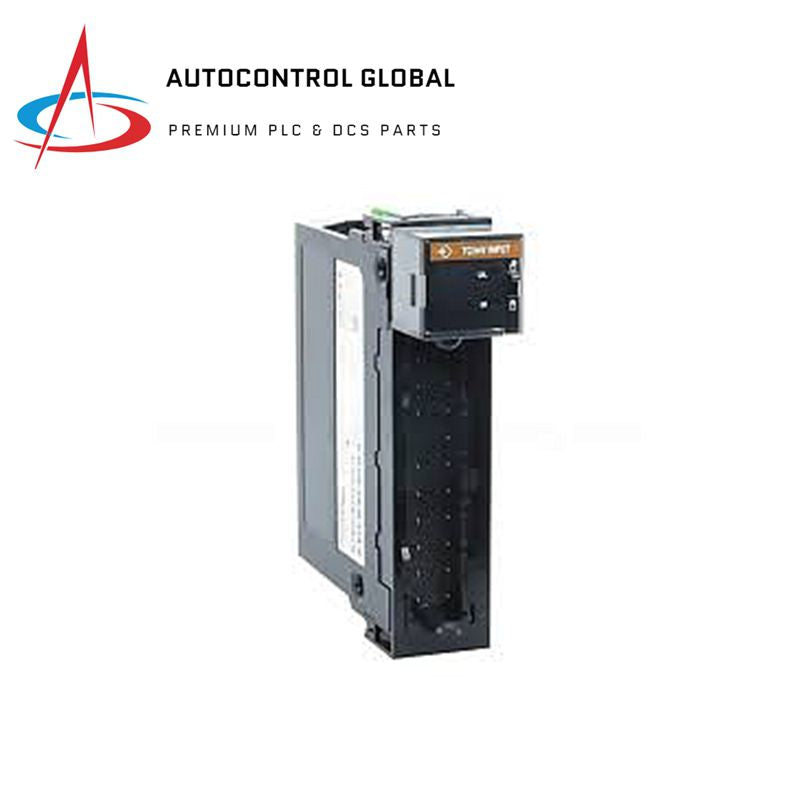

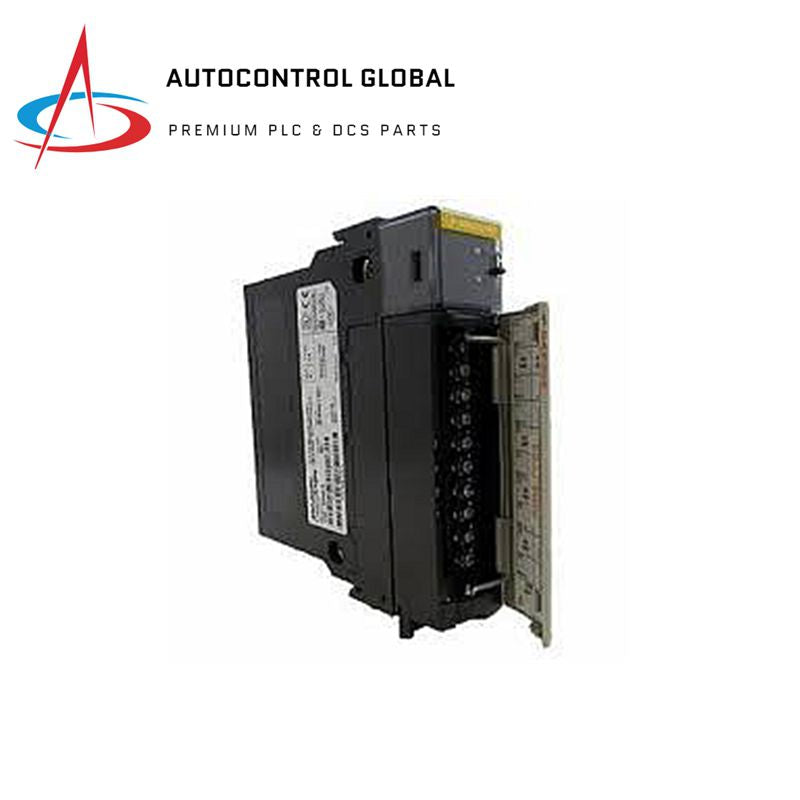

Allen Bradley 1756-IT6I Analog Thermocouple Module

Manufacturer: Allen Bradley
Part Number: 1756-IT6I
Condition：New with Original Package
Product Type: Analog Thermocouple Module
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months

Description

The 1756-IT6I is a ControlLogix analog input module. It features six (6) individually isolated thermocouple and millivolt input channels. Compatible thermocouple types include B, E, J, K, R, S, T, N, C, D, and L (TXK/XK) with 16-bit resolution.

Technical Specifications for 1756-IT6I

Manufacturer: Rockwell Automation
Brand: Allen-Bradley
Part Number/Catalog No.: 1756-IT6I
Series: ControlLogix
Inputs: 6 Isolated Thermocouple, 1 CJC
Module Type: Analog Thermocouple Module
Number of Inputs: Six (6) Point Isolated Thermocouple Inputs
Input Resolution: 16 bits
- -12…78 mV: 1.4 µV/bit (typical)
- -12…30 mV: 0.7 µV/bit (high resolution range)
Input Range:
Backplane Current (24 Volts): 125 milliamps
Module Scan Time:
- 25 ms min floating point (millivolt)
- 50 ms min floating point (temperature)
- 10 ms min integer (millivolt)(1)
Data Format: Integer mode (left justified, 2's complement) IEEE 32-bit floating point
Supported Sensors: B, C, E, J, K, N, R, S, T
Backplane Current (5 Volts): 250 milliamps
Removeable Terminal Blocks: 1756-TBNH, 1756-TBSH
Backplane Current at 24 Volts: 2 milliamperes
Power Dissipation (Max): 4.3 Watts
