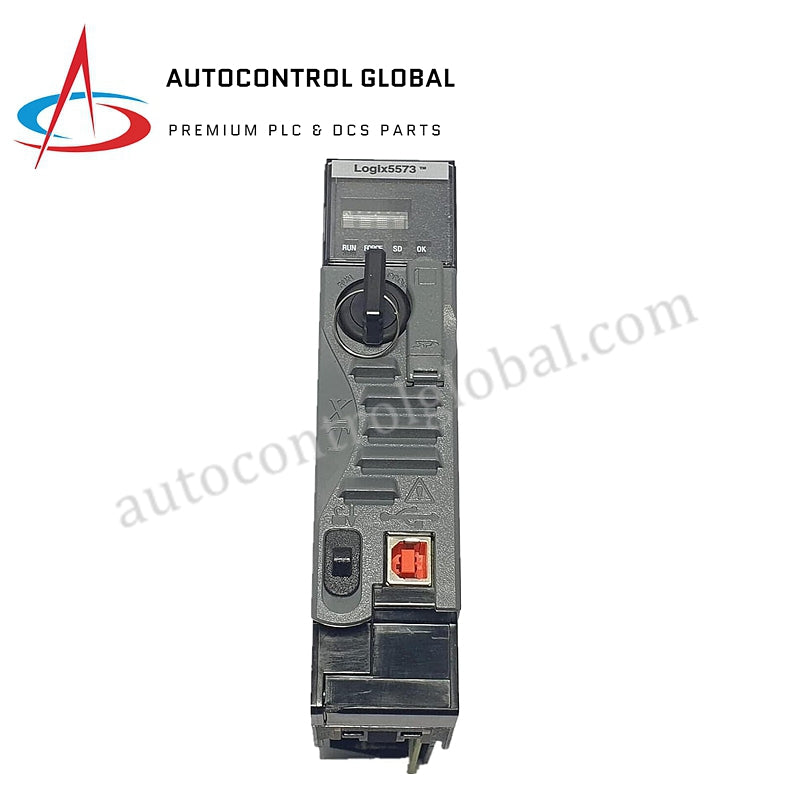

Allen-Bradley 1756-L73XT | Processor Module

Overview

The 1756-L73XT is a processor module from Allen-Bradley’s ControlLogix series, providing efficient performance with significant I/O capabilities.

Key Specifications

• I-O Memory: 0.98 MB
• User Memory: 8 MB
• Maximum I-O: 128,000
• Maximum Analog I-O: 4,000
• Maximum Digital I-O: 128,000

Power and Performance

• Current Draw (1.2V DC): 5 milliamps
• Current Draw (5.1V DC): 800 milliamps
• Power Dissipation: 2.5 Watts
• Thermal Dissipation: 8.5 BTU per hour

Additional Features

• Isolation Voltage: 30 Volts Continuous
• Enclosure: None
