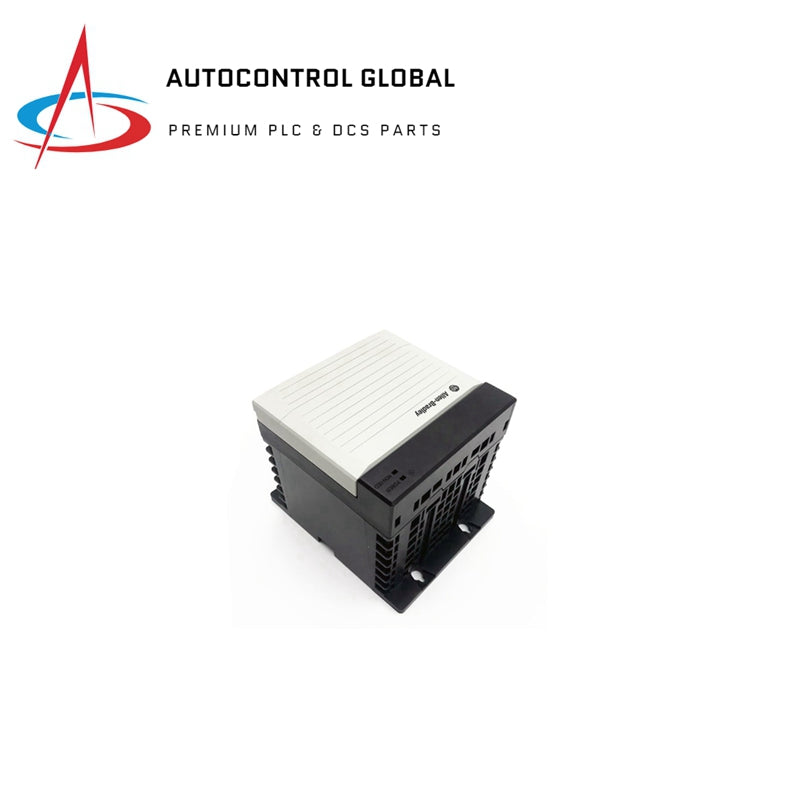

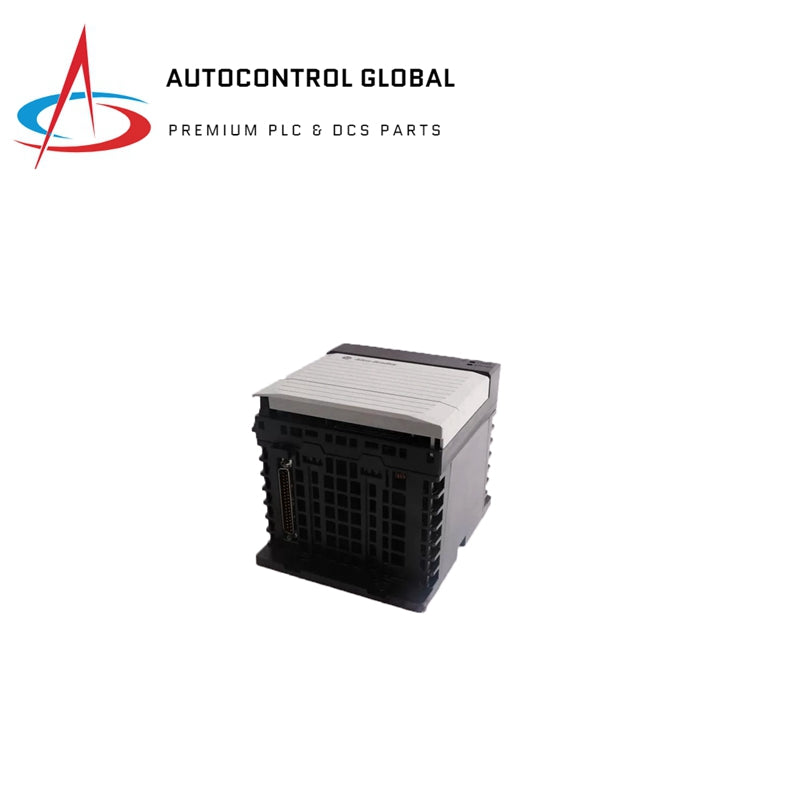

Allen Bradley 1756-PB75R Power Supply Module

Technical Specifications

• Input Voltage Range:18…32V DC
• Input Voltage:24V DC
• Input Power, Max:110 W
• Output Power, Max:75 W @ 0…60 °C (32…140 °F)
• Inrush Current, Max:30 A
• Hold Up Time:20 ms
• Current Capacity:
  • @ 1.2V: 1.5 A
  • @ 3.3V: 4 A
  • @ 5.1V: 13 A
  • @ 24V: 2.8 A
• Annunciator Power:90V DC for ATEX/IECEx
• Isolation Voltage:
• 250V (continuous), Reinforced Insulation Type
  • Power Input to Backplane
  • Power Input to Annunciator
  • Annunciator to Backplane
• Type tested at 3250V DC for 60 s
• Dimensions (HxWxD), Approx:17.5 x 14.5 x 13.7 cm (6.9 x 5.7 x 5.4 in.)
• Weight, Approx:1.45 kg (3.2 lb)
