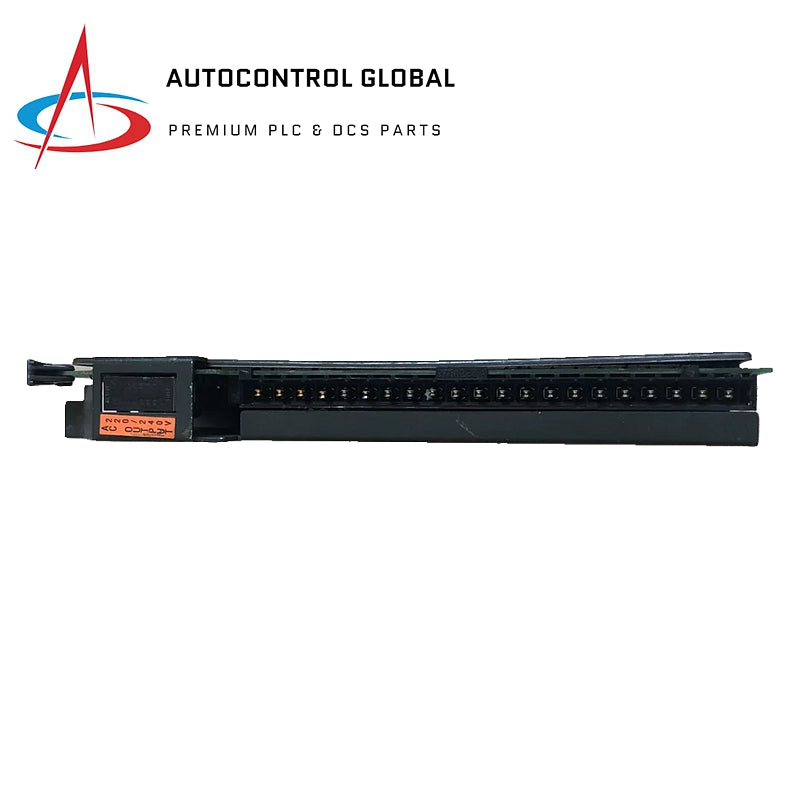

Allen-Bradley | 1771-OMD B | 16-channel Output Module

Description

• Manufacturer: Rockwell Automation
• Part Number: 1771-OMD B
• Product Type: Digital AC Output Module
• Brand: Allen-Bradley
• Series: PLC 5
• Model Status: Earlier Model

Specifications

• Outputs: 16
• Voltage Category: 220 Volts AC
• AC Operating Voltage: 184-250 V
• Output Current per Channel: 2 A
• Max Current per Module: 8 A
• Surge Current per Output: 25 A for 100 ms (repeatable every 1 second)
• Surge Current per Module: 25 A for 100 ms (repeatable every 1 second)
• Backplane Current: 700 mA
• Minimum Load Current per Output: 10 mA at 220V AC (60Hz)
• Voltage Loss in ON State: 1.5 V at 2 A
• Leakage Current (OFF State): 4 mA per output
• Signal Delay:
  • ON State: 10 ms
  • OFF State: 8.3 - 9.1 ms at 60Hz
• Power Dissipation:
  • Minimum: 3.7 W
  • Maximum: 17.3 W
• Thermal Dissipation: 59 BTU/hr

Environmental

• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Humidity: 5% to 95% (non-condensing)

Installation

• Mounting: Rack Mountable (1771 I/O Chassis)
• Wiring Arm: 1771-WH (Standard)
• Screw Torque for Wiring Arm: 7-9 inch-pounds

Additional Information

• Coating: Conformal Coat

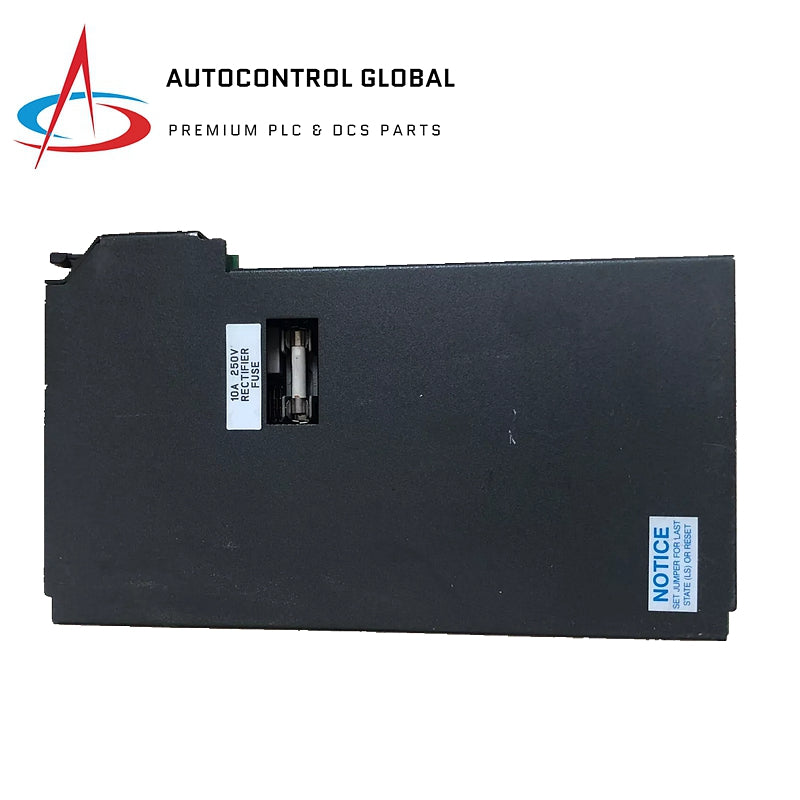

• Fuses: 10A 250V rectifier fuse (1/4 x 1-1/4 inch)
• Voltage Isolation: Meets or exceeds UL and CSA standards
• Field Wiring Requirements: Standard or optional fused wiring arm

Performance

• Signal Delay:
  • ON-State: 10 ms
  • OFF-State: 8.3 to 9.1 ms at 60 Hz
