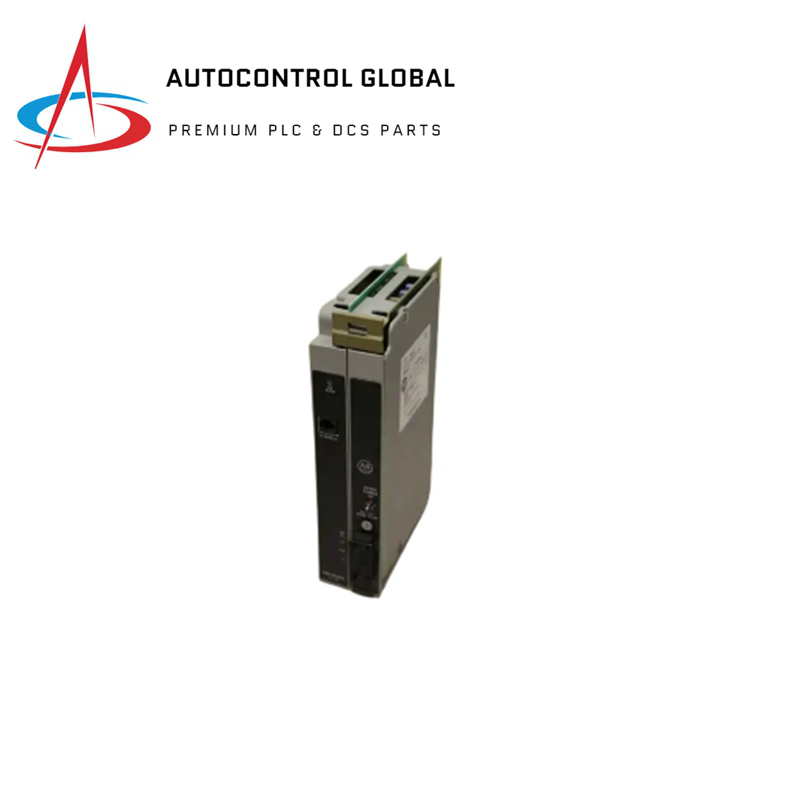

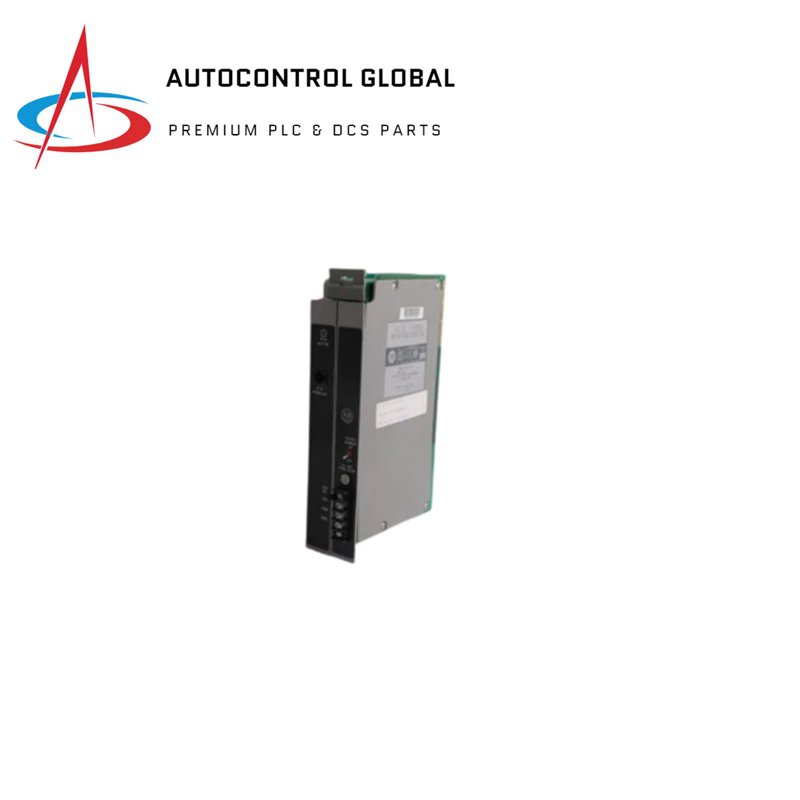

Allen Bradley 1771-P10 Power Supply Module

key Features and Specifications

• Input Voltage
  • Nominal Input Voltage: 125V DC from an external power source
  • Input Power Range: 97 to 145V DC for proper module operation
• Output Current
  • Output Current: Up to 8A at 5V DC supplied to the I/O chassis
  • Real Input Power
  • Maximum Real Input Power: 51W
• Slots
  • Slots Occupied: The 1771-P10 occupies two slots of the 1771 chassis
  • Compatibility
  • Parallel Operation: Designed to operate in parallel only with another 1771-P10 power supply
  • Total Available Backplane Current: 16A with two 1771-P10 power supplies in parallel

• Soft-start
  • The module includes a controlled “soft-start” feature to enhance power supply reliability
