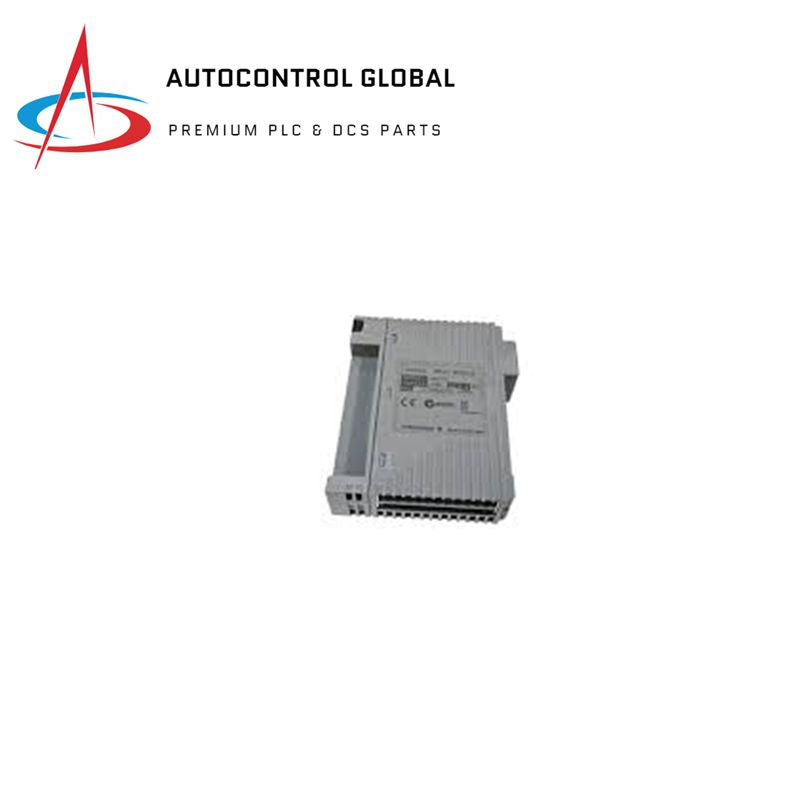

ALR121-SE1 | Yokogawa | Serial Communication Module

  • Manufacturer: Yokogawa

  • Part Number: ALR121-SE1

  • Condition：New with Original Package

  • Product Type: Serial Communication Module

  • Country of Origin: Japan

  • Payment:T/T, Western Union

  • Shipping port: Xiamen

  • Warranty: 12 months

YOKOGAWA ALR121-SE1 Serial Communication Module:

Key Features

  • Interface: RS-422/RS-485
  • Connection Method: Point-to-point (RS-422), Multipoint (RS-485)
  • Communication Function: Half-duplex
  • Synchronization Method: Start-stop synchronization
  • Transmission Speed: 1200/2400/4800/9600/19200/38400 bps
  • Transmission Code: ASCII/binary
  • Character Length: 7/8 bits
  • Stop Bit Length: 1/2 bits
  • Parity Check: None/even/odd
  • Lag Time After Data Transmission: 1 ms
  • Transmission Distance: Maximum 15 m (RS-422), maximum 1200 m (total extended length) (RS-485)
  • Installation Method: Mounted on ANB10, ANR10, AFF50, AFV10, AFV30, or AFV40
  • I/O Wiring: AKB131, AKB132, AKB133, AKB134 cables, etc. Cable with 3-pair shield, AKB161 or AKB162
  • Wiring Connection: D-sub 9-pin (female x 2)
  • Current Consumption: 0.5A
  • Weight: 0.3 kg
