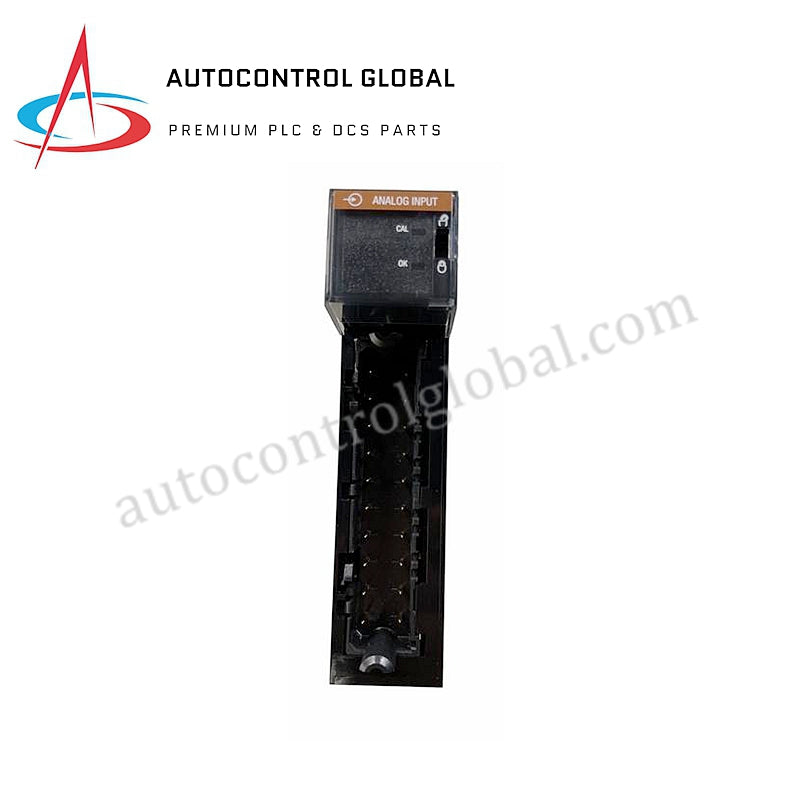

Analog Input Module 1756-IF6I Allen-Bradley

Description

The 1756-IF6I is an Analog Input Module from Allen-Bradley, part of the ControlLogix series. It provides 6 isolated analog input points, making it ideal for precise signal measurement in industrial control systems.

Key Features

• Module Type: Analog Input

• Number of Inputs: 6 Points, Isolated

• Conversion Method: Sigma-Delta

• Data Format: Integer mode (left justified, 2s complement) IEEE 32-bit floating point

Electrical Specifications

• Input Signal Range:

• ±10.5V

• 0–10.5V

• 0–5.25V

• 0–21 mA

• Input Resolution:

• 10.5V: 343 µV/bit

• 0–10.5V: 171 µV/bit

• 0–5.25V: 86 µV/bit

• 0–21 mA: 0.34 µA/bit

• Backplane Current (5V): 250 mA

• Backplane Current (24V): 100 mA

• Power Dissipation (Max):

• Voltage: 3.7 W

• Current: 4.3 W

Environmental Conditions

• Operating Temperature: -40°C to +60°C (-40°F to +140°F)
