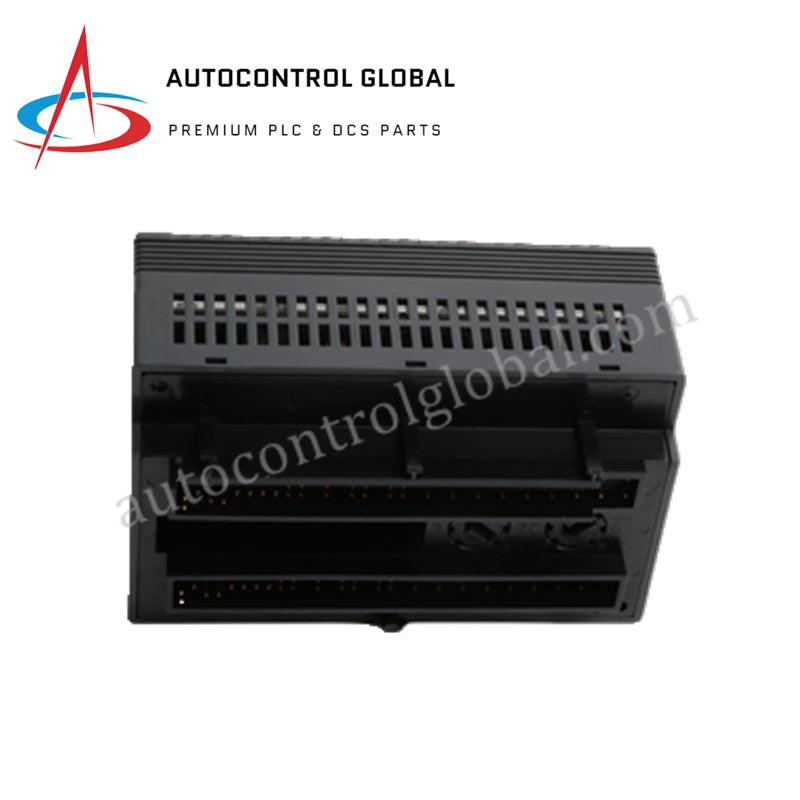

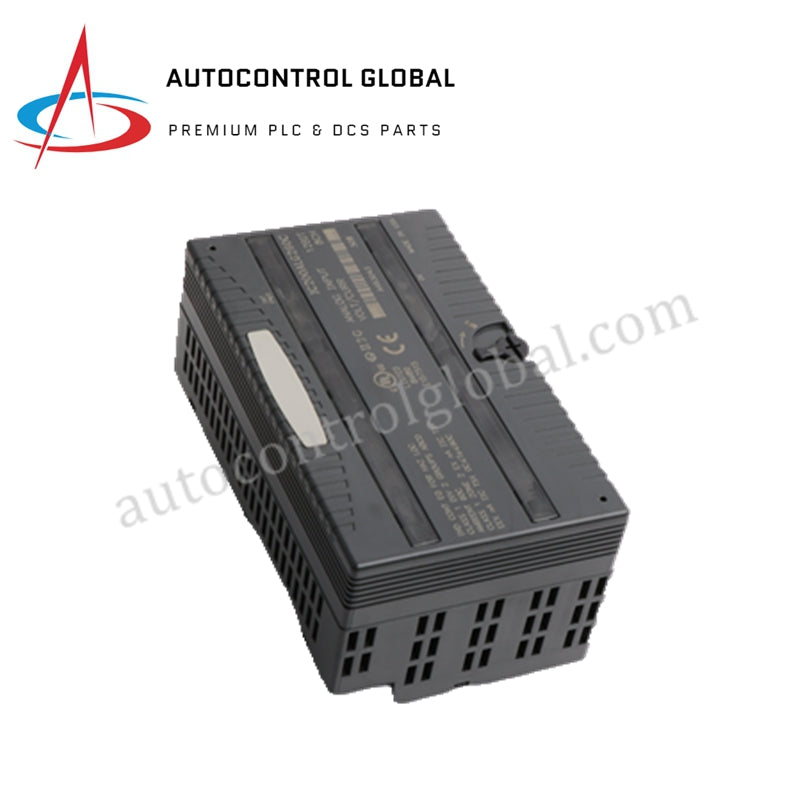

Analog Input Module IC200ALG260C GE Fanuc

Description

The IC200ALG260C is an analog input module from GE Fanuc's Versamax series. It is designed to process and manage analog input signals efficiently in industrial automation applications.

Technical Specifications

• Part Number: IC200ALG260

• Series: Versamax

• Product Type: Analog Input Module

• Product Description: Analog input module

Input and Channel Details

• Number of Inputs: 8

• Number of Channels: Eight (8) analog input channels

• Input Type: Single-Ended

• Analog Input Resolution: 12 bits

Operating and Performance Specifications

• Voltage Type: Unipolar or Bipolar

• Response Times: 5.0 ms

• Update Rate: 0.4 ms

• Operating Modes: Voltage or Current

• Filter Response Time: 5 milliseconds

• Backplane Current Consumption: 125 mA at 5VDC

Features and Indicators

• LED Indicators:

  • "OK" LED

  • "INT PWR" LED

Configuration and Diagnostics

• Configuration Parameters: Range select, Mode select

• Diagnostics: Detects loss of internal power

• Reaction to Module Error:

  • Holds the last state

  • Goes to a pre-defined value

Isolation and Safety

• Optical Isolation:

  • 250 VAC continuous

  • 1500 VAC for 1 minute
