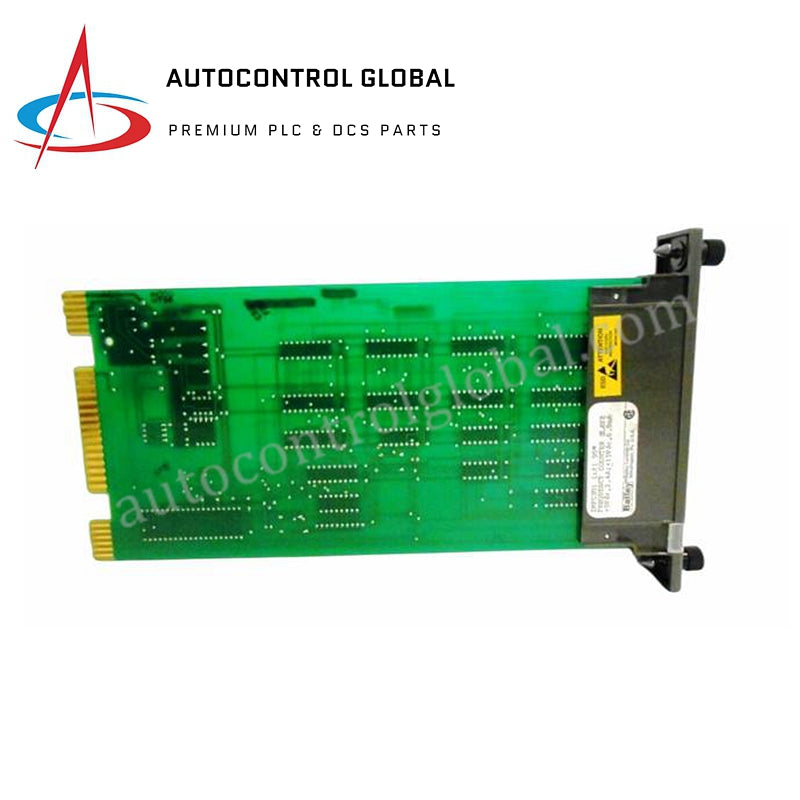

Bailey IMFCS01 ABB Frequency Counter Slave

Description

The Bailey IMFCS01 Frequency Counter Slave Module is a single-channel frequency input designed for use with the Multi-Function Processor (MFP), Multi-Function Controller (MFC), and Hydraulic Servo Slave (HSS) modules. It connects steam or gas turbines to the MFP or MFC, providing accurate frequency count and time period data. The module enables turbine speed calculations and speed control through the HSS.

Technical Specifications

• Microprocessor: MC68701 with 2 KB EPROM, 128 bytes RAM, and 16-bit internal timer
• Process I/O: 1 frequency input (via termination unit)
• System Communications: 8-bit parallel

Operating Parameters

• Input Voltage Range: 300 mVp-p to 120 Vrms (150 mVp to 170 Vp)
• Input Frequency Response: 1 Hz to 12.5 kHz
• Accuracy:
  • ±0.25 Hz (1 Hz to 5 kHz)
  • ±0.50 Hz (5 kHz to 10 kHz)
  • ±0.63 Hz (10 kHz to 12.5 kHz)
• Resolution: 24 bits
• Time Base Frequency: 1 MHz
• Time Base Accuracy: 0.005% ±1 of time base
