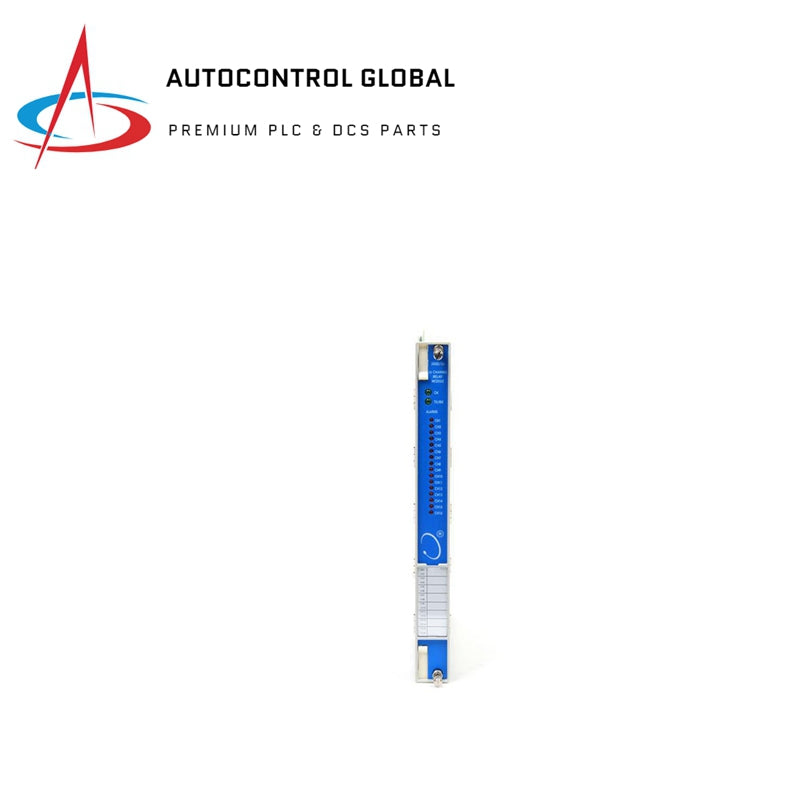

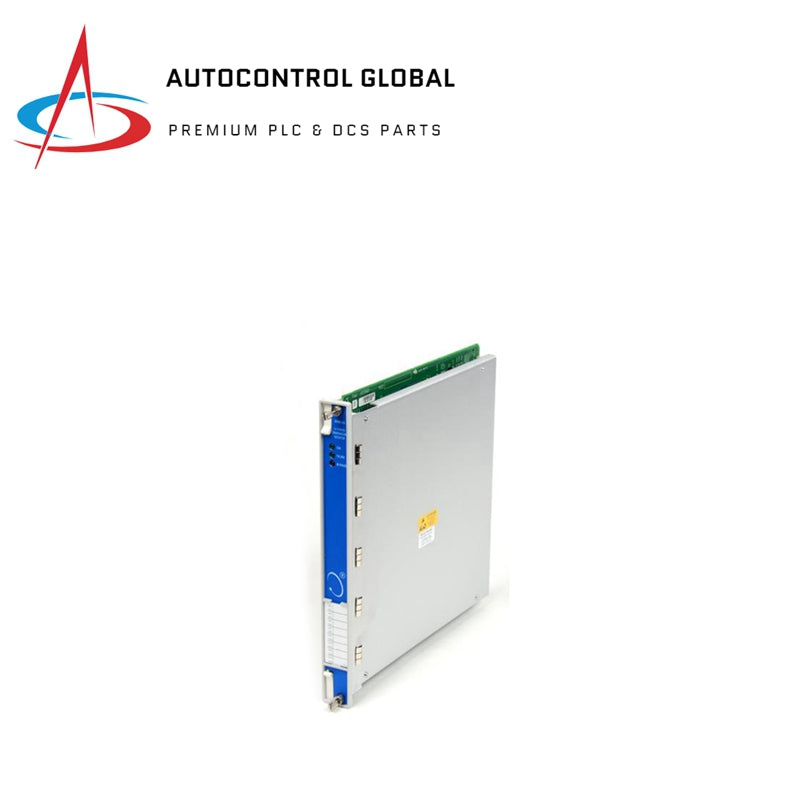

Bently Nevada 3500/45 140072-04 Position Monitor Module

Features

• Functionality:
  • Monitors the position of rotating shafts and other moving parts.
  • Works with proximity probes and magnetic pickups for versatility.
• Protection:
  • Provides crucial data for preventing equipment failures.
  • Enables proactive maintenance strategies to extend machine lifespan.
• Operational Efficiency:
  • Four independent channels handle multiple monitoring points simultaneously.
  • Configurable for various applications like shaft position, axial movement, and valve stem tracking.

Technical Specifications

• Voltage Range: 0 to +12 Vdc range across load
• Load Resistance: 0 to 600 Ω
• Resolution: 0.3662 µA per bit
• Error:
  • ±0.25% error at room temperature
  • ±0.7% error over temperature range
• Update Rate: 100 ms or less
• Place of Origin: United States of America
