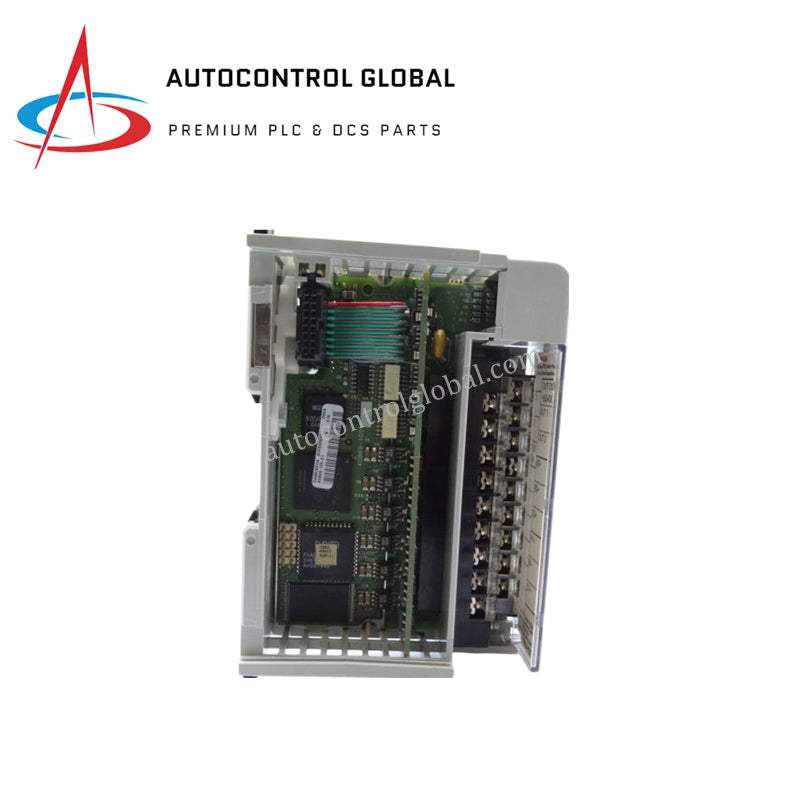

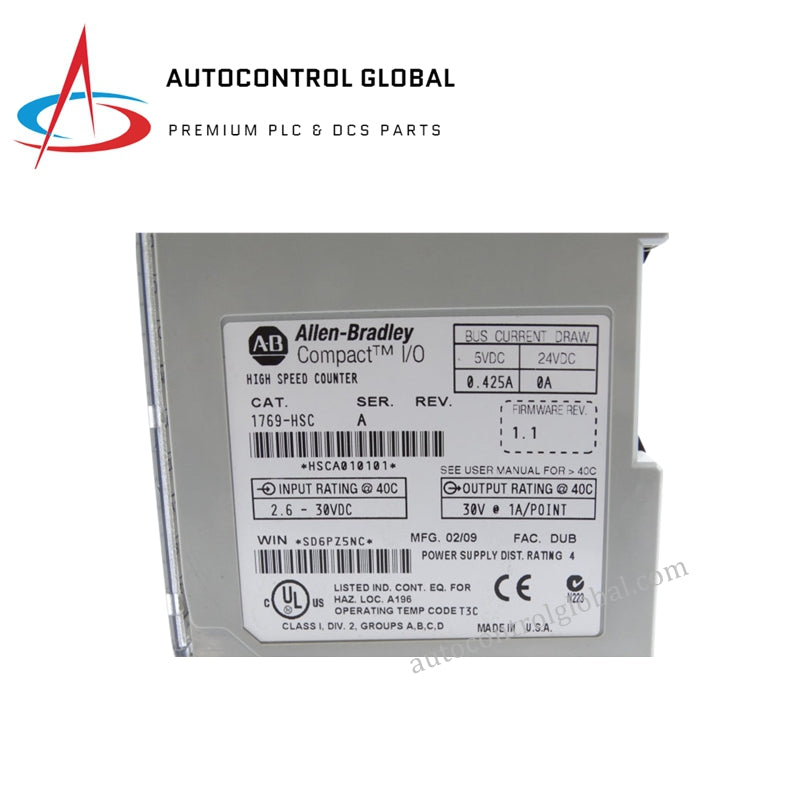

Allen-Bradley 1769-HSC CompactLogix High-Speed Counter Module

Product Overview

The Allen-Bradley 1769-HSC is a versatile, high-performance high-speed counter module designed for precise counting, measurement, and motion control in industrial applications. It supports high-speed operations and integrates seamlessly with CompactLogix and MicroLogix 1500 controllers, making it ideal for environments that demand fast and accurate signal processing. The module's robust performance and compatibility make it suitable for a wide range of automation tasks requiring reliable and efficient counting mechanisms .

Specifications

• General

  • Catalog Number: 1769-HSC
  • Type: High-Speed Counter Module
  • Compatibility: CompactLogix and MicroLogix 1500 controllers

• Input Specifications

  • Number of Inputs: 4
  • Frequency Range: Up to 1 MHz
  • Voltage Range: 5V to 24V DC
  • Input Signal Types: Single-ended or differential

• Output Specifications

  • Number of Outputs: 2
  • Output Type: Sourcing outputs (24V DC)
  • Output Current Rating: 0.5 A per channel

• Power Requirements

  • Voltage Supply:
    • 5 V DC (from the CompactLogix backplane)
    • External 24V DC for field devices
  • Current Draw:
    • 5 V DC: 140 mA
    • 24 V DC: 50 mA

• Performance

  • Counting Modes: Up/Down Counting, Frequency Measurement, Pulse Width Measurement, Quadrature Counting
  • Resolution: 32-bit

• Environmental Specifications

  • Operating Temperature: 0°C to +60°C (+32°F to +140°F)
  • Storage Temperature: -40°C to +85°C (-40°F to +185°F)
  • Humidity: 5% to 95% (non-condensing)
  • Shock and Vibration: Meets IEC 60068-2-6 and IEC 60068-2-27 standards

• Physical Specifications

  • Dimensions: 118 x 87 x 35 mm (4.65 x 3.43 x 1.38 in)
  • Weight: 280 g (0.62 lbs)
  • Mounting: DIN rail or panel mount

• Certifications

  • Safety Standards: UL, CE, CSA
  • Hazardous Location Rating: Class I, Division 2

Features

• High-Speed Operations: Capable of handling frequencies up to 1 MHz, ensuring rapid and precise signal processing.
• Flexible Input Options: Supports both single-ended and differential input signals within a voltage range of 5V to 24V DC.
• Versatile Output Capabilities: Equipped with two sourcing outputs rated at 0.5A per channel for driving external devices.
• Advanced Counting Modes: Offers multiple counting modes including Up/Down Counting, Frequency Measurement, Pulse Width Measurement, and Quadrature Counting, providing flexibility for various applications.
• Robust Environmental Resistance: Designed to operate reliably across a wide temperature range and withstand challenging environmental conditions, including shock and vibration.
• Compact Design: Small footprint allows for easy integration into existing systems via DIN rail or panel mounting.
• Comprehensive Safety Certifications: Certified to meet international safety standards such as UL, CE, and CSA, along with a Class I, Division 2 hazardous location rating for safe use in potentially explosive environments.
