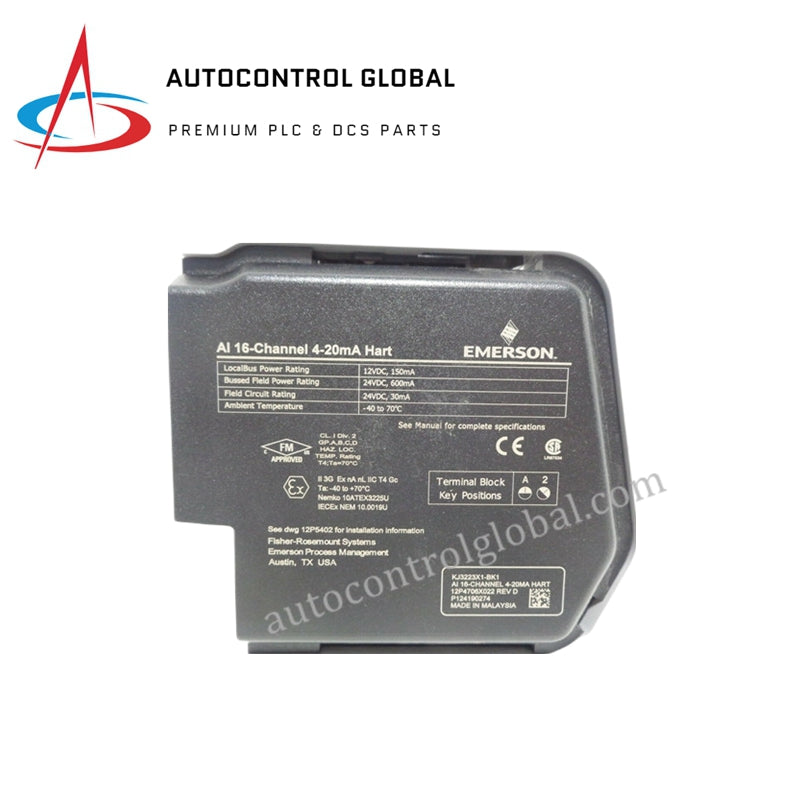

Brand New Emerson DeltaV KJ3223X1-BK1 AI 16-CH 4-20mA HART CARD In Stock

Product Overview

The AI 8-Channel 4-20 mA HART Card is a specialized analog input card designed for integration into Emerson’s DeltaV S-Series systems. This card provides essential process automation capabilities by receiving and processing analog signals from field devices, facilitating precise control and monitoring in industrial environments.

Specifications

• Power Supply:

  • Local Bus Power: 12 VDC at 150 mA
  • Bussed Field Power: 24 VDC at 300 mA
  • Field Circuit: 24 VDC at 30 mA per channel

• Environmental Specifications:

  • Ambient Temperature: -40°C to +70°C
  • Shock Resistance: 10 g half-sine wave for 11 ms
  • Vibration Resistance: 1 mm peak-to-peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz
  • Airborne Contaminants: Class G3 (5 to 95% non-condensing)
  • Relative Humidity: 5 to 95% non-condensing

Key Features

• Precision Analog Input: Provides reliable and accurate analog signal processing for process automation.
• HART Communication Capability: Supports HART protocol for advanced device management and diagnostics.
• Multi-Channel Configuration: Equipped with eight channels, each capable of handling 4-20 mA signals, offering flexibility in system design.
• Robust Environmental Performance: Designed to operate reliably under extreme temperatures, shock, vibration, and airborne contaminants, ensuring durability in harsh industrial settings.
• Efficient Power Management: Optimized power supply options, including local bus power and bussed field power, to support various installation requirements.
• Compatibility with DeltaV S-Series Systems: Seamlessly integrates with Emerson’s DeltaV S-Series systems, enhancing system interoperability and performance.
