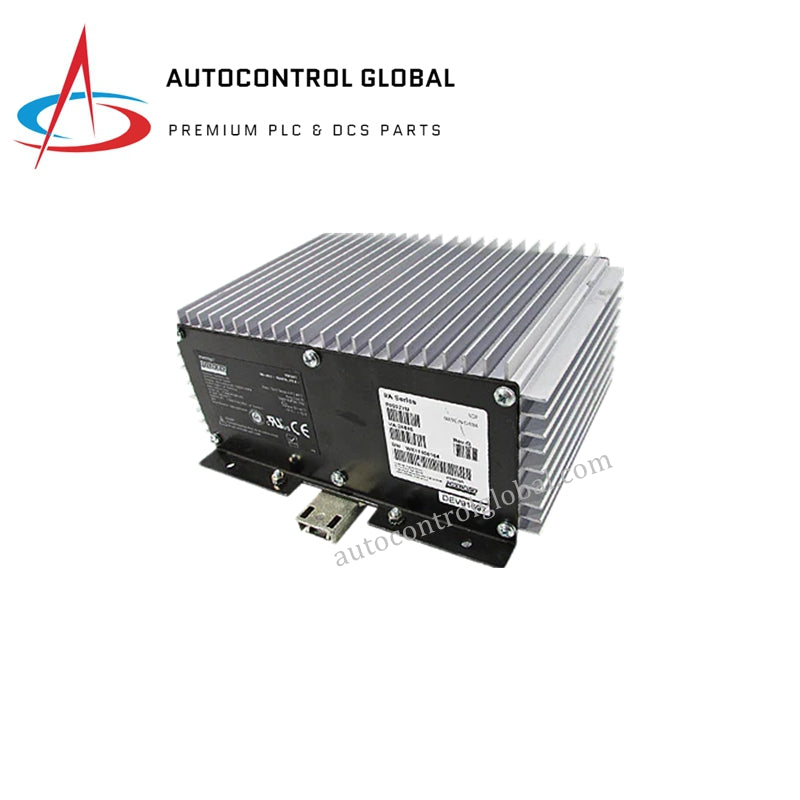

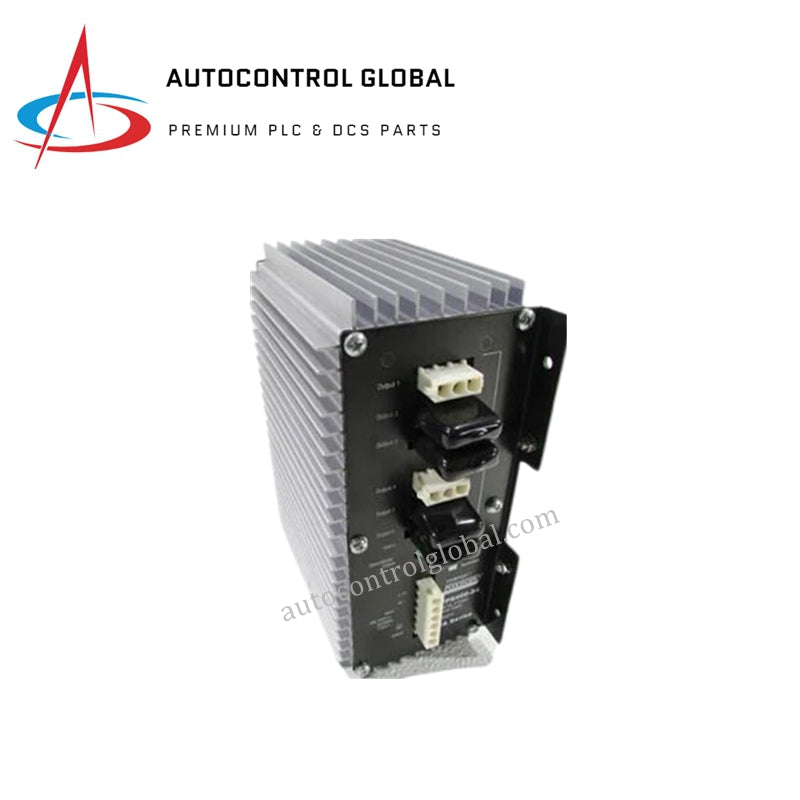

Brand New Foxboro P0922YU Power Supply Module In Stock

Product Overview

The P0922YU Power Supply is designed for flexible operation within a wide input voltage range of 85 to 265 V AC or 108 to 145 V DC, with a nominal operating voltage of 125 V DC. It supports an input frequency range of 47 to 63 Hz and provides a stable output voltage of 24.0 V DC, precisely regulated to ±0.2 V DC from the factory setting. This power supply is built for reliable performance in various industrial environments, offering robust protection features and compatibility with diverse electrical conditions.

Specifications

• Input Voltage Range:
  • AC: 85 to 265 V AC
  • DC: 108 to 145 V DC (Nominal 125 V DC)
• Input Frequency: 47 to 63 Hz
• Input Current:
  • 5.6 A at 85 V AC (RMS maximum)
  • 2.5 A at 230 V AC (RMS maximum)
• Output Voltage: 24.0 V DC ±0.2 V DC
• Voltage Line Regulation: ±2.0% of Vout
• Over Current Protection: Current limiting to 110% of maximum at 25°C load
• Leakage Current: < 1.6 mA from AC line to chassis ground at 250 V AC (47 to 63 Hz) or lower voltages
• Vibration Resistance: 0.75 g (5 to 500 Hz)
• Operating Temperature: –30 to 71°C (–58 to +160°F)
• Operating Relative Humidity: 5 to 95% (non-condensing)
• Operating Altitude: –300 to +3,000 m (–1,000 to +10,000 ft)
• Dimensions (H x W x D): 17.8 cm x 10.7 cm x 21.5 cm

Key Features

• Flexible Input Voltage: Supports both AC and DC inputs over a broad range, enhancing adaptability.
• Precise Output Control: Delivers a tightly regulated 24.0 V DC output, ensuring consistent performance.
• Robust Overcurrent Protection: Limits current to protect connected devices under overload conditions.
• Minimal Leakage Current: Ensures safety and efficiency with low leakage current.
• Environmental Resilience: Designed to operate reliably in extreme temperatures, humidity, and altitudes.
• Vibration Tolerance: Built to withstand vibrations up to 0.75 g across a wide frequency range.
• Compact Design: Small footprint facilitates easy integration into control cabinets and panels.
