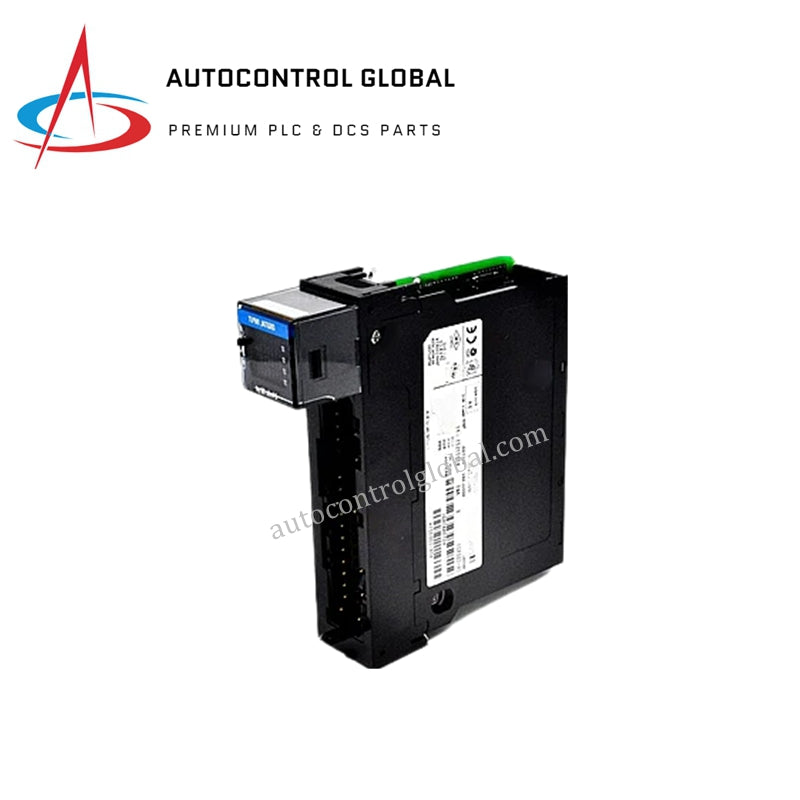

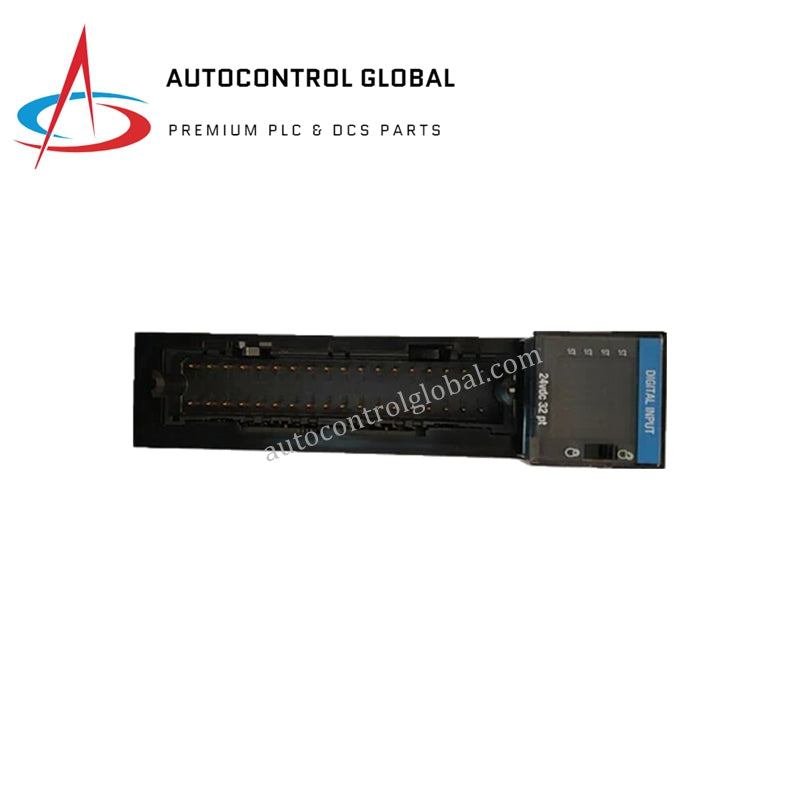

Brand New HoneyWell TK-IDD321 32-Point Discrete Input Module in Stock

Product Overview

The Honeywell TK-IDD321 is a high-density discrete input module designed to handle 32 input points, making it ideal for applications requiring efficient and reliable signal acquisition. This module is optimized for industrial environments where compactness and performance are critical. With its robust design and comprehensive specifications, the TK-IDD321 ensures accurate and dependable operation in various control systems.

Technical Specifications

• Number of Inputs: 32 (16 points/common)
• On-State Voltage Range: 10-31.2 VDC @ 60°C all channels
• Nominal Input Voltage: 24 VDC
• On-State Current (Minimum): 2 mA
• Off-State Voltage (Maximum): 5 V
• Off-State Current (Maximum): 1.5 mA
• Power Dissipation: 6.1 W max
• Short/Inrush Current: 250 mA peak (decaying to <37% in 22 ms, without activation)
• Input Compatibility: IEC Type 1+
• Connection Terminal Blocks: TC-TBCH, 36-position terminal block
• Weight: 0.24 kg (0.53 lbs)

Features

• High-Density Input Points: Supports 32 discrete inputs, allowing for efficient signal collection in space-constrained environments.
• Wide On-State Voltage Range: Operates reliably within an on-state voltage range of 10-31.2 VDC, ensuring compatibility with various input sources.
• Low Power Consumption: Designed for minimal power dissipation (6.1 W max), contributing to energy efficiency and reduced heat generation.
• Robust Electrical Characteristics:
  • Minimum on-state current of 2 mA for reliable signal detection.
  • Maximum off-state voltage of 5 V and off-state current of 1.5 mA to prevent unwanted activations.
• Peak Short/Inrush Current Handling: Capable of handling short/inrush currents up to 250 mA peak, decaying rapidly to ensure system stability.
• IEC Type 1+ Compatibility: Ensures compliance with international standards for input compatibility.
• Secure Connections: Utilizes a 36-position terminal block (TC-TBCH) for reliable and easy-to-manage wiring.
• Compact Design: Lightweight and space-efficient, facilitating easy integration into existing control panels.
