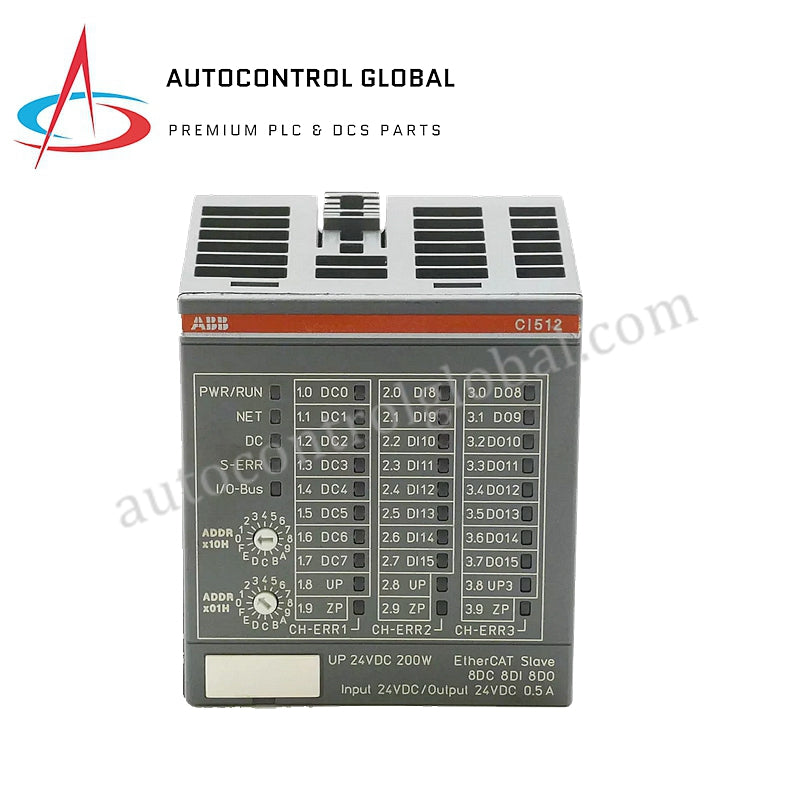

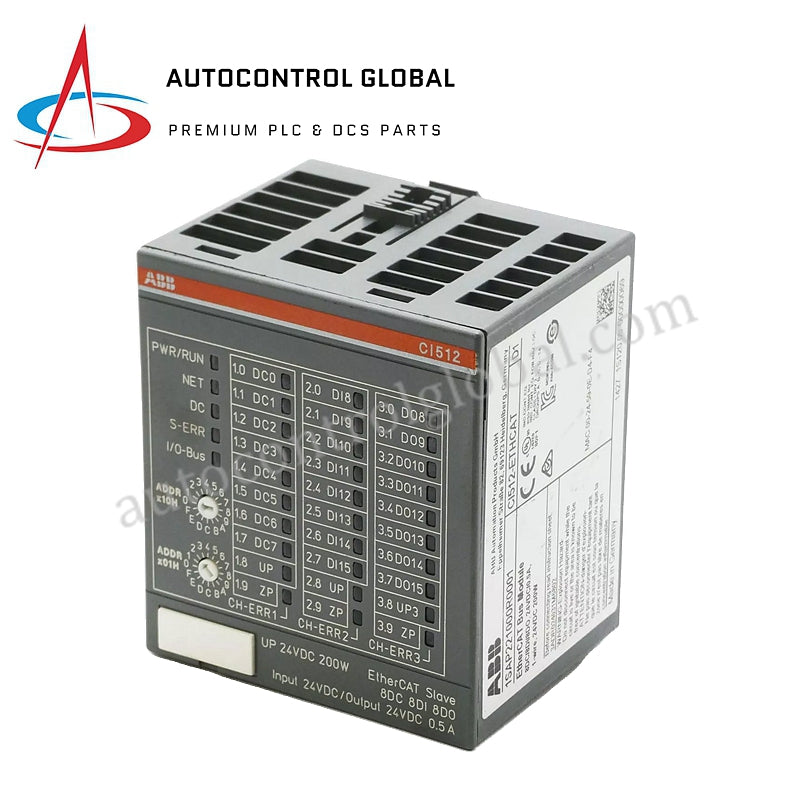

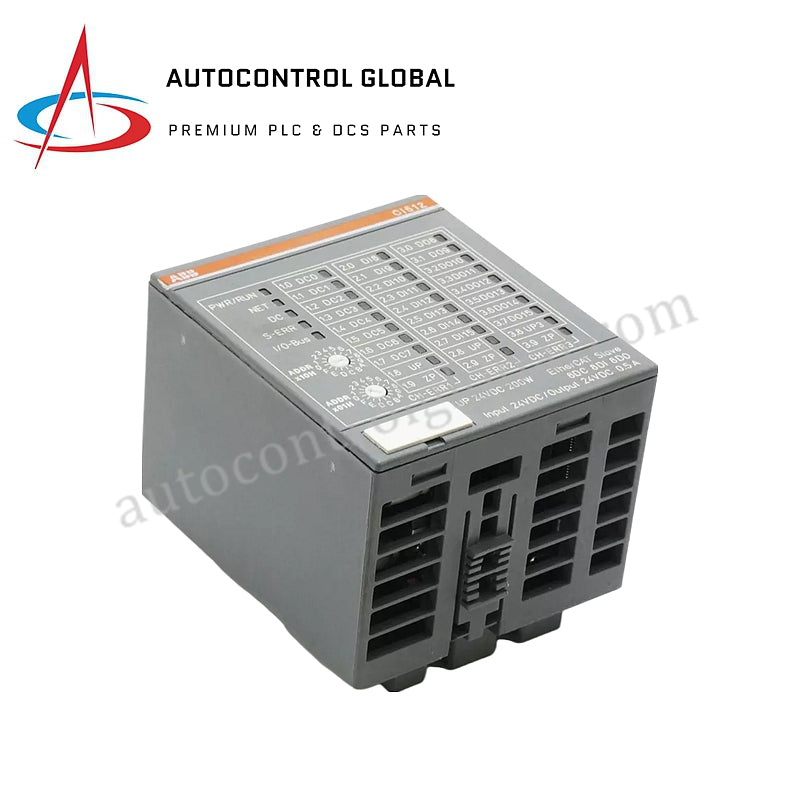

CI512-ETHCAT | ABB S500 EtherCAT Communication Interface Module

Overview

The CI512-ETHCAT is an EtherCAT communication interface module from ABB's S500 series, designed for distributed automation. It features 8 digital inputs (DI), 8 digital outputs (DO), and 8 digital controls (DC), supporting a transfer rate of 10/100 Mbit/s. It includes dual RJ45 ports and uses Hilscher NETX 100 technology.

Specifications

• Part Number: 1SAP 221 000 R0001
• Functionality:
  • 8 Digital Inputs (DI)
  • 8 Digital Outputs (DO)
  • 8 Digital Controls (DC)
• Input/Output Data:
  • 10 bytes input
  • 14 bytes output
• Bus Connection: 2 x RJ45
• Transfer Rate: 10/100 Mbit/s (Full-duplex)
• Transfer Method: Ethernet II, IEEE 802.3
• Ethernet: 100 base-TX, internal switch, 2x RJ45 socket
• Technology: Hilscher NETX 100
• Product Type: PLC-AC500

Dimensions & Weight

• Net Weight: 0.15 kg
• Height: 76 mm
• Length: 62 mm
• Width: 67.5 mm

Ordering Information

• Part Number: 1SAP 221 000 R0001
• Product Description: EtherCAT communication interface module, 8 DI, 8 DO, and 8 DC
• Product Life Cycle: Active
• Product Main Type: CI512
• Product Name: Distributed Automation I/Os
