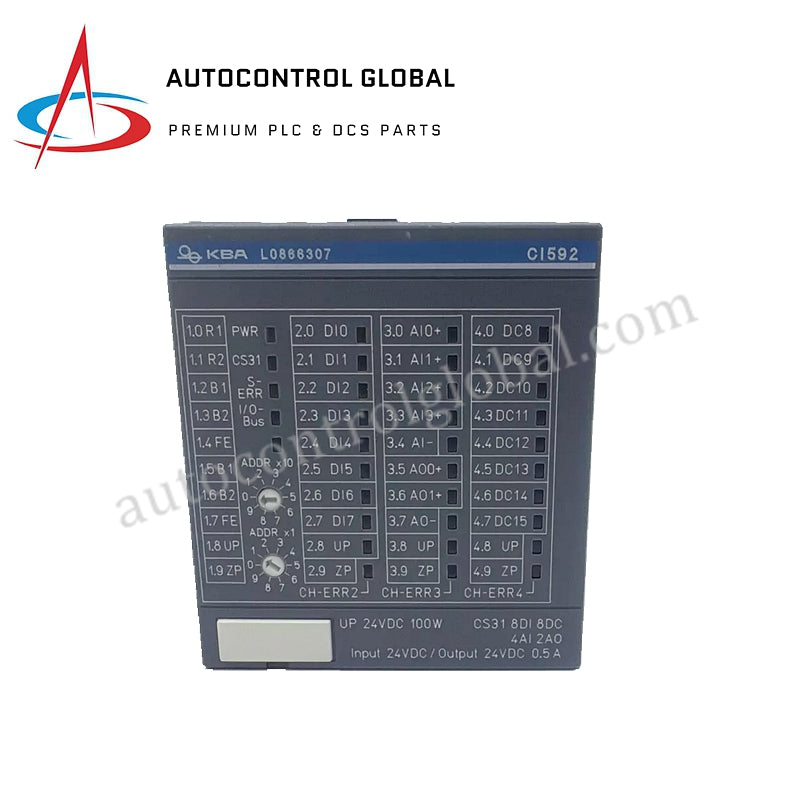

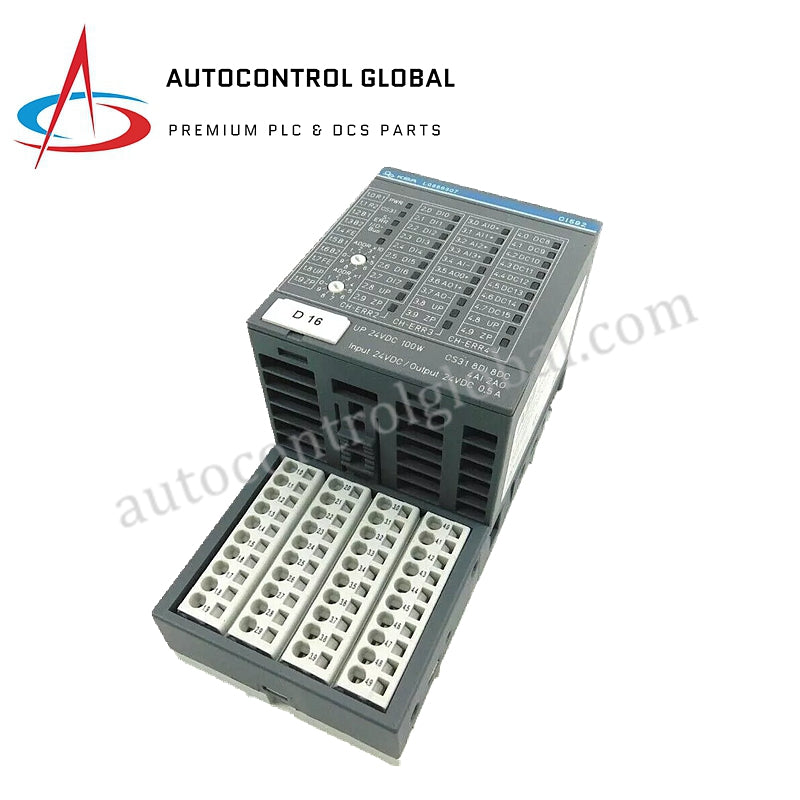

CI592-CS31 | ABB CS31 Communication Interface Module

Overview

• Product ID: 1SAP 221 200 R0001
• ABB Type Designation: CI592-CS31

Specifications

• Process Supply Voltage (UP): 24 V DC
• Protection Against Reverse Voltage: Yes
• Rated Protection Fuse at UP: 10 A fast
• Current Consumption (From UP): 0.07 A + max. 0.5 A per output
• Current Consumption (From 24 V DC Power Supply): 5 mA
• Inrush Current (From UP, power-up): 0.040 A²s
• Max. Power Dissipation: 6 W (outputs unloaded)
• Rotary Switches: 2 rotary switches on the front panel for setting the module's address

Interface

• Interface: RS-485
• Protocol: CS31
• Galvanic Isolation: Yes, CS31 bus from the rest of the module

Display & Indicators

• Operating and Error Displays: 30 LEDs (total)

Dimensions

• Weight (Without Terminal Unit): Approx. 125 g
