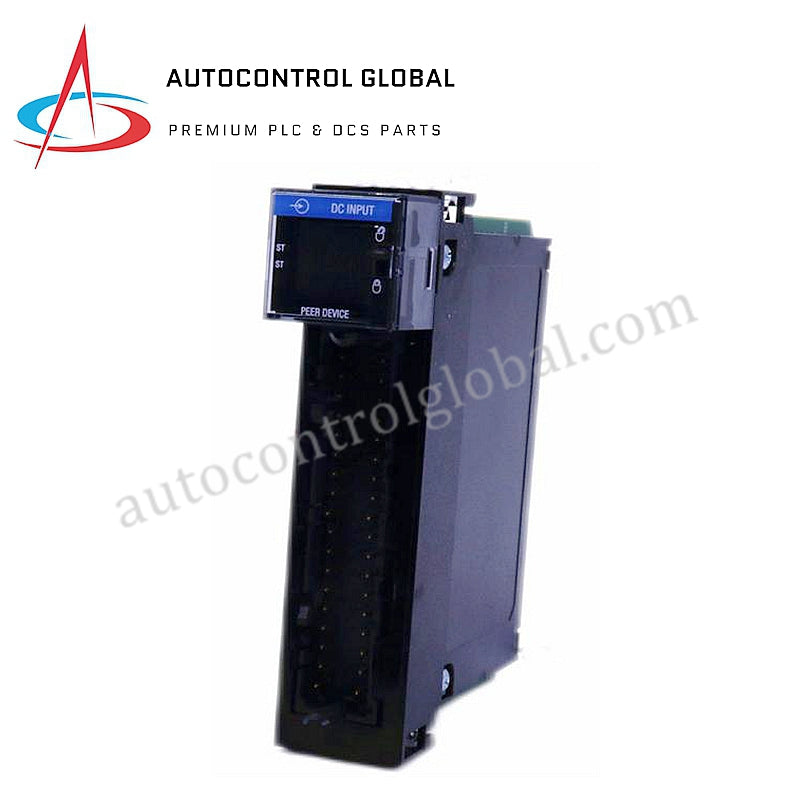

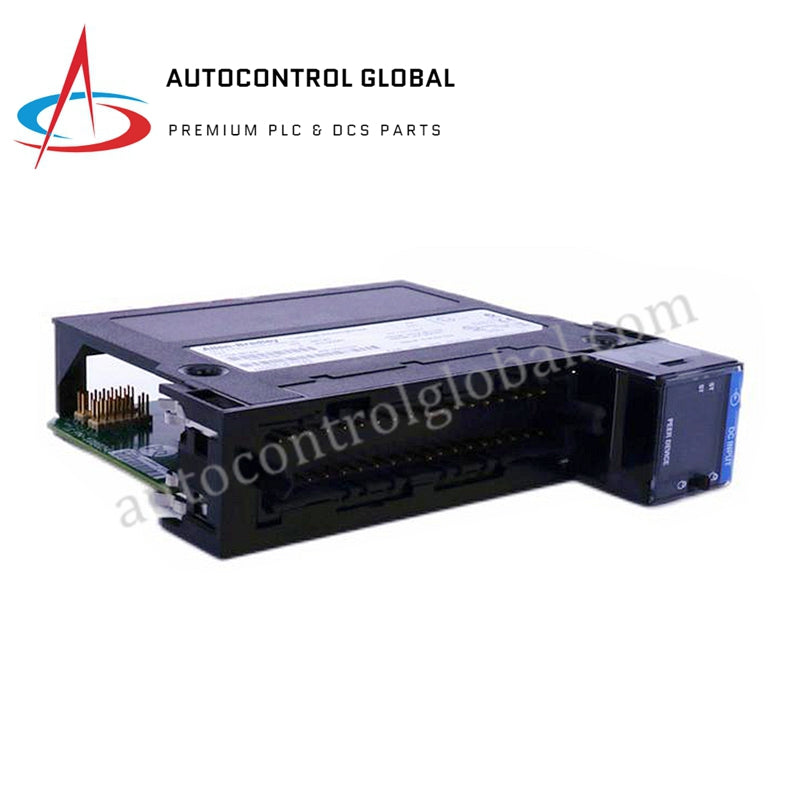

ControlLogix 1756-IB16I Allen-Bradley Discrete Input Module

Description

The 1756-IB16I is a ControlLogix Discrete Input Module by Allen-Bradley, designed for use in industrial automation systems. This module features sixteen individually isolated digital DC inputs, with a 10-30 VDC input voltage range, configurable signal delays, and a high-speed update time.

Specifications

• Manufacturer: Rockwell Automation

• Brand: Allen-Bradley

• Model: 1756-IB16I

• Module Type: Digital DC Input Module

• Series: ControlLogix

• Number of Inputs: 16 individually isolated

• Input Voltage Range: 10-30 VDC

• ON-state Current:

• Min: 2 mA @ 10 VDC

• Max: 10 mA @ 30 VDC

• Cyclic Update Time: 200 µs to 750 ms

• Signal Delay:

• ON Transition: 1 ms max + filter time (User-selectable filter time: 0 ms, 1 ms, 2 ms)

• OFF Transition: 4 ms max + filter time (User-selectable filter time: 0 ms, 1 ms, 2 ms, 9 ms, or 18 ms)

• Backplane Current:

• 5.1 VDC: 100 mA

• 24 VDC: 3 mA

• Total Backplane Power: 0.58 W

• Removable Terminal Block (RTB): 1756-TBNH, 1756-TBSH

• Operating Voltage Range: 10-30 VDC
