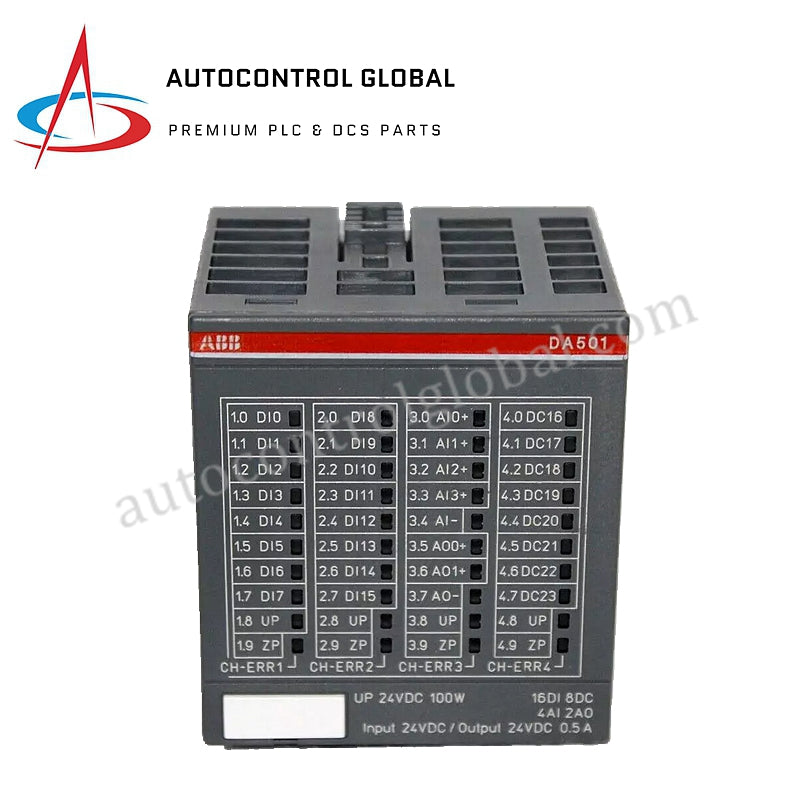

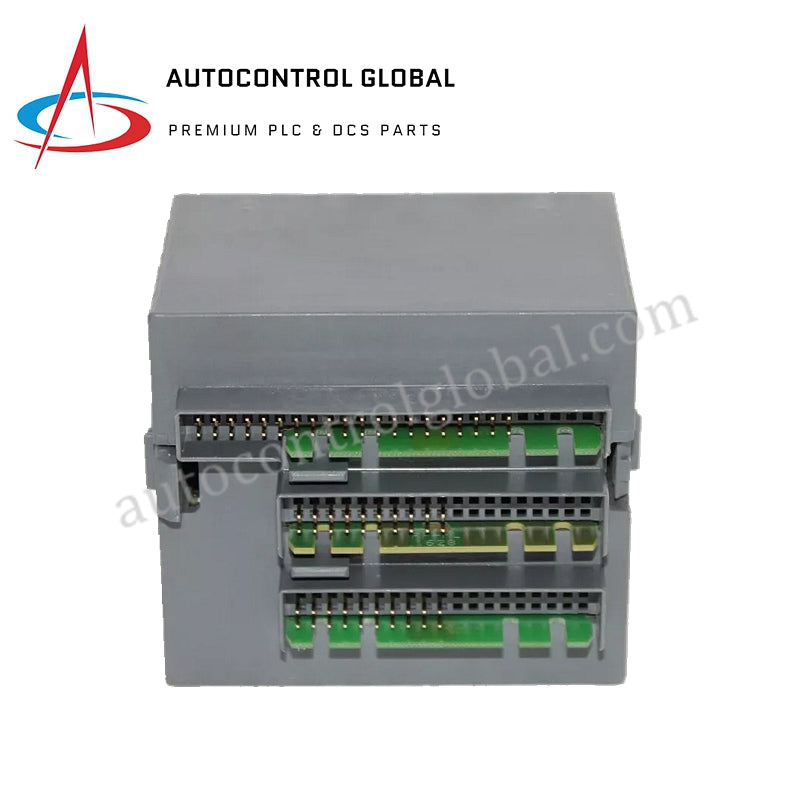

DA501 | ABB Digital/Analog Input/Output Module

Ordering Data

• Part no.: 1SAP 250 700 R0001
  Description: DA501, digital/analog input/output module, 16 DI, 8 DC, 4 AI, 2 AO
  Product Life Cycle Phase: Active
• Part no.: 1SAP 450 700 R0001
  Description: DA501-XC, digital/analog input/output module, 16 DI, 8 DC, 4 AI, 2 AO, XC version
  Product Life Cycle Phase: Active

Technical Data

• Process supply voltage
• • Connections: Terminals 1.8, 2.8, 3.8, and 4.8 for UP (+24 V DC) and 1.9, 2.9, 3.9, and 4.9 for ZP (0 V DC)
  • Protection against reverse voltage: Yes
  • Rated protection fuse at UP: 10 A fast
  • Rated value: 24 V DC
  • Max. ripple: 5 %
• Current consumption
  • From UP: 0.07 A + max. 0.5 A per output
  • From 24 V DC power supply at the terminals UP/L+ and ZP/M of the CPU/communication interface module: ca. 2 mA
  • Inrush current from UP (at power-up): 0.04 A2s
• Galvanic isolation: Yes, per module
• Max. power dissipation within the module: 6 W (outputs unloaded)
• Weight (without terminal unit): ca. 125 g
