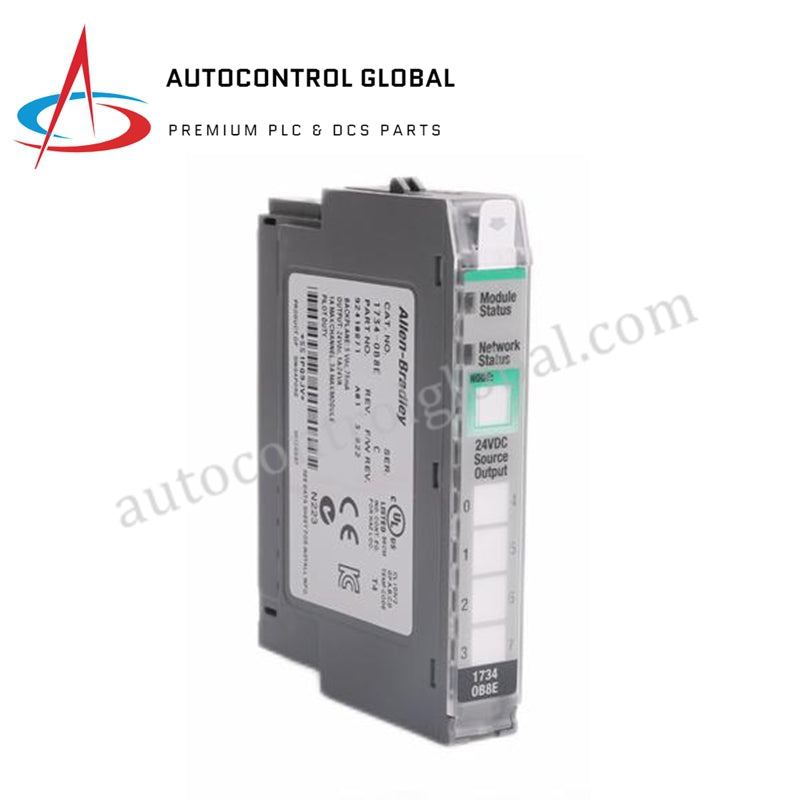

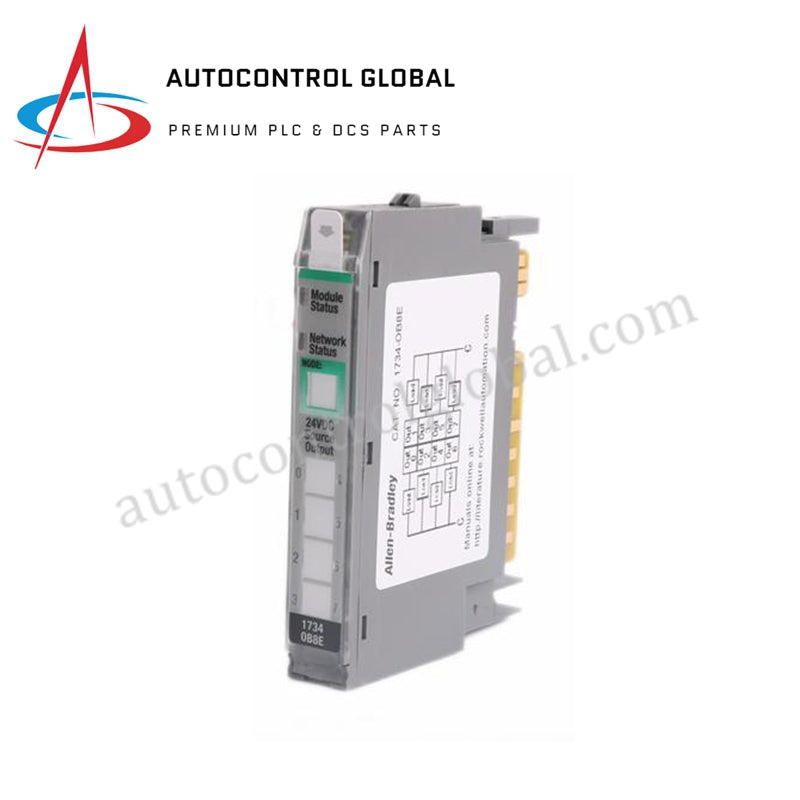

Discrete Output Module 1734-OB8E Allen-Bradley
Manufacturer: Allen-Bradley
-
Part Number: 1734-OB8E
Condition：New with Original Package
Product Type: Discrete Output Module
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Description
The 1734-OB8E is a discrete output module from Allen-Bradley’s POINT I/O series. It features 8 outputs, each with 24 VDC output voltage and protection against electronic damage.
Key Specifications
-
Outputs: 8
-
Output Signal: 10-28.8 VDC
-
Output Current per Point: 0.0416 A
-
Output Current per Module: 3 A
-
Surge Current: 2 A for 10 ms, repeatable every 3 s
-
Current Draw: 75 mA @ 5V DC
-
Thermal Dissipation: 6.8 BTU/hour
-
Enclosure Type Rating: Open-style
-
Module Location: 1734-TB or 1734-TBS
Dimensions
-
Height: 56 mm (2.2 in.)
-
Width: 12 mm (0.47 in.)
-
Depth: 75.5 mm (2.97 in.)
Additional Features
-
Electronically Protected: Yes
-
POINTBus Current: 75 mA
-
Key Switch Position: 1
