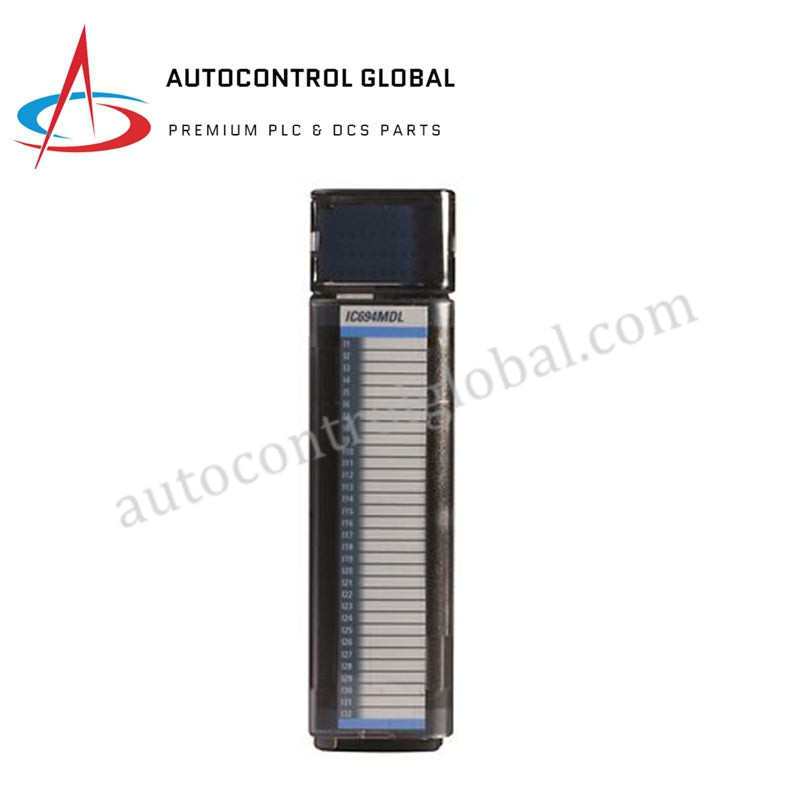

Discrete Output Module IC694MDL758 GE Fanuc
Manufacturer: GE Fanuc
-
Part Number: IC694MDL758
Condition：New with Original Package
Product Type: Discrete Output Module
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Overview
The IC694MDL758 is a Discrete Output Module from the GE Fanuc RX3i PACSystem series. This module provides 32 discrete outputs, ideal for control applications requiring fast switching and reliable performance.
Key Specifications
-
Model: IC694MDL758
-
Product Type: Discrete Output Module
-
Operating Voltage: 12/24 Volts DC
-
I/O Capacity: 32 Discrete Outputs
-
Number of Groups: 2
-
Location: RX3i PACSystems I/O Slot
Electrical Characteristics
-
Switching Current: 0.5 Amps per point
-
Max Backplane Draw: 250 mA
-
Inrush Rating: 5.4 Amps
-
Max Response Time: 0.5 ms
Performance Features
-
Point to Point Isolation: Yes
-
LED Indicators: 32 (1 LED per output)
Applications
-
Primary Application: RX3i PACSystems
