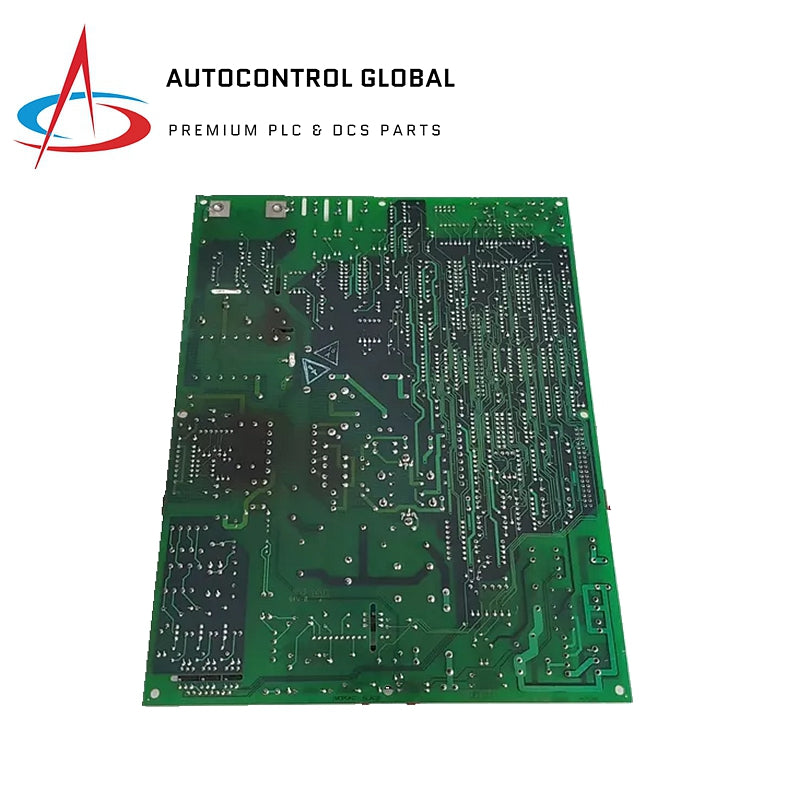

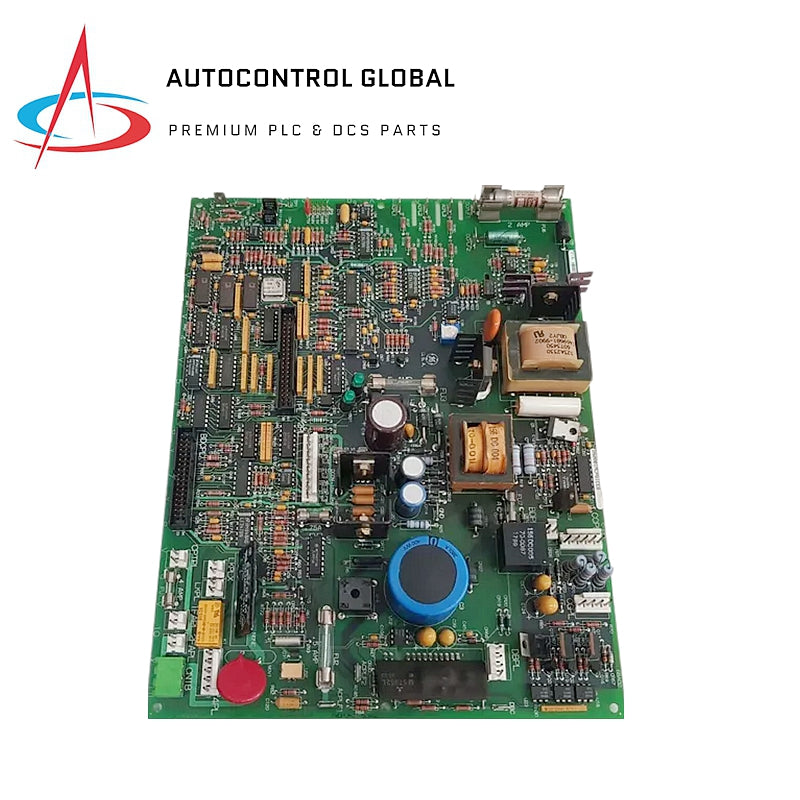

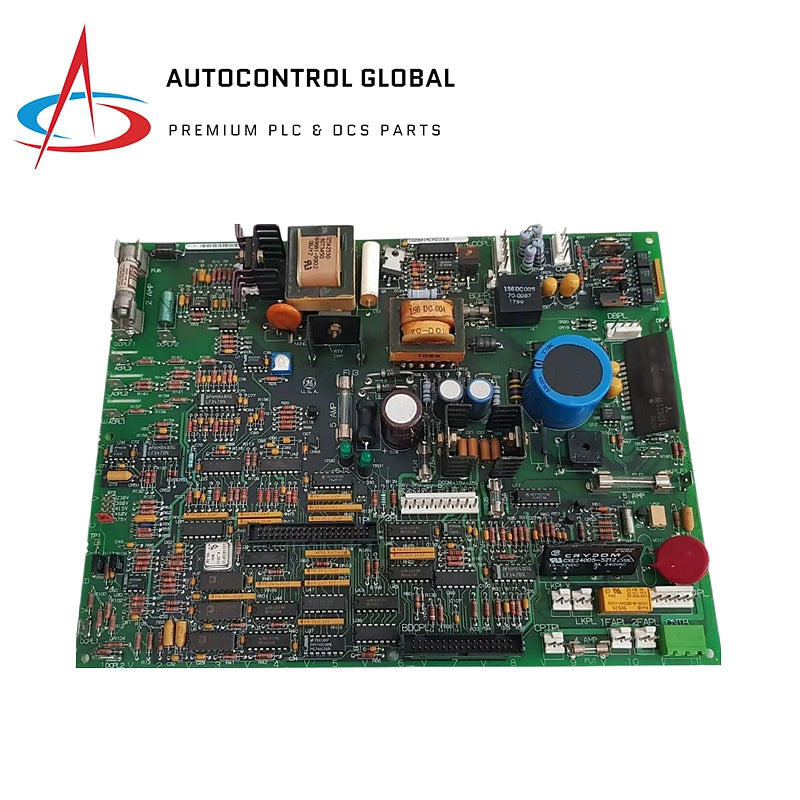

DS200IMCPG1CCA | GE Fanuc | IGBT Card

Overview

The GE Fanuc DS200IMCPG1CCA is an efficient IGBT Card designed for high-performance industrial applications, providing advanced power conversion and control.

Features

• High Efficiency: Optimized for efficient power conversion
• Advanced Control: Provides precise control capabilities

Technical Specifications

Electrical Parameters

• Input Voltage Range: 18-32V DC
• Switching Frequency: Up to 20 kHz
• Maximum Current: 50A continuous

Physical Characteristics

• Dimensions: 200 mm x 150 mm x 35 mm (7.87 in x 5.9 in x 1.38 in)
• Weight: 1.2 kg (2.65 lbs)
• Mounting Type: Panel mount with secure fixing points

Environmental Conditions

• Operating Temperature Range: -30°C to +60°C (-22°F to +140°F)
• Storage Temperature Range: -40°C to +85°C (-40°F to +185°F)
• Humidity: Up to 90% non-condensing

Performance Indicators

• Efficiency: Greater than 95% at full load
• Overload Protection: Integrated overload and thermal protection
• Response Time: Less than 10 microseconds for switching
