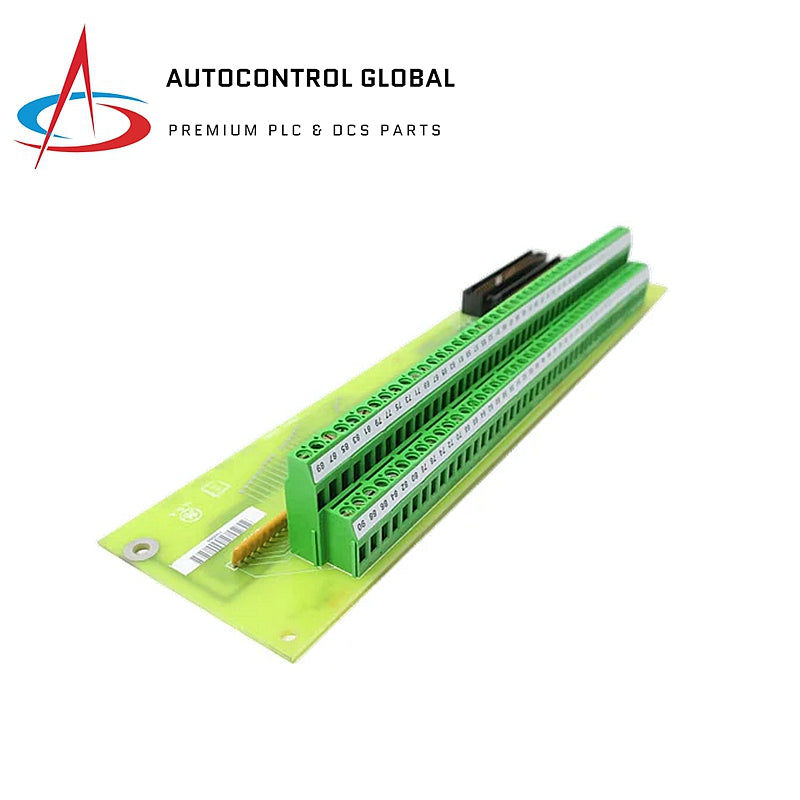

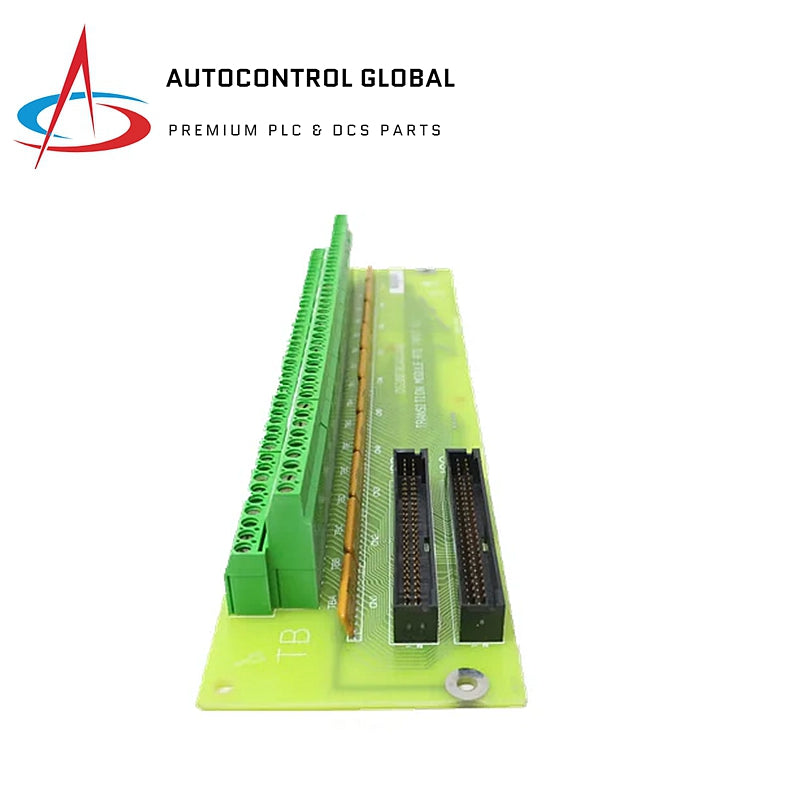

DS200TBCAG1AAB | Analog I/O Terminal Board | GE Fanuc
Manufacturer: GE Fanuc
-
Part Number: DS200TBCAG1AAB
Condition：New with Original Package
Product Type: Analog I/O Terminal Board
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Overview
The DS200TBCAG1AAB Analog I/O Terminal Board is an essential component within the GE Mark V Turbine Control System. Designed for use in turbine control systems, this PCB plays a crucial role in managing analog I/O functions.
Features
- Signal Terminals: Equipped with two blocks of 90 signal wire terminals for easy connections.
- Connector Compatibility: Includes two 50-pin connectors for seamless integration with other Mark V components.
- Simple Installation: Replacing the board involves transferring signal wires to the new terminal blocks, making the process straightforward for qualified technicians.
Technical Specifications
- Manufacturer: General Electric
- Series: Mark V
- Part Number: DS200TBCAG1AAB
- Terminals: Two blocks of 90 signal wire terminals
- Connectors: Two 50-pin connectors
-
RTD Signal Connectors:
- JCC TCCA Board 1-15 RTD Signals (R5 Core)
- JDD TCCA Board 16-30 RTD Signals (R5 Core)
Installation and Maintenance
Replacing the DS200TBCAG1AAB requires disconnecting the drive from its power source and adhering to local and national electrical standards. Be sure to use proper static protection (e.g., ESD-safe bags) and wear a wrist strap during the replacement. Additionally, ensure the emergency power shutoff equipment is accessible in case of an emergency. Always consult with qualified personnel for the safe removal and replacement of the board.
