DS200TCDAH1BJE | Digital I/O Board | GE Fanuc

  • Manufacturer: GE Fanuc

  • Part Number: DS200TCDAH1BJE

  • Condition:New with Original Package

  • Product Type: Digital I/O Board

  • Country of Origin: USA

  • Payment:T/T, Western Union

  • Shipping port: Xiamen

  • Warranty: 12 months

Overview

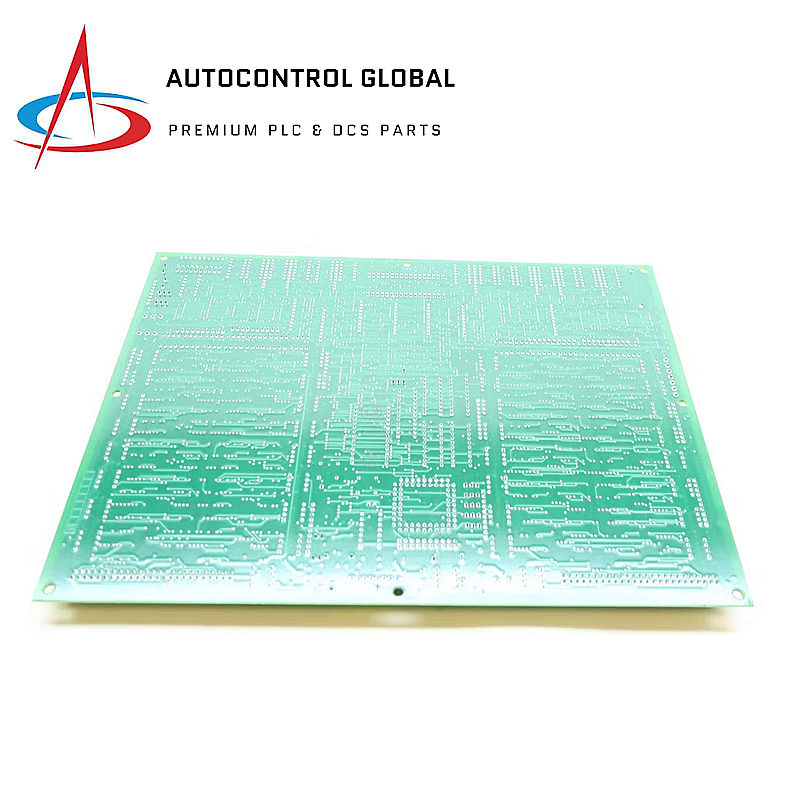

GE Fanuc DS200TCDAH1BJE is a Digital I/O Board designed for use in General Electric's Mark V Turbine Control System Series.

Specifications

  • Manufacturer: GE General Electric
  • Series: Mark V
  • Part Number: DS200TCDAH1BJE
  • Product Type: Digital I/O Board
  • Function: Interfacing digital inputs and outputs within the turbine control system
  • Hardware Features:
    • 8 jumpers
    • 1 LED indicator (green, indicates power and processing status)
    • 2 3-pin connectors
    • 1 block of 10 LEDs
    • 2 50-pin connectors (JQ and JR)
  • Compatibility:
    • Connects with DS200DTBA and DS200DTBB boards via 50-pin connectors
    • Part of Mark V Speedtronic turbine control system

Environmental Conditions

  • Operating Temperature: -20°C to +60°C
  • Storage Temperature: -40°C to +85°C
  • Humidity: 5-95% RH (non-condensing)

Dimensions & Weight

  • Dimensions: 190 mm x 120 mm x 40 mm (7.5 in x 4.7 in x 1.6 in)
  • Weight: 0.5 kg (1.1 lbs)

Additional Information

  • LED Indicator (CR9):
    • Green when lit (power indication)
    • Flashes during processing
    • Off indicates no power or response
  • Cable Routing: Important for signal interference prevention between connected boards
