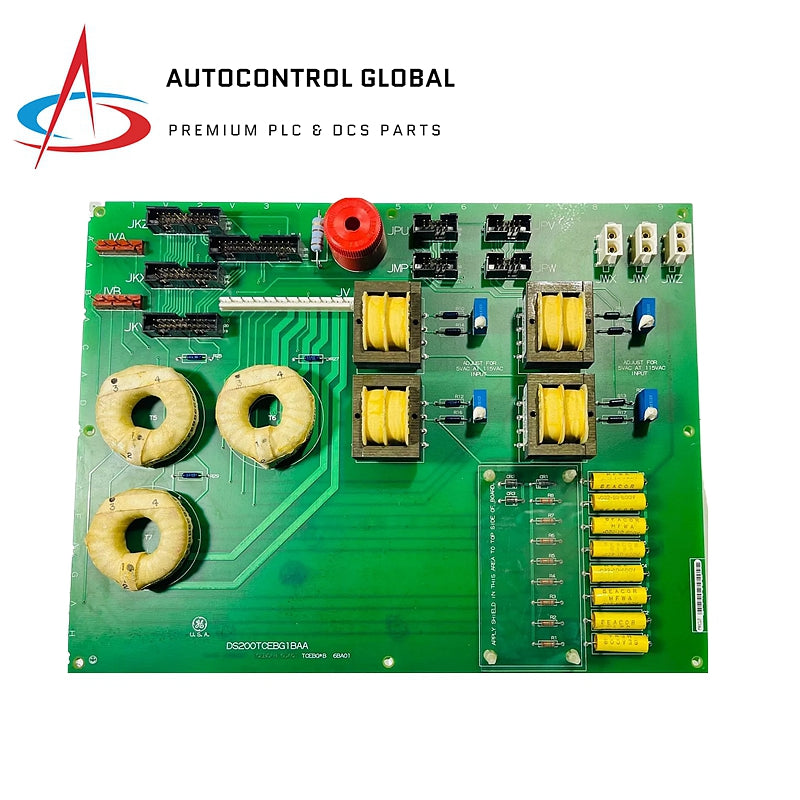

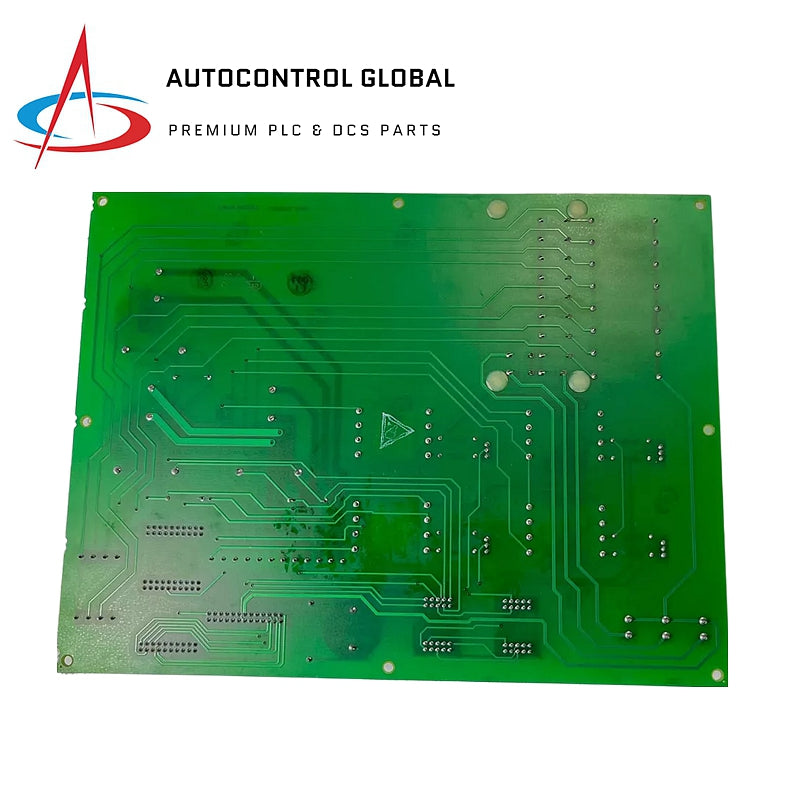

DS200TCEBG1BAA | General Electric Protective Termination Expander Board

Overview

• Part Number: DS200TCEBG1BAA
• Manufacturer: General Electric
• Series: Mark V LM
• Product Type: Protective Termination Expander Board
• Power Requirements: +5 V dc, 6 A
• Core Slot: P1
• Operating Temperature: -30 to +65°C
• Size: 15.9 cm high x 17.8 cm

Functionality

• Purpose: Scales PT and CT signals for the TCCB board
• Application: Used in GE Speedtronic Control Systems for voltage, current, and flame detection monitoring
• Signals Processed: Generator and bus voltages, line current, emergency overspeed, flame detection

Connectors

• JKX/Y/Z: Carries emergency overspeed and flame detection signals to TCEA boards
• JMP: Carries PT and CT signals to TCCB board
• JU: Carries magnetic pickup and flame-detect signals from PTBA terminal board
• JV: Carries PT and CT signals from PTBA terminal board
• JVA: Carries 335 V DC to PTBA for UV flame detectors
• JWX/Y/Z: Conditions and writes 335 V DC from TCEA to PTBA terminal board

Features

• Overvoltage Protection: Guards against voltage spikes
• Overcurrent Protection: Prevents excessive current flow
• Short Circuit Protection: Detects and responds to short circuits
• EMI/RFI Filtering: Reduces electromagnetic and radio-frequency interference
• Temperature Monitoring: Ensures optimal operating conditions
• Fault Indication: Visual or audible alerts for faults
• Isolation: Electrical isolation for protection
• Compatibility: Works with standard termination connectors
• Resettable Protection Devices: Includes resettable fuses or circuit breakers
