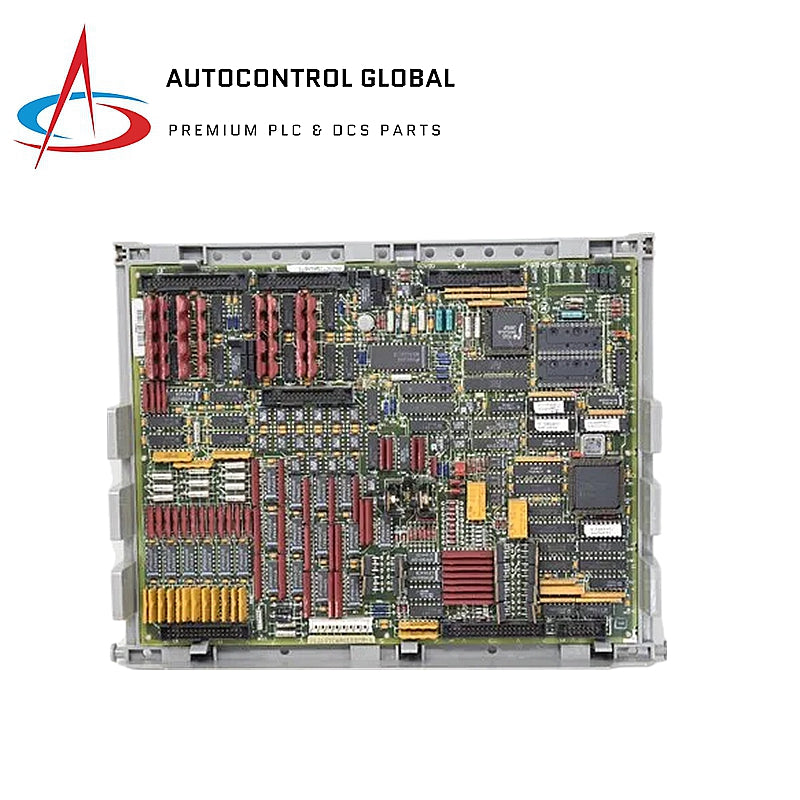

DS200TCQAG1BFD | General Electric | RST Analog I/O Board

Overview

The GE Fanuc DS200TCQAG1BFD is an RST Analog I/O Board designed to enhance the performance and reliability of industrial automation systems. This board provides precise control and monitoring capabilities for various applications, especially in turbine control systems.

Features

• High Reliability: Ensures stable performance in demanding environments.
• Versatile Application: Suitable for multiple control and monitoring tasks.
• Compact Design: Space-saving for easy integration into control panels.

Technical Specifications

• Rated Voltage: 24 VDC
• Analog Input Channels: 16
• Analog Output Channels: 8
• Digital Input Channels: 8
• Signal Resolution: 12-bit for accurate data conversion
• Sampling Rate: 1 kHz per channel
• Signal Range: 0-10V for analog inputs, 4-20mA for analog outputs
• Power Consumption: 12W max
• Power Supply: External 24 VDC
• Communication Protocols: Modbus TCP/IP, DNP3, IEC 61850
• Interface: Ethernet, RS-485
• Baud Rate: Up to 115.2 kbps
• Operating Temperature: -30°C to +70°C
• Storage Temperature: -40°C to +85°C
• Humidity Range: 10% to 95% RH, non-condensing
• Mounting Type: DIN rail or panel mount
• Material: Industrial-grade metal enclosure
