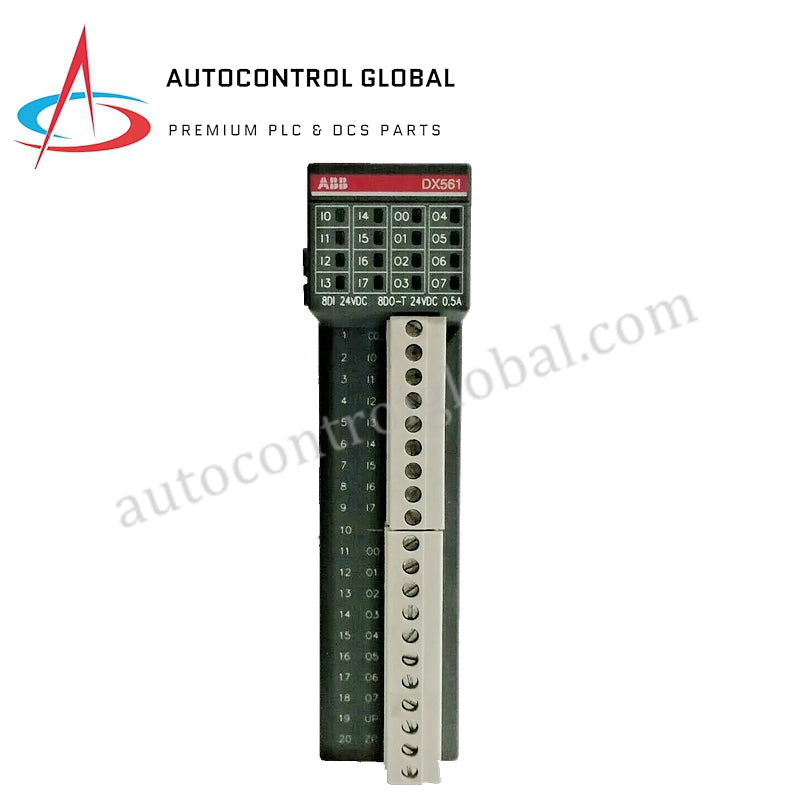

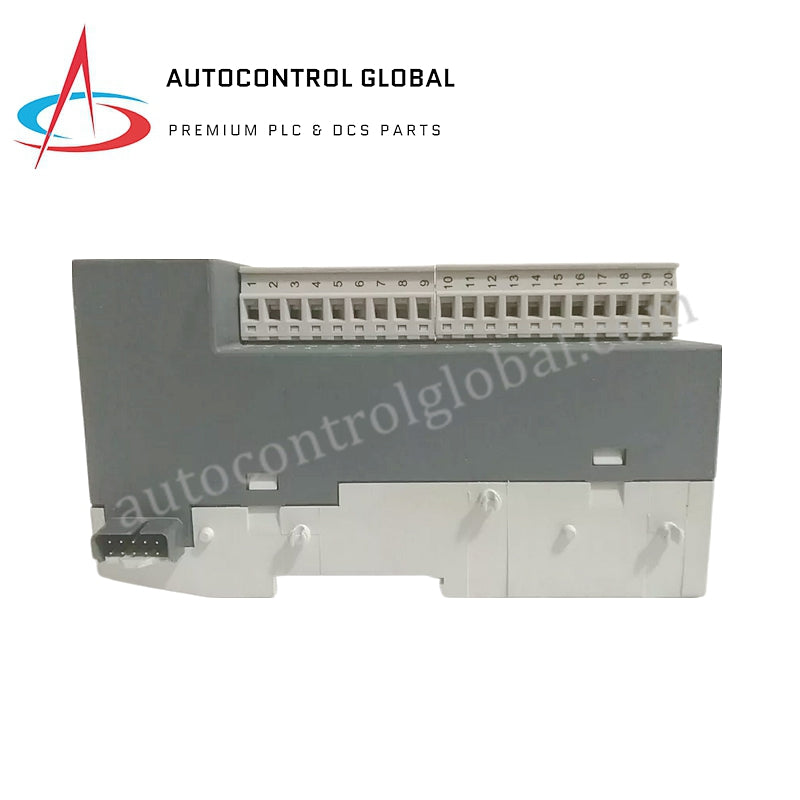

DX561 | ABB Digital Input/Output Module

Overview

The DX561 is an ABB digital input/output module featuring 8 DI sink/source inputs and 8 DO transistor outputs, designed for 24 V DC applications.

Inputs and Outputs

• Function: 8 DI sink/source: 24 V DC, 8 DO: 24 V DC, 0.5 A
• Input Voltage: 0–30 V DC
• Input Current: 5 mA
• Output Voltage: 24 V DC
• Output Current: 0.5 A
• Connection: Pluggable

Power and Protection

• Supply Voltage: 20.4–28.8 V DC
• Degree of Protection: IP20

Timing and Performance

• Input Delay Time: 8 ms
• Output Voltage Range: 20.4–28.8 V

Temperature and Storage

• Operating Temperature: 0 ... +60 °C
• Storage Temperature: -40 ... +70 °C

Compact Dimensions

• Width: 34 mm
• Height: 74 mm
• Depth: 135 mm
• Weight: 0.12 kg
