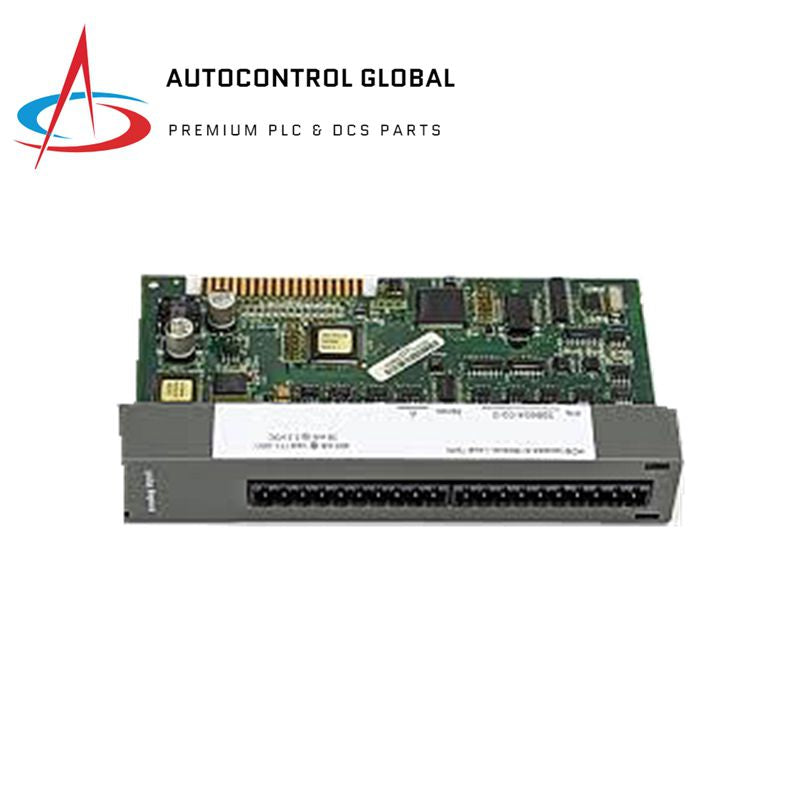

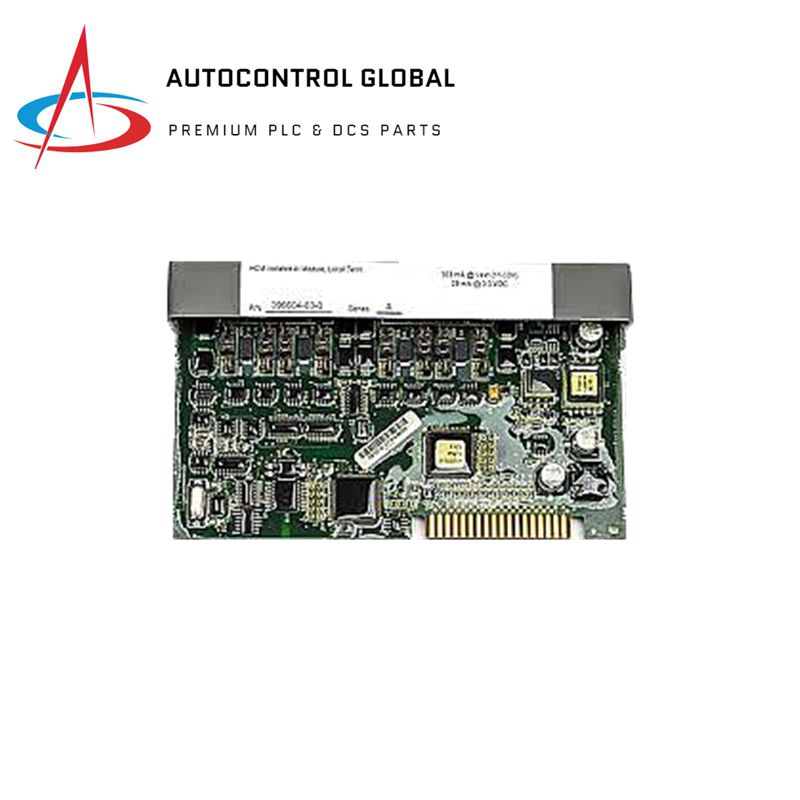

Emerson 396604-03-0 Analog Input/Output Module

Description

The Emerson 396604-03-0 is an Analog Input/Output Module designed to provide the ControlWave Micro system with the ability to monitor and control various analog field signals.

Features

• Analog Inputs and Outputs: Provides six analog inputs and two analog outputs.
• Configurable Operation: Inputs and outputs are individually jumper configurable for 4 to 20 mA or 1 to 5 VDC operation.
• Surge Protection: Equipped with surge suppression between each signal and ground.
• Local or Remote Terminations: Available with local or remote terminations for flexible installation.

Technical Specifications

• Analog Inputs:
  • Channels: 6
  • Configuration: Externally sourced, single-ended
  • Operation: Configurable for 4 to 20 mA or 1 to 5 VDC
• Analog Outputs:
  • Channels: 2
  • Configuration: Externally sourced (11 to 30 VDC)
  • Operation: Configurable for 4 to 20 mA or 1 to 5 VDC
• Surge Suppression: 30 VDC transorbs
