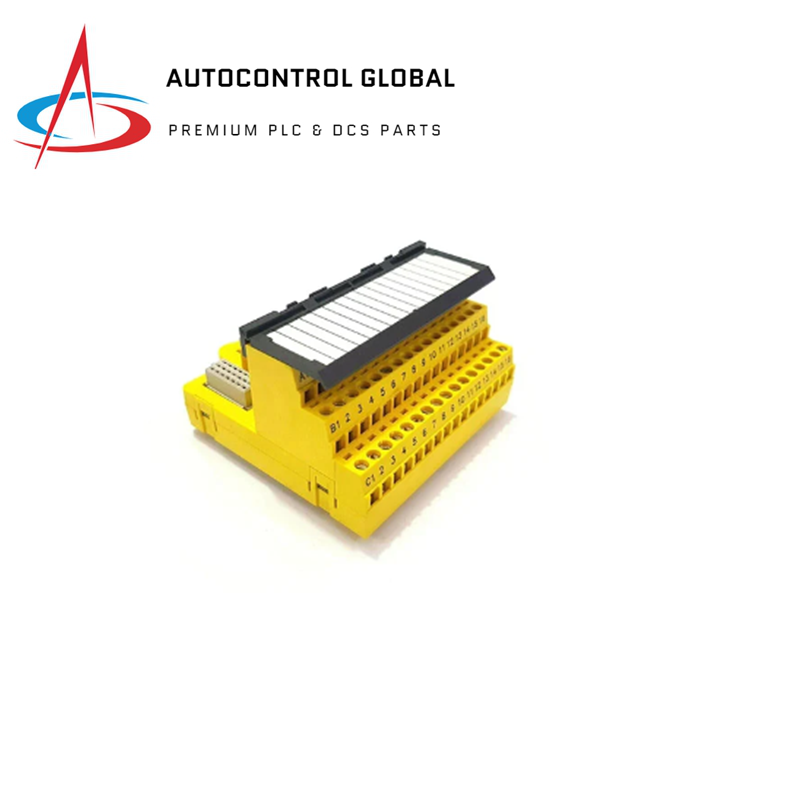

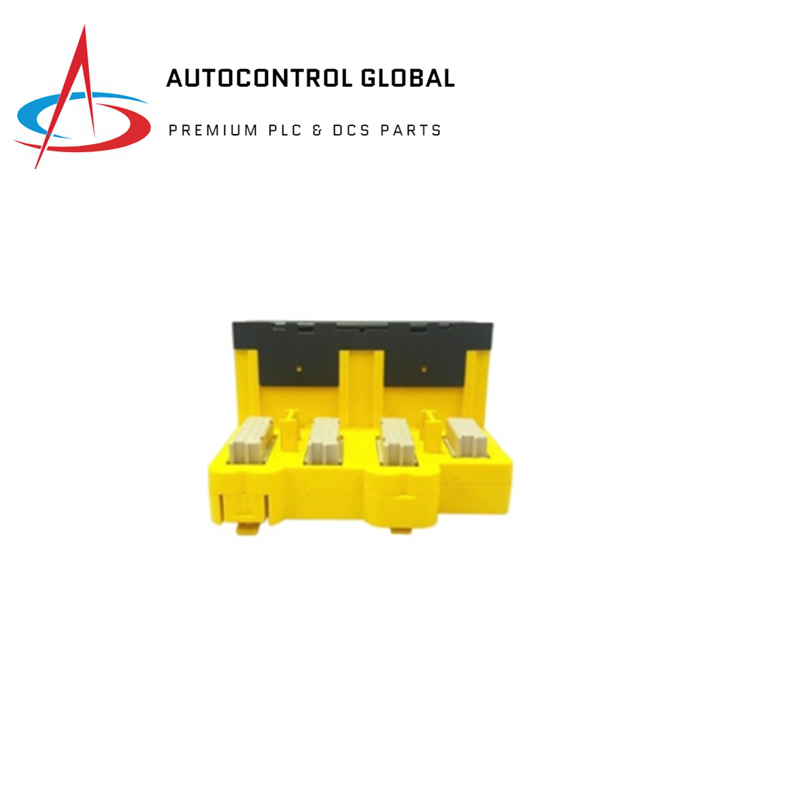

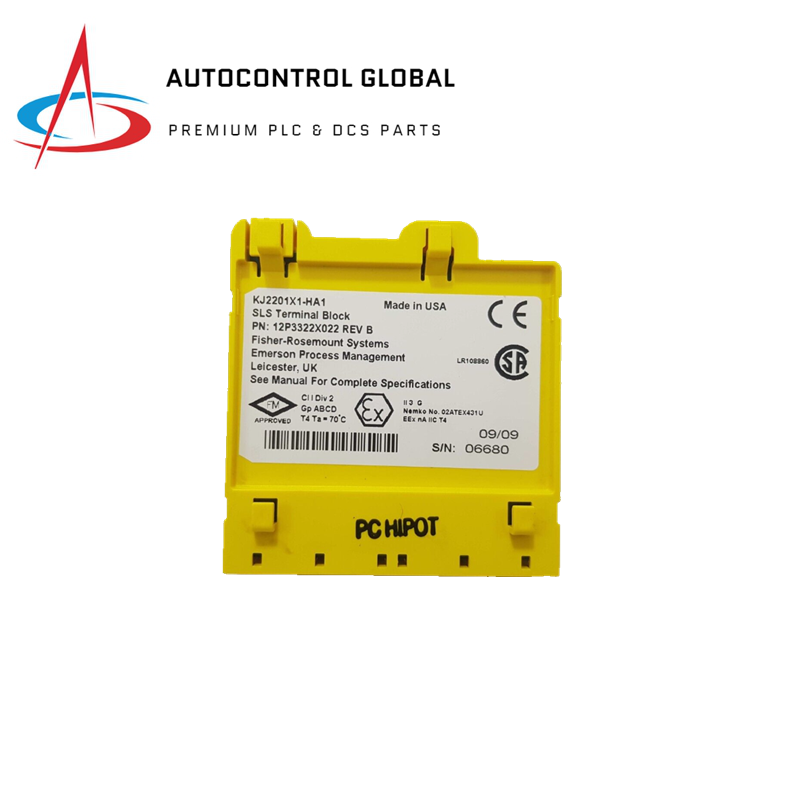

Emerson DeltaV KJ2201X1-HA1 SLS Terminal Block

Power Specifications

• Input Power:
  • Max Voltage: 30 VDC
  • Max Current:
    • 30 mA per channel for circuits between terminals A and B
    • 1 A per channel for circuits between terminals A and C

Environmental Specifications

• Ambient Temperature: -40°C to +70°C
• Shock: 10 g half-sine wave for 11 ms
• Vibration:
  • 1 mm peak to peak from 2 to 13.2 Hz
  • 0.7 g from 13.2 to 150 Hz
• Airborne Contaminants: ISA-S71.04 –1985 Airborne Contaminants Class G3
• Relative Humidity: 5 to 95% non-condensing
