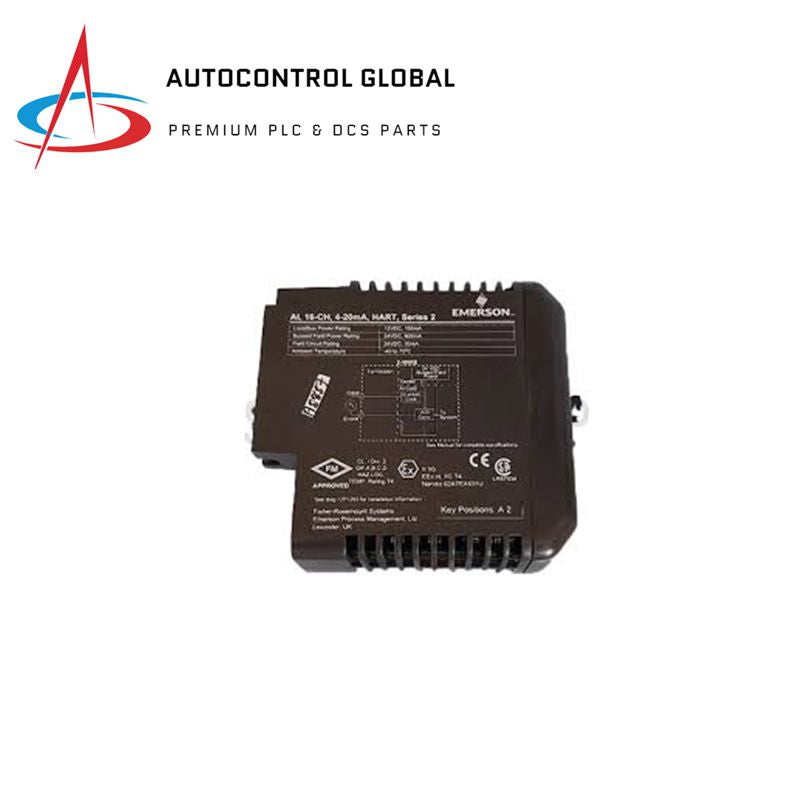

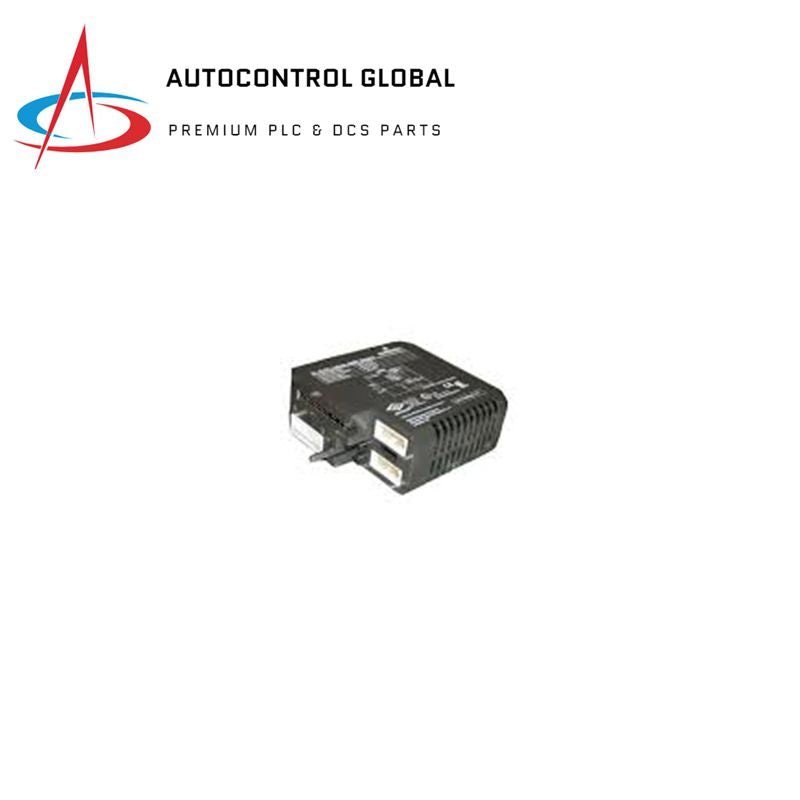

Emerson Deltav KJ3223X1-BA1 AI 16 CH 4-20mA Hart Card

Manufacturer: Emerson
Part Number: KJ3223X1-BA1
Condition：New with Original Package
Product Type: Hart Card
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months

KJ3223X1-BA1 AI 16 CH 4-20mA HART CARD

Power Specifications

Local Bus Power
- Bussed Field Power: 12 VDC at 150 mA
- Field Circuit: 12 VDC at 600 mA
Environmental Specifications
- Ambient Temperature: -40°C to +70°C
- Shock: 10 g half-sine wave for 11 ms
- Vibration: 1 mm peak to peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz
- Airborne Contaminants: Complies with ISA-S71.04 –1985 Airborne Contaminants Class G3
- Relative Humidity: 5 to 95% Non-Condensing
- Terminal block key position: A2

Important Notes

Refer to the product label for serial number, location, and date of manufacture.
Installation, removal, and operation instructions are specified in document 12P2046 “DeltaV™ Scalable Process System Zone 2 Installation Instructions.”
Removal or insertion of this unit should only occur when the area is known to be non-hazardous.
Maintenance and adjustment: This unit contains no user-serviceable parts and should not be disassembled. Calibration is not required.
