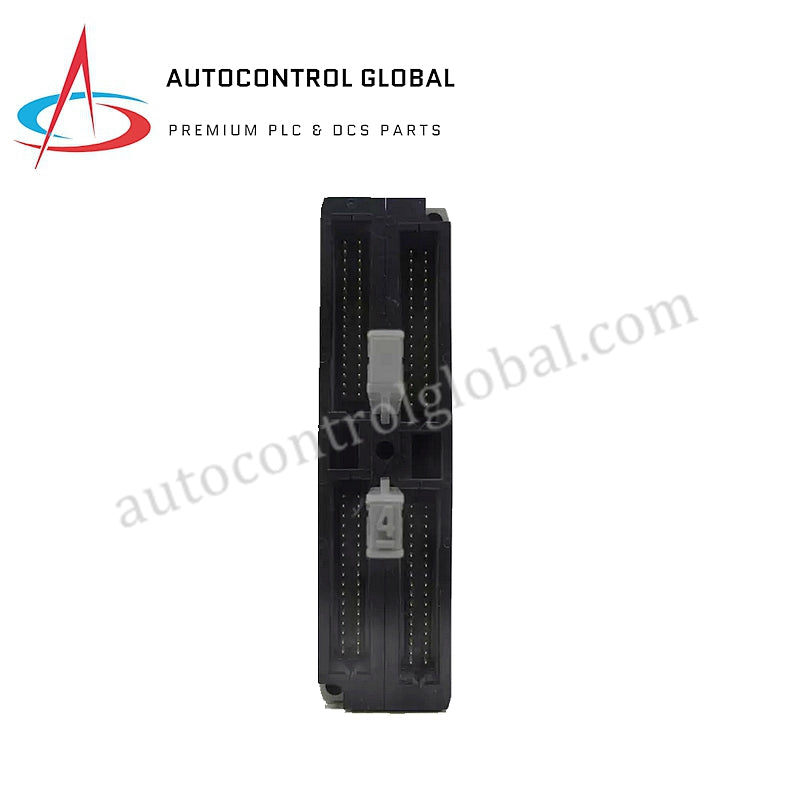

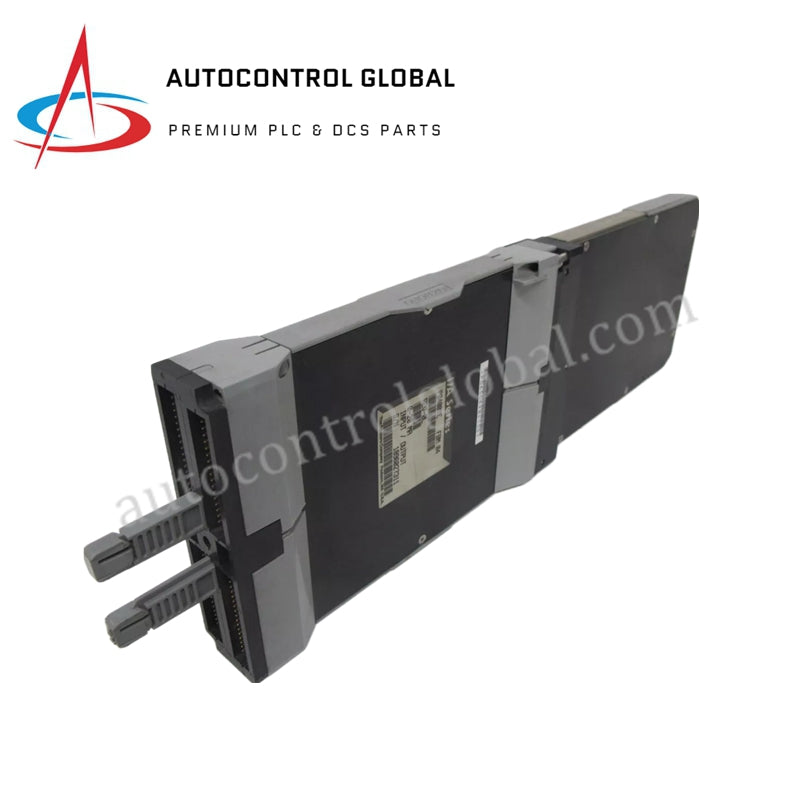

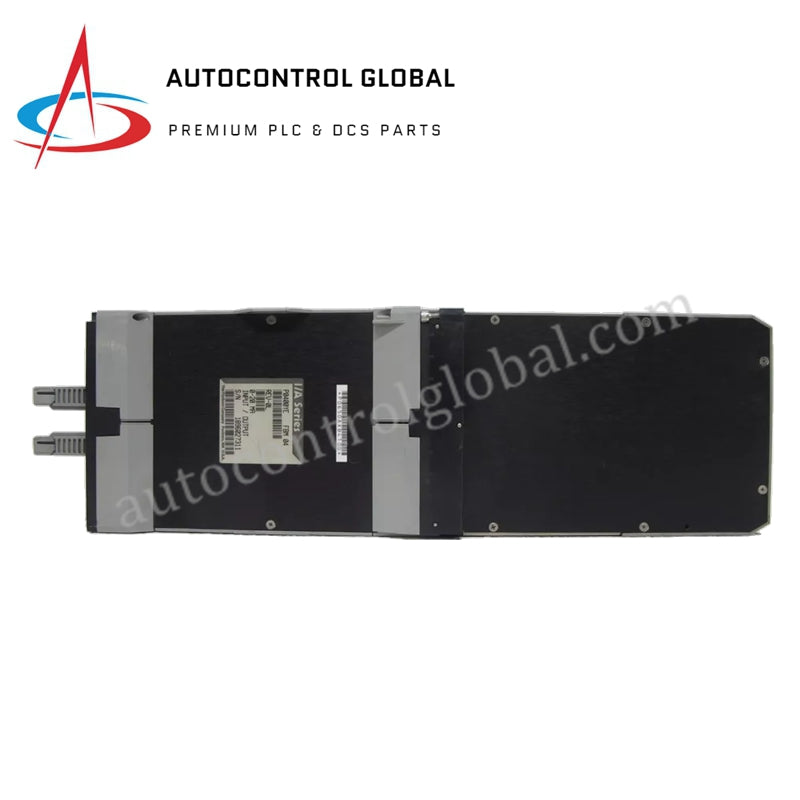

FBM04 P0400YE Foxboro I/O Interface Module

Description

FBM04 P0400YE
Foxboro I/O Interface Module

General Information

• Input Voltage Range (Redundant): 26 to 42 V dc

• Power Consumption: 14 W (maximum)

• Heat Dissipation: 12 W (maximum)

• Isolation: 600 V ac for one minute between any channel and earth (ground), or between any channel pairs

Specifications

Input Channels:

• 4 isolated and independent channels

Input Range (Each Channel):

• 0 to 20.4 mA dc

Accuracy:

• ±0.05% of span

Communication:

• Via redundant Fieldbus

Input Connections:

• Two configurations available

Conversion Time (Software Configurable):

• Refer to Table 1 (Input Specifications)

Output Channels:

• 4 isolated and independent channels

Output Range (Each Channel):

• 0 to 20.4 mA dc

Output Load (Maximum):

• 735 Ω

Compliance Voltage:

• 18.6 V nominal at 20 mA dc at I/O field terminals

Accuracy:

• ±0.05% of span (25°C)

Output Temperature Coefficient:

• 100 ppm/°C

Communication:

• Via redundant Fieldbus

Settling Time:

• 100 ms for a 10 to 90% input step change

Linearity Error:

• ±0.025% of span (monotonic)

Resolution:

• 12 bits
