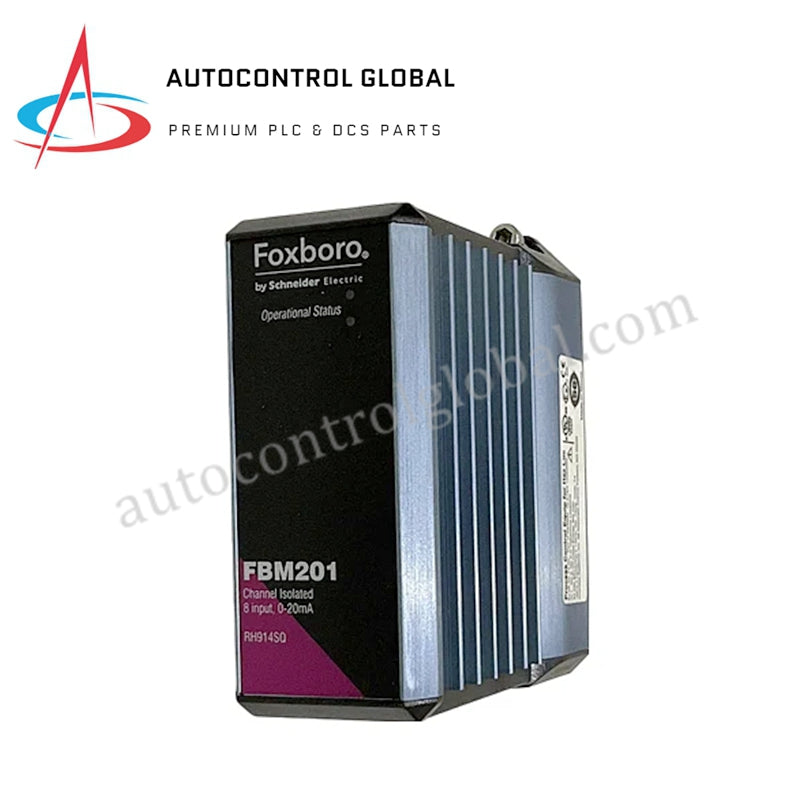

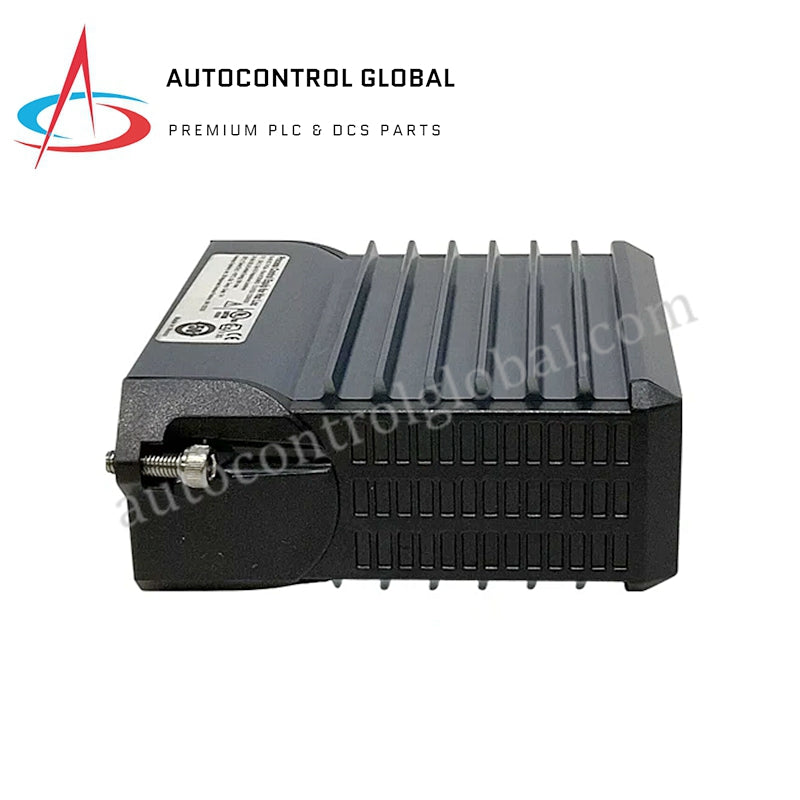

FBM201 | Foxboro Analog Input 0 to 20 mA Interface Module

Description

The Foxboro FBM201 Analog Input 0 to 20 mA Interface Module is designed for precise measurement and integration in process control systems. It offers 8 isolated and independent input channels with a 0 to 20 mA DC range, providing reliable communication via the redundant 2 Mbps module fieldbus.

General Information

• Brand: Foxboro

• Module Type: Analog Input Module

• Part Number: FBM201

• Input Channels: 8 isolated and independent channels

• Input Range: 0 to 20 mA DC (each channel)

• Power Requirements:

• Input Voltage Range (Redundant): 24 V DC ±5%, -10%

• Consumption: 7 W

• Heat Dissipation: 4 W

Environmental Conditions

• Weight:

• Compression: 181 g (0.40 lb) approximate

• Ring Lug: 249 g (0.55 lb) approximate

• Compact FBM201: 185 g (6.5 oz) approximate

• Termination Assembly:

Dimensions

• Compact FBM201:

• Height: 130 mm (5.12 in)

• Width: 25 mm (0.98 in)

• Depth: 150 mm (5.9 in) including baseplate connectors

• Depth without baseplate connectors: 139 mm (5.46 in)
