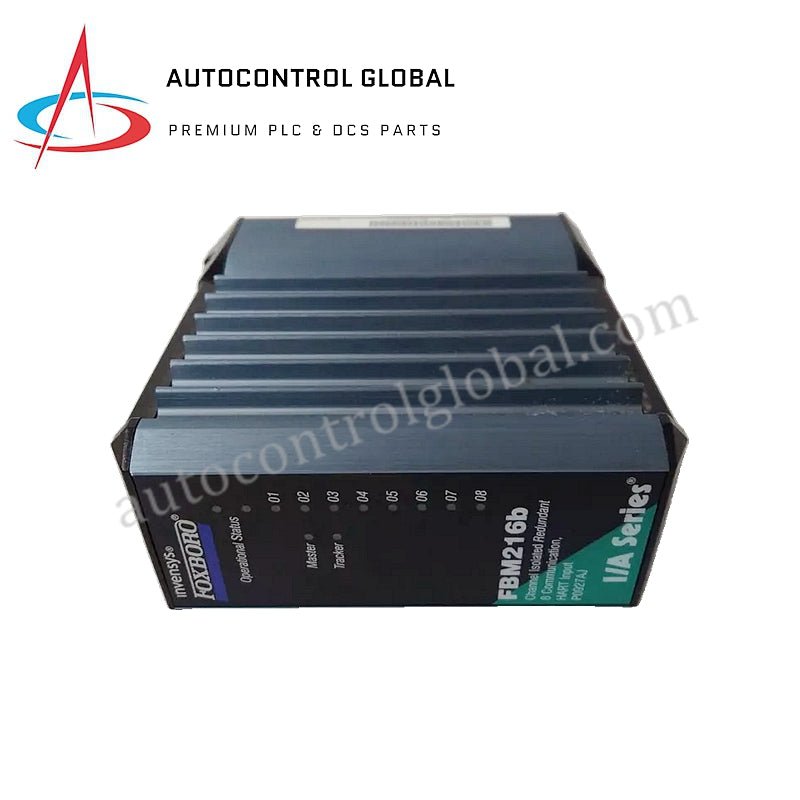

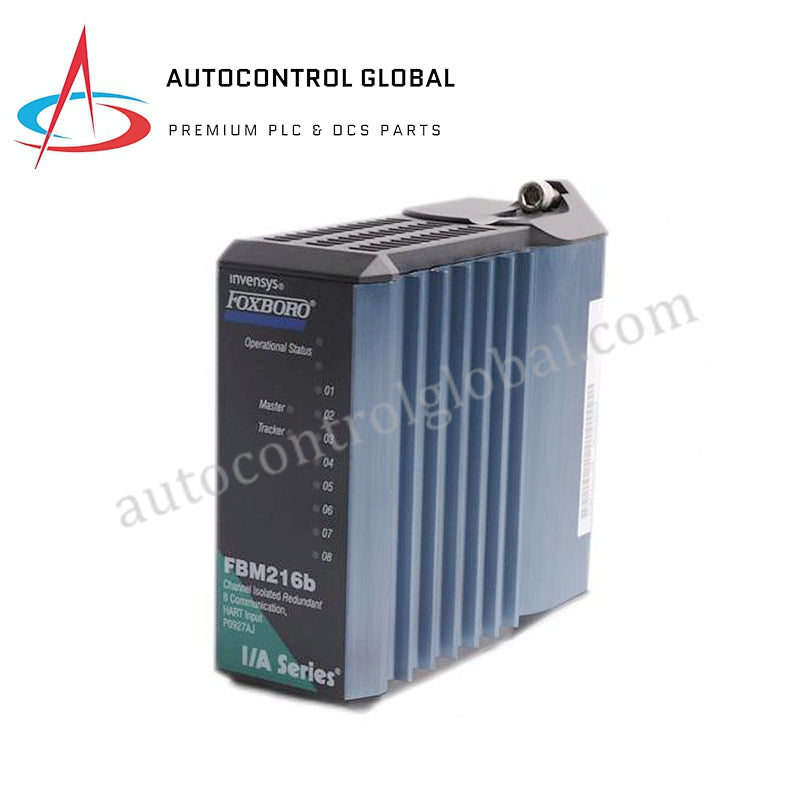

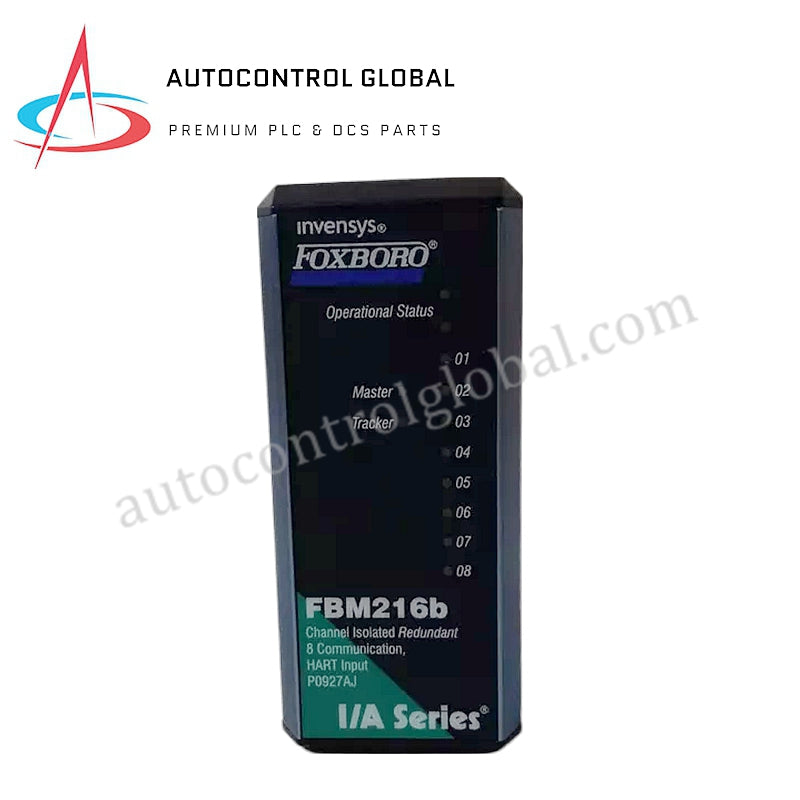

FBM216B P0927AJ Foxboro Redundant HART Communication Input Module
Manufacturer: Foxboro
-
Part Number: FBM216B P0927AJ
Condition：New with Original Package
Product Type: Redundant HART Communication Input Module
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Description
FBM216B P0927AJ
Foxboro Redundant HART Communication Input Module
General Information
-
Supported HART Instrument Types: HART instruments compliant with Version 5, 6, or 7
-
Interface: 8 individually isolated channels
-
Communication to the Device: Point-to-point, master/slave, asynchronous, half-duplex, at 1200 baud
-
Error Checking: Parity on each byte, CRC check byte
-
Speed: 2 messages per second
-
Fastest Allowed ECB Block Period: 100 ms
Specifications
Input Resistance (Including Termination Assembly and Redundancy Adapter):
-
Externally Powered: 282 Ω
-
Internally Powered: 302 Ω
Fieldbus Communication:
-
Communicates via 2 Mbps redundant Fieldbus
Power Requirements:
-
Input Voltage Range (Redundant): 24 V dc +5% -10%
-
Consumption: 7 W (maximum)
-
Heat Dissipation: 4 W (maximum)
