FBM228 | FOUNDATION Fieldbus Module | Foxboro

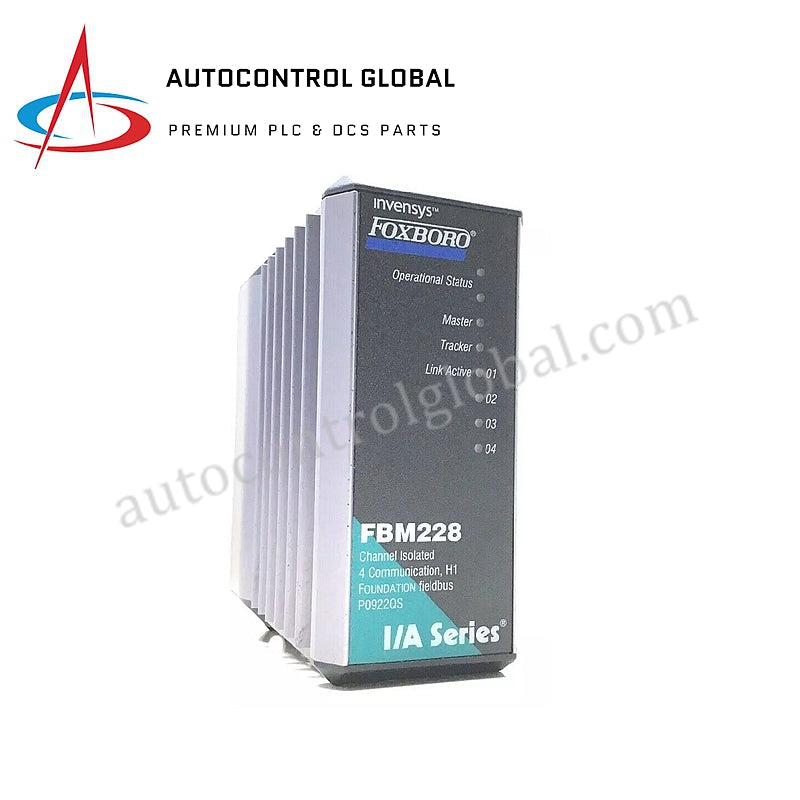

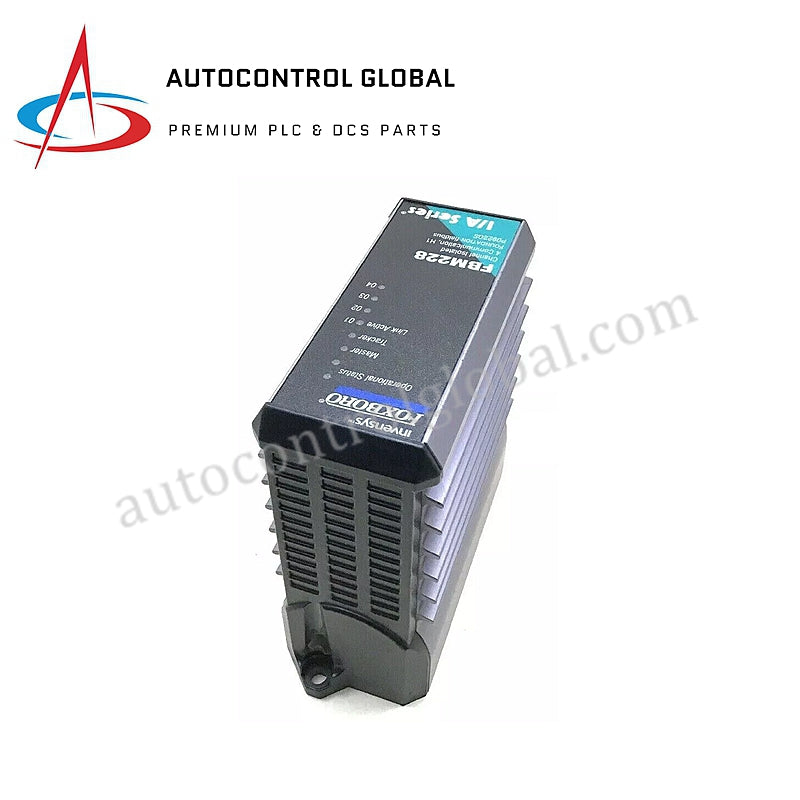

The Foxboro FBM228 FOUNDATION Fieldbus module is designed to meet demanding industrial requirements. With efficient power management, excellent environmental tolerance, and rugged physical design, the module is ideal for reliable data communications and system control.

Power Requirements

• Input Voltage Range 24 V DC: 24 V DC +5%, -10%

• Consumption :

• P0922QS: 5.0 W (maximum)

• RH101SF: 3.8 W (maximum)

• Heat Dissipation :

• P0922QS: 5.0 W

• RH101SF: 3.8 W

Environmental Specifications

Operating Conditions

• Altitude/Temperature :

• -300 to +914 m (-1,000 to +3,000 ft): -20 to +70°C (-4 to +158°F)

• +915 to +3,000 m (+3,000 to +10,000 ft): -20 to +60°C (-4 to +140°F)

• -300 to +12,000 m (-1,000 to +40,000 ft): -40 to +70°C (-40 to +158°F)

• Relative Humidity : 5 to 95% (non-condensing)

• Contamination : Suitable for use in Class G3 (Harsh) environments as defined in ISA Standard S71.04, based on exposure testing according to EIA Standard 364-65, Class III.

• Vibration : 7.5 m/s² (0.75 g) from 5 to 500 Hz

Physical Specifications

• Mounting :

• The FBM228 mounts on a baseplate.

• The baseplate can be mounted on a DIN rail (horizontally or vertically), or horizontally mounted on a 19-inch rack using a mounting kit.

• See Standard 200 Series Baseplates (PSS 41H2SBASPLT) for details.

• Weight : 284 g (10 oz) approximate (each module)

• Dimensions :

• Height: 102 mm (4 in), 114 mm (4.5 in) including mounting lugs

• Width: 45 mm (1.75 in)

• Depth: 104 mm (4.11 in)
