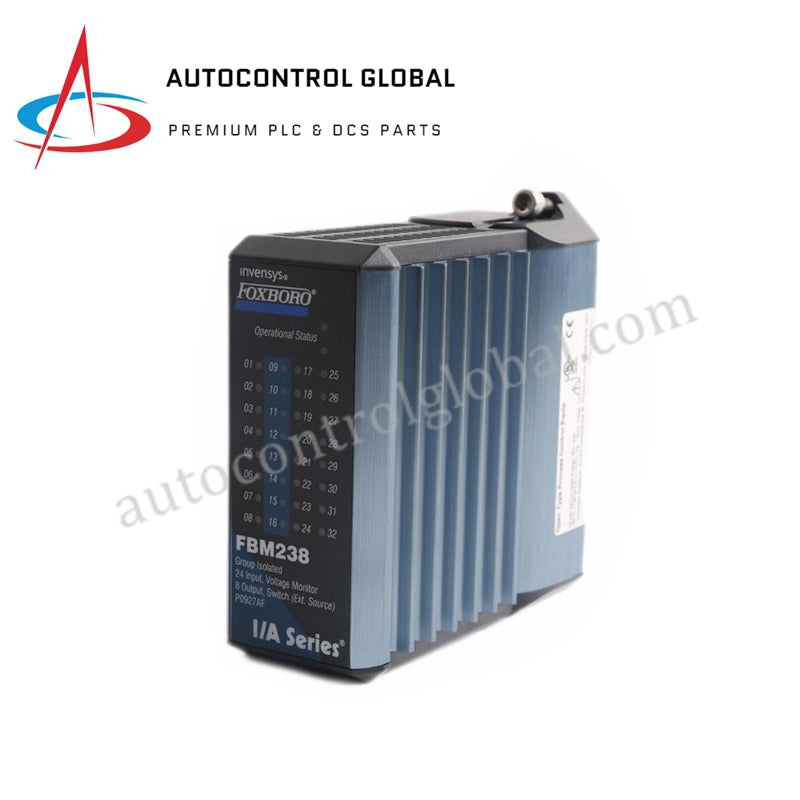

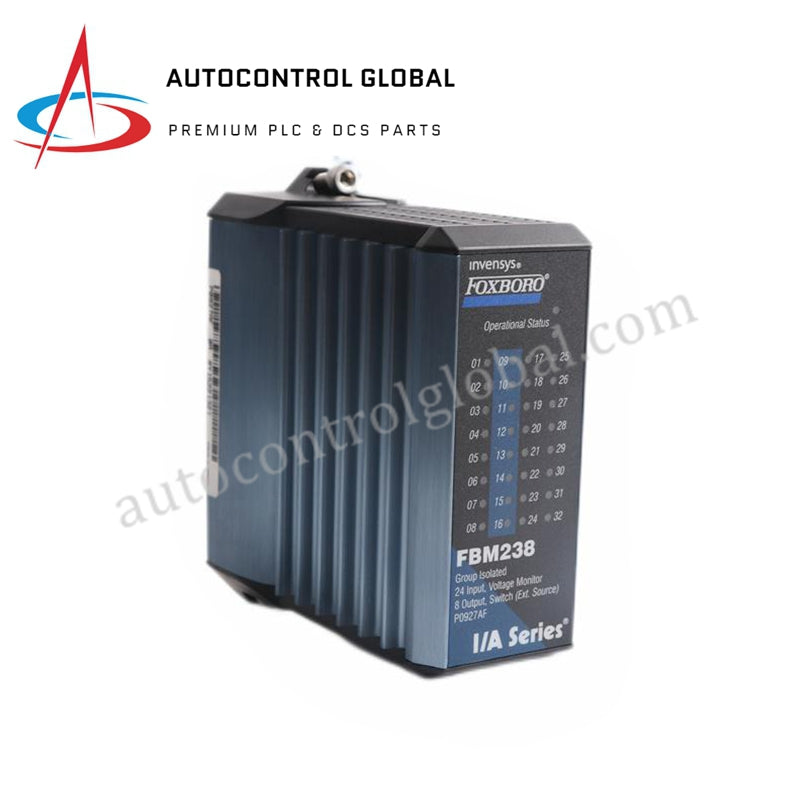

FBM238 | Foxboro | Discrete 24DI/8DO Interface Module
Manufacturer: Foxboro
-
Part Number: FBM238
Condition：New with Original Package
Product Type: Discrete 24DI/8DO Interface Module
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Description
The FBM238 Discrete Interface Module from Foxboro provides reliable and flexible I/O capabilities, featuring 24 digital inputs and 8 digital outputs, ideal for industrial automation environments.
General Information
-
Brand: Foxboro
-
Module Type: Discrete 24DI/8DO Interface Module
-
Part Number: FBM238
Specifications
-
Digital Inputs: 24 group isolated channels
-
Digital Outputs: 8 group isolated channels
-
Filter/Debounce Time: Configurable (No Filtering, 4, 8, 16, or 32 ms)
-
Communication: Fieldbus communication with associated FCM or FCP
Electrical Requirements
-
Input Voltage Range: 24 V DC +5%, -10%
-
Module Consumption: 2.65 W (maximum) at 24 V DC
-
Heat Dissipation: 5.3 W (maximum) at 2 A total load and all inputs at 30 V DC
Physical Dimensions
-
Height: 102 mm (4 in), 114 mm (4.5 in including mounting lugs)
-
Width: 45 mm (1.75 in)
-
Depth: 104 mm (4.11 in)
Calibration
-
Calibration Requirements: None required for module operation
