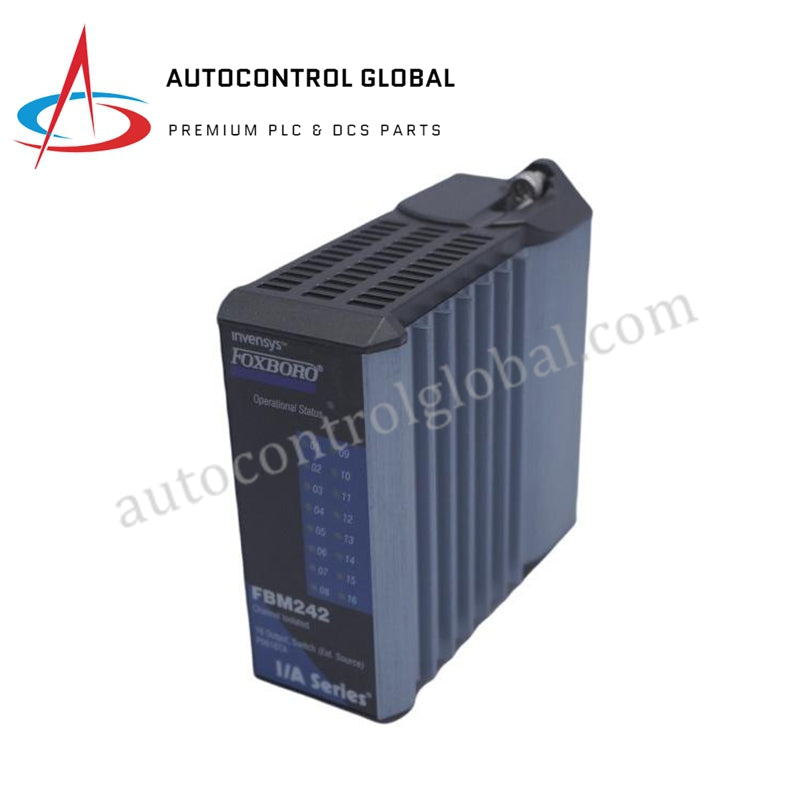

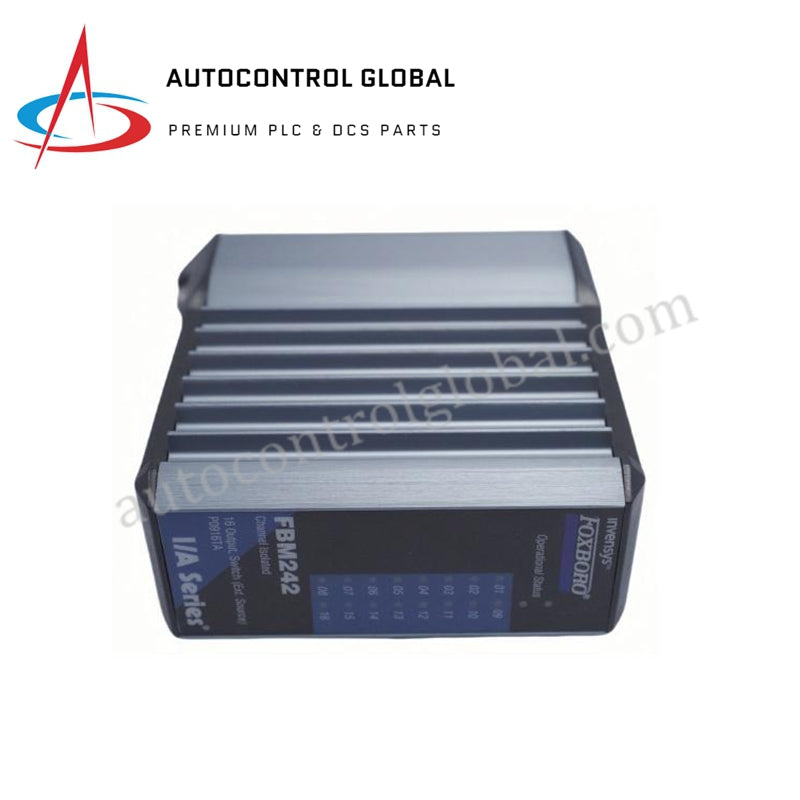

FBM242 | Foxboro Discrete Output Module
FBM242 | Foxboro Discrete Output Module
/ 2

FBM242 | Foxboro Discrete Output Module

  • Manufacturer: Foxboro

  • Part Number: FBM242

  • Condition：New with Original Package

  • Product Type: Discrete Output Module

  • Country of Origin: USA

  • Payment:T/T, Western Union

  • Shipping port: Xiamen

  • Warranty: 12 months

Description

FBM242 is a Discrete Output Module by Foxboro, designed for industrial automation systems with sixteen isolated output channels. It ensures reliable performance for controlling various field devices with different load characteristics.

Output Specifications

  • Output Channels: 16 isolated channels

  • Applied Voltage: 15 to 60 V dc (maximum)

  • Load Current: 2.25 A (maximum) per channel

  • Load Current-In-Rush: 8 A (maximum) for 20 ms per channel at 30°C

  • Load Current-In-Rush (at 70°C): 6.4 A (maximum) for 20 ms per channel

  • On-State Voltage Drop: 0.2 V (maximum) at 2.25 A

  • Off-State Leakage Current: 0.1 mA (maximum)

  • Inductive Loads: Requires protective diode or MOV across the load

  • Output Channel Isolation: Each channel is galvanically isolated from all others and ground, withstands 600 V ac for one minute
