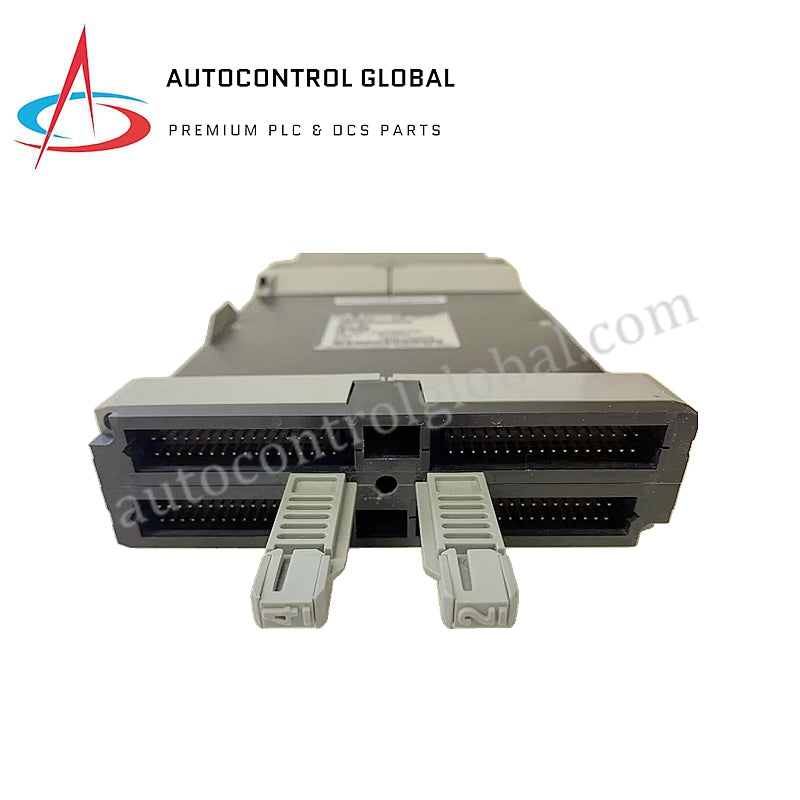

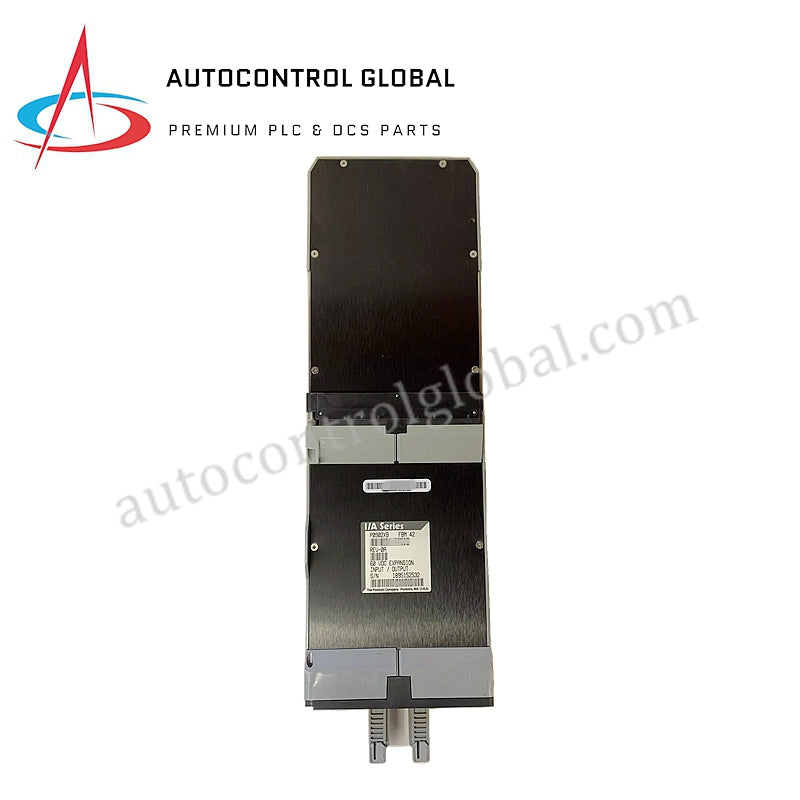

FBM42 P0902XB | Foxboro | Input Output Interface Module

Description

The FBM42 P0902XB Input/Output Interface Module from Foxboro is designed for rugged industrial environments, offering robust isolation, flexible power options, and clear operational indicators, making it ideal for advanced process control systems.

General Information

• Brand: Foxboro

• Module Type: Input/Output Interface Module

• Part Number: FBM42 P0902XB

Specifications

• Isolation: Withstands 600 V AC for 1 minute between any channel and ground or between channels

• Power Requirements:

• Main Module Only: 13 W (maximum)

• Main Module + Expansion Module: 23 W (maximum)

• Main Module Only: 9 W (maximum)

• Main Module + Expansion Module: 15 W (maximum)

• Input Voltage Range (Redundant): 26 to 42 V DC

• Consumption:

• Heat Dissipation:

Indicators

• Operational Status: 2 LED indicators (1 red, 1 green)

• Input Channel Status: 8 LED indicators (1 per channel)

• Output Channel Status: 8 LED indicators (1 per channel)

Field Termination Connections

• Discrete Wire Blocks: 32 screw-clamp terminals (2 blocks, 16 terminals each)

• Plug Connector Block: 34-pin connector (compatible with Burndy MSD 34 PM 118, MSD 34 PM 124, MSD 34 PM 824, or equivalent)

• Direct Connection Block: 32 screw-clamp terminals

Communication

• Fieldbus: Redundant communication via the main module only
