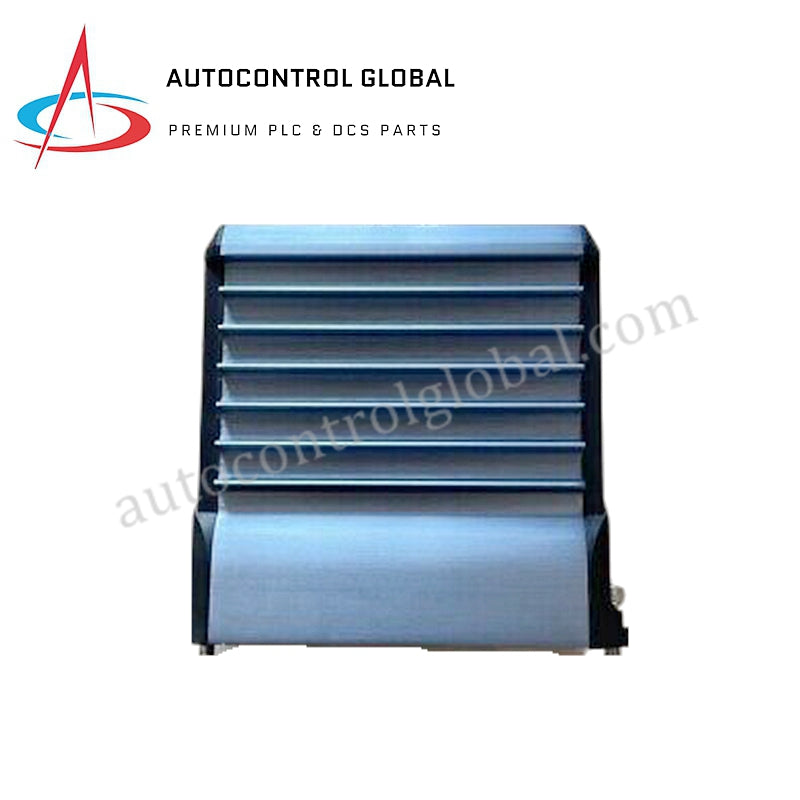

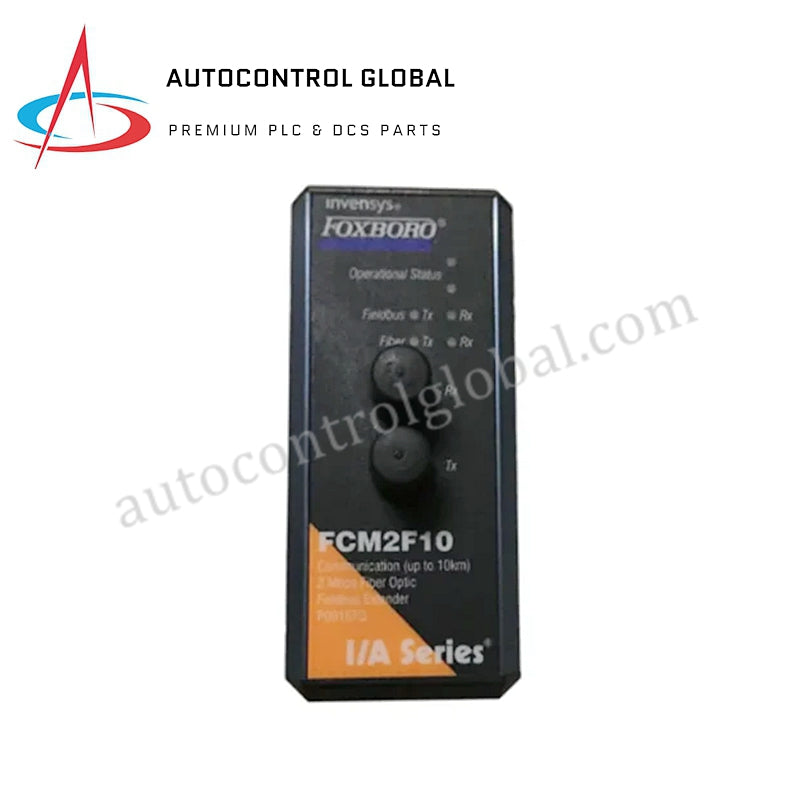

FCM2F10 P0916TQ Foxboro Fieldbus Communications Module

Description

The Foxboro FCM2F10 Fieldbus Communications Module provides robust communication capabilities for process control systems. Designed for reliable operation in challenging environments, it ensures seamless integration into fieldbus-based networks with a focus on power efficiency and durability.

General Information

• Brand: Foxboro

• Module Type: Fieldbus Communications Module

• Part Number: FCM2F10

• Power Requirements:

• Input Voltage Range (Redundant): 24 V DC ±5%, -10%

• Consumption: 5 W (maximum)

• Heat Dissipation: 5 W (maximum)

• Vibration Resistance: 0.75 g (5 to 200 Hz)

Environmental Conditions

• Operating Temperature:

• -20 to +70°C (-4 to +158°F)

• Storage Temperature:

• -40 to +70°C (-40 to +158°F)

• Relative Humidity:

• 5 to 95% (non-condensing)

• Altitude:

• Operating: -300 to +3,000 m (-1,000 to +10,000 ft)

• Storage: -300 to +12,000 m (-1,000 to +40,000 ft)

Calibration

• Calibration Requirements:

• No calibration required for the module
