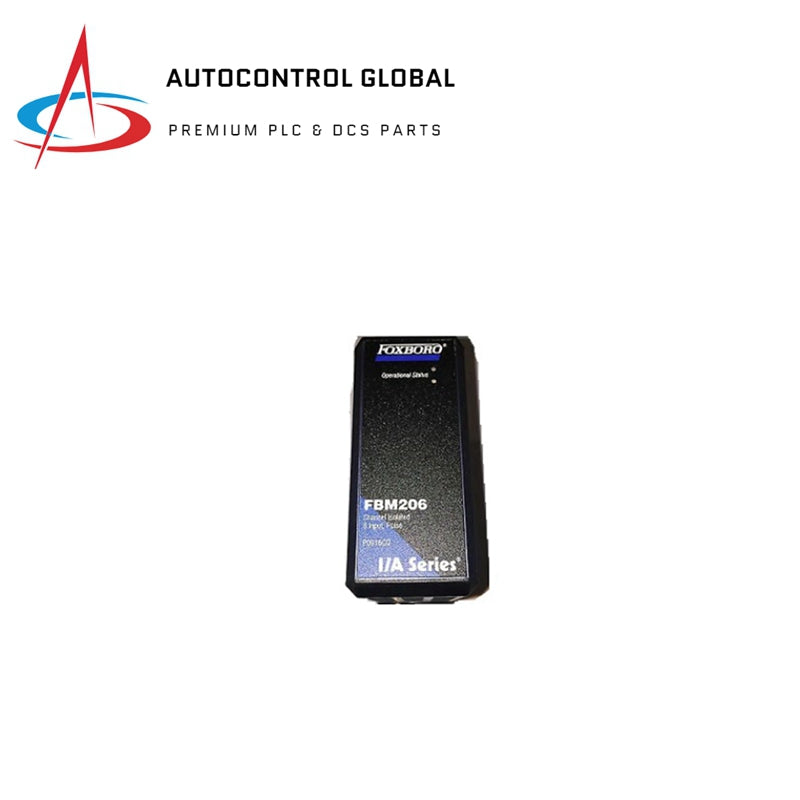

Foxboro FBM206 P0916CQ Pulse I/O Interface Modules

Description

The measurement of machine speed is typically accomplished using a device that transmits high-speed pulses. The FBM206 provides the capability to accept up to eight pulse signals (up to 25kHz) and delivers these values to the Foxboro™ distributed control system. The FBM206b can accept up to four pulse inputs and provide up to four 0 to 20 mA outputs for related control.

Key Specifications

• For FBM206, eight configurable pulse input channels with 7 to 27 V DC.
• For FBM206b, four configurable pulse input channels with 7 to 27 V DC and four 0 to 20 mA analog output channels.
• Each input channel accepts pulse inputs with a maximum rate of 25 kHz.
• Each channel is electrically isolated from other channels and ground.
• Robust design suitable for enclosures in G3 (harsh) environments.
• Configurable options for performing pulse input applications, including pulse rate totalization and resolution (based on each module).

Technical Details:

• Model: FBM206
• Brand: FOXBORO
• Part Number: FBM206
• Manufacturer: FOXBORO
• Dimensions: 4.5 cm x 11.5 cm x 11 cm
• Weight: 0.3 kg
