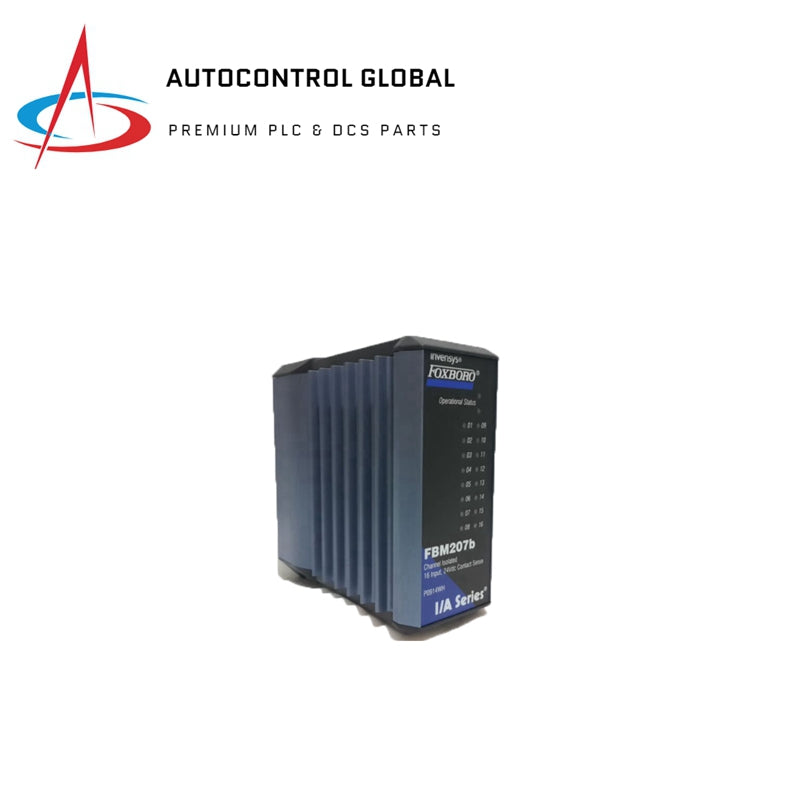

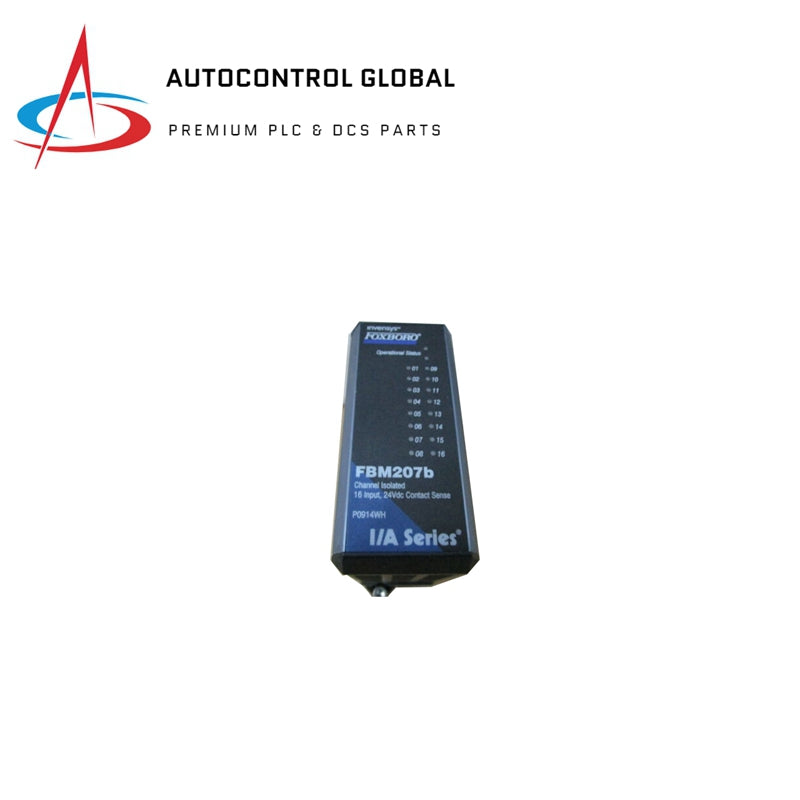

Foxboro FBM207b Voltage Monitor/Contact Sense Input Module

Description

The Compact FBM207b Contact Sense Input Interface Module functions as a 16-channel contact sensor designed for 24 V dc inputs. Each channel can accommodate a pair of contacts or solid-state switches. It is part of the Compact 200 Series I/O subsystem.

Features

• Sixteen Discrete Inputs: 24 V dc contact sense.
• Galvanically Isolated: Each input is isolated for enhanced reliability.
• Single or Redundant Modules: Offers flexibility in module configuration.
• Compact, Rugged Design: Suitable for enclosures in Class G3 (harsh) environments.
• Program Execution: Capable of executing programs for Discrete Input, Ladder Logic, Pulse Count, and Sequence of Events with configurable Input Filter Time.
• Termination Assemblies (TAs): Available for local or remote field wiring connections to the Compact FBM207b.

Specifications

• Series: I/A Series
• Product Type: Voltage Monitor / Contact Sense Input Modules
• Input: 16 isolated and independent channels
• Dimensions (L x W x H): 10.4 cm x 4.5 cm x 11.4 cm
• Weight: 0.284 kg
• Power Supply: 24V DC
• Communication: RS485
• Temperature Range: -40°C to 85°C
• Accuracy: ±0.1%
