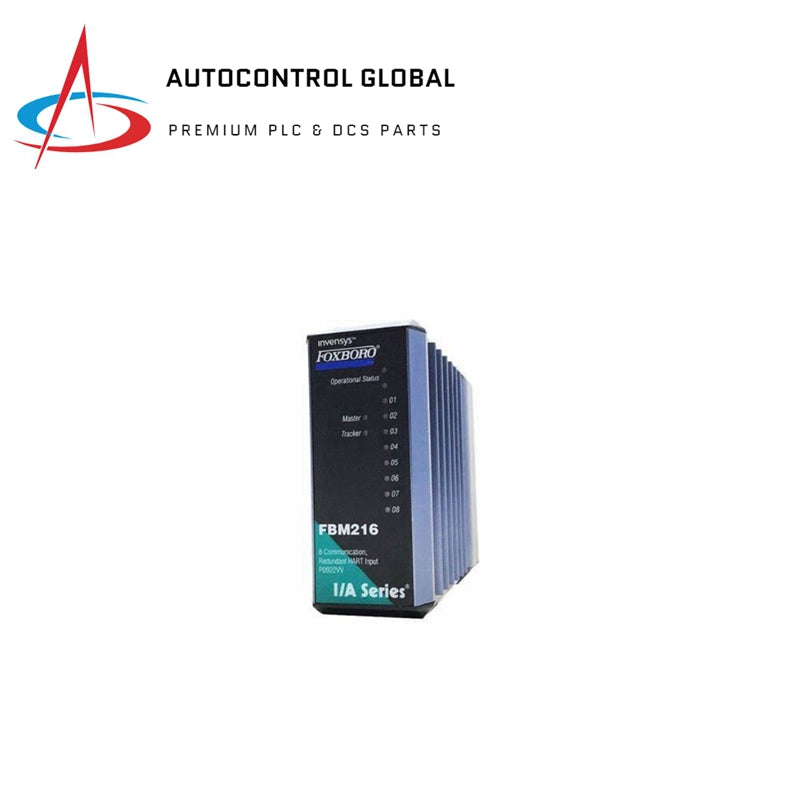

Foxboro FBM216 P0922VV Redundant Input Interface Module

Description

The FBM216 P0922VV module is designed to interface with field devices such as pressure or temperature transmitters that utilize the 0-20mA current loop for signal transmission. It provides redundant functionality with two independent channels for each input.

Features

• Redundant Input Interface: Offers redundancy at the fieldbus module (FBM) level.
• HART Communication: Acts as a HART communications field device host, enabling the Foxboro system to request and receive two digital messages per second from each field device.
• Isolated Power Supplies: Provides individually isolated power supplies for each of its eight channels.
• High Accuracy: Incorporates a Sigma-Delta converter capable of providing new analog input values for each channel every 100 milliseconds.

Specifications

• Manufacturer: Foxboro
• Product Type: Redundant Input Interface Module
• Number of Channels: 8
• Input Signal Range: 0-20mA
• Communication Protocol: HART
• Power Supply: 24V DC
• Operating Temperature Range: -40°C to 85°C
